Antrica SpotBox4K ANT-37100 User Manual
4k poe multiple onvif camera decoder & multi viewer
Hide thumbs
Also See for SpotBox4K ANT-37100:
- Quick start manual (8 pages) ,
- User manual (18 pages) ,
- Quick start manual (12 pages)
Related Manuals for Antrica SpotBox4K ANT-37100
Summary of Contents for Antrica SpotBox4K ANT-37100

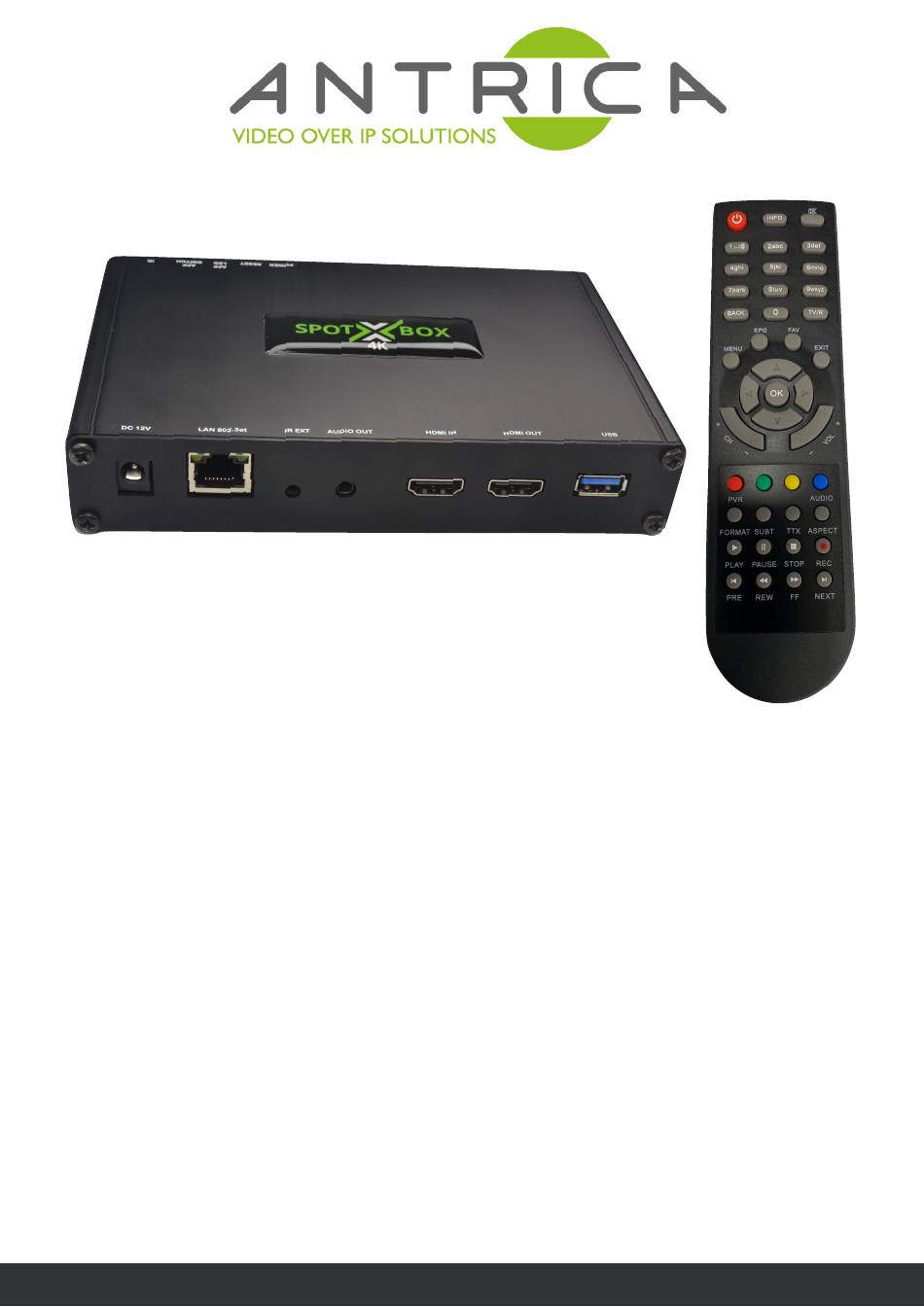

- Page 1 SpotBox4K PoE Multiple ONVIF Camera Decoder & Multi viewer ANT-37100 User Manual Firmware X.X.X dated 24th February 2022 www.antrica.com Page PN: ANT-37500 www.antrica.com Version: 2.0...
- Page 2 How Spotbox uses ONVIF profiles automatically in each Grid mode 15 System System information , firmware , reboot , reset and config settings 16 Remote Control IR Remote Control buttons and functions 17 FAQs Usefull information and FAQs 18 Support Support details & API Document www.antrica.com Page...
- Page 3 A. Remote Control F. USA Plug adapter B. Spotbox4K- ANT-37100 G. China Australia Plug adapter. C. HDMI cable H. EU adapter D. 110-240v AC to 12v DC PSU E. UK plug adapter NOT IN BOX: Ethernet cable ANT-37500 www.antrica.com Page...
- Page 4 LAN port 5V DC HDMI [1.4] USB port HDMI [1.4] USB-C Output Port Input Port Power Input IR INPUT Power ON Reset AP LED Ap Switch Port Button AP SWITCH and HDMI Input reserved for future use ANT-37500 www.antrica.com Page...
- Page 5 SpotBox- System Connections 4K or 1080P Monitor Not supplied IR Remote Control Supplied HDMI Cable Not supplied 12v Power Adapter Lan Cable Supplied Not supplied Also PoE powered Network ANT-37500 www.antrica.com Page...
- Page 6 IMPORTANT: PLEASE ENSURE HDMI IS PLUGGED IN AND CONNECTED TO A MONITOR BEFORE BOOTING. HDMI AUTO DETECTION MAY NOT CORRECTLY DETECT THE MONITOR IN SOME CASES IF NOT PLUGGED IN DURING BOOT UP. FUTURE FIRMWARE UPDATES WILL AIM TO RESOLVE THIS. ANT-37500 www.antrica.com Page...
- Page 7 Camera Switching Mode allows up to 32 cameras (depending on their resolution) to be displayed sequentially. DEFAULT GRID MODE Here you can select which display mode the screen defaults to when it is re-booted / goes into ‘boot mode’. ANT-37500 www.antrica.com Page...
- Page 8 Gateway: the router Gateway IP address DNS: Domain Name Server IP address if used. NTP: If using an NTP time server this is its IP address. This will help to sync cameras assuming they use NTP as well ANT-37500 www.antrica.com Page...
- Page 9 PROTOCOL: Default or select UDP or TCP for streaming AUDIO: Enable or Disable (default) Only one audio channel will be heard for each grid view and this will be the camera in the top left of the screen ANT-37500 www.antrica.com Page...
- Page 10 2x2, 720P in 3x3 but when you view 4x4 it will say on screen NO PROFILE. This is because there were no profiles with low enough resolution selected to be shown in 4x4 mode. (480P max) ANT-37500 www.antrica.com Page...
- Page 11 To select a different LCD resolution manually select the desired resolution and click (APPLY-bottom of page-not shown here). Resolutions displayed are supported by the connected LCD . 4K resolutions only show when a 4K monitor is used. Note: changing resolution may cause the Spotbox to reboot. ANT-37500 www.antrica.com Page...
- Page 12 Authenticated) Username: If authenticated add user name here Password: If authenticated add password here. NETWORK CAMERAS - SEARCH (FOR ONVIF CAMERAS) Click the Search button and ONVIF cameras which are discoverable will be displayed as shown here ANT-37500 www.antrica.com Page...
- Page 13 Query to find the ONVIF profiles for this camera SAVE The camera profiles are ticked by default . If you click save this camera is saved in Position C1 and BOTH profiles are saved internally in Spotbox. ANT-37500 www.antrica.com Page...
- Page 14 3x3 and 4x4 mode n.b if you wish to view multiple cameras in full 4K max resolution you select them using the 1x1 grid mode and they will cycle through in full screen mode at full resolution. ANT-37500 www.antrica.com Page...
- Page 15 System: Changing login password - Type a new Password then repeat and click UPDATE.This will set a new password for admin. For the time being user name is always admin and cannot be changed. ANT-37500 www.antrica.com Page...
- Page 16 LOAD UPDATE. Do not remove power, restart or reboot until the firmware upgrade process has fully completed. Doing so may corrupt the firmware. You will see an Antrica logo page with the words UPDATE COMPLETE-REBOOT SYSTEM. If this splash screen does not appear do the following:...
- Page 17 2x2,3x3 to 4x4 1x1 and back MENU button displays ethernet IP address and Firmware Version LEFT RIGHT buttons in FULL SCREEN mode allow you to switch from camera to camera Factory Default: Press and hold this button whilst powering up the ANT-37500 www.antrica.com Page...
- Page 18 However there may be various Beta releases of this firmware which are identified by a release date e.g FW1.0.6 release 15th June 2017 Please always check with support@antrica.com which is the latest release This manual is written for a 18th October 2017 release version of 1.0.8 Please also refer to www.spotbox4k.com where we will post relevant updates / FAQ’s and tuition videos.
- Page 19 However there may be various Beta releases of this firmware which are identified by a release date e.g FW1.0.6 release 15th June 2017 Please always check with support@antrica.com which is the latest release This manual is written for a 18th October 2017 release version of 1.0.8 Please also refer to www.spotbox4k.com where we will post relevant updates / FAQ’s and tuition videos.
- Page 20 2x2 screen : 1920 x 1080 P30 3x3 screen : 1280 x720 P30 4x4 screen : 640 x480 P30 Contact support@antrica.com or visit www.spotbox4k.com / www.antrica.com UK +44 1628 626098 Option 3 HTTP API Document Available on Request ANT-37500 www.antrica.com...
