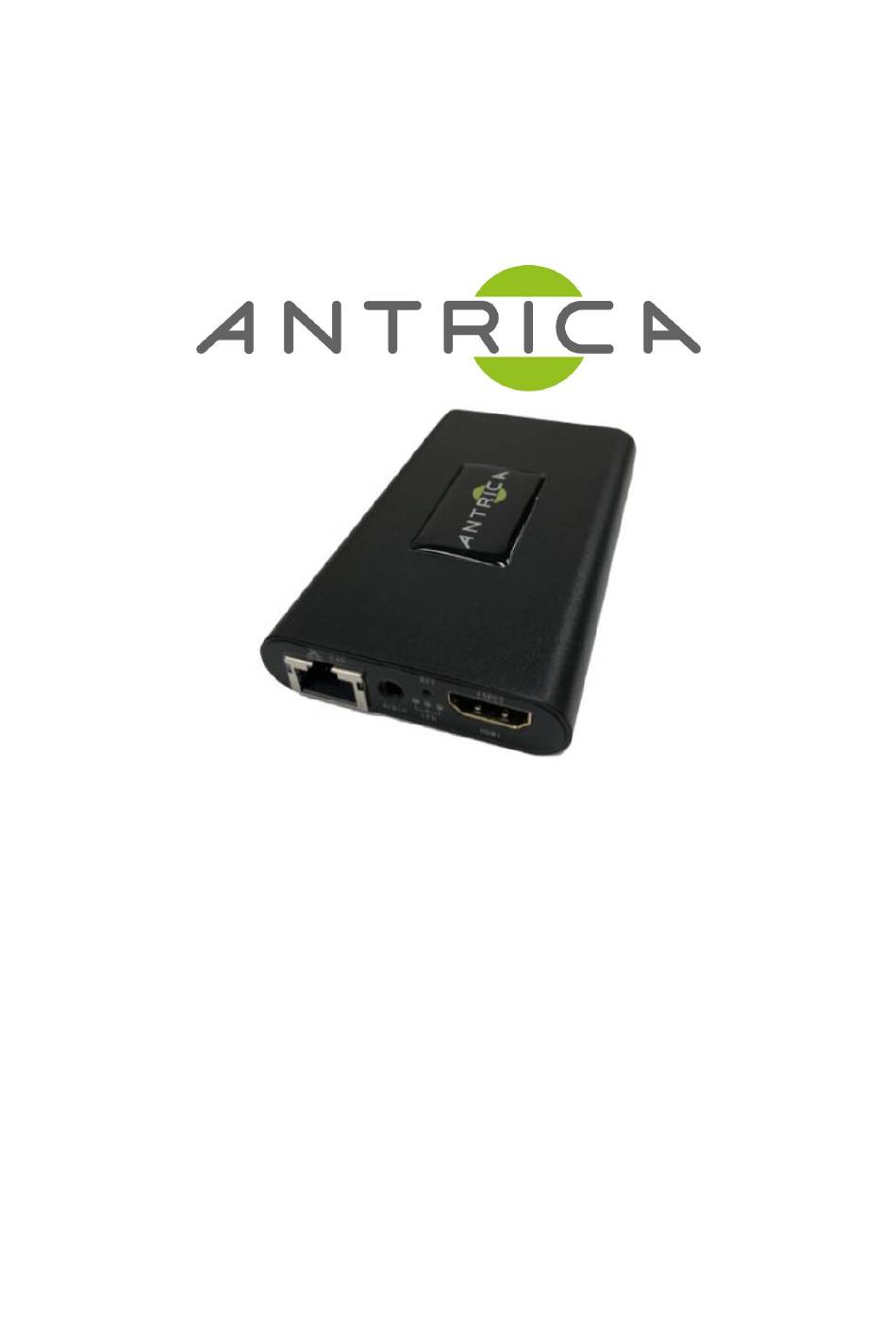

- Page 1 ANT-2400 Quick Start Guide Page 1 of 6 6 Mar 2018...
- Page 2 ANT-2400 Quick Start_v1.2.docx Default IP - 192.168.1.168 Entering Configuration settings in Internet Explorer - Username & Password are admin as shown below. RTSP SETUP 1) Select HDMI main on the navigational bar (shown below), to configure the input HDMI settings for the main stream.
- Page 3 ANT-2400 Quick Start_v1.2.docx 2) To setup the RTSP streaming, amend the following (reboots may be required for settings to take effect) select required codec; H264 or H265 Encoded resolution: options are auto or manually selected resolutions Bitrate Frame rate; ideally output rate should...
- Page 4 ANT-2400 Quick Start_v1.2.docx 3) To decode the stream with VLC, Open Network Stream and type the URL rtsp://<ipaddress>:<port>/hdmi (e.g rtsp://192.168.1.168:554/hdmi) MPEG-TS SETUP 1) To setup multicast streaming, you need to first enable multicast in the HDMI main settings. 2) After enabling the multicast streaming, and configuring your multicast address and port...
- Page 5 ANT-2400 Quick Start_v1.2.docx 3) To open the stream in VLC player, Open Network Stream, and enter your multicast URL address (as shown below). udp://@227.2.2.7:1234 STATUS INFORMATION 1) To see the URL to put into VLC, and the input resolution and frame rate go to the Status page.
- Page 6 ANT-2400 Quick Start_v1.2.docx For further support please visit: www.antrica.com support@antrica.com +44 1628 626098 Page 6 of 6 6 Mar 2018...
