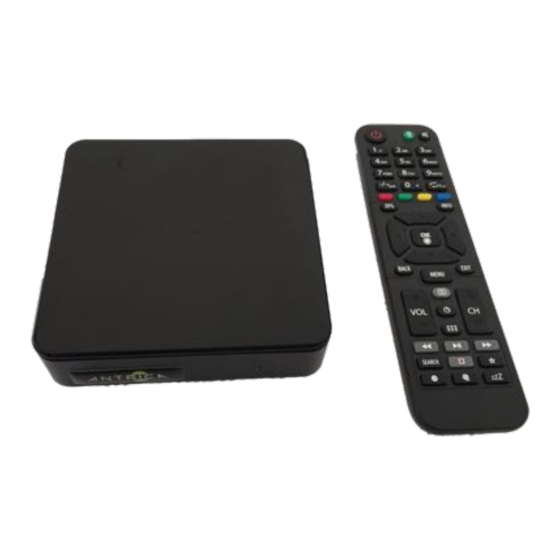

Antrica SpotBox4K ANT-37000A User Manual
32 onvif camera decoder & multi viewer
Hide thumbs
Also See for SpotBox4K ANT-37000A:
- Quick start manual (8 pages) ,
- Quick start manual (12 pages) ,
- User manual (20 pages)
Related Manuals for Antrica SpotBox4K ANT-37000A
Summary of Contents for Antrica SpotBox4K ANT-37000A

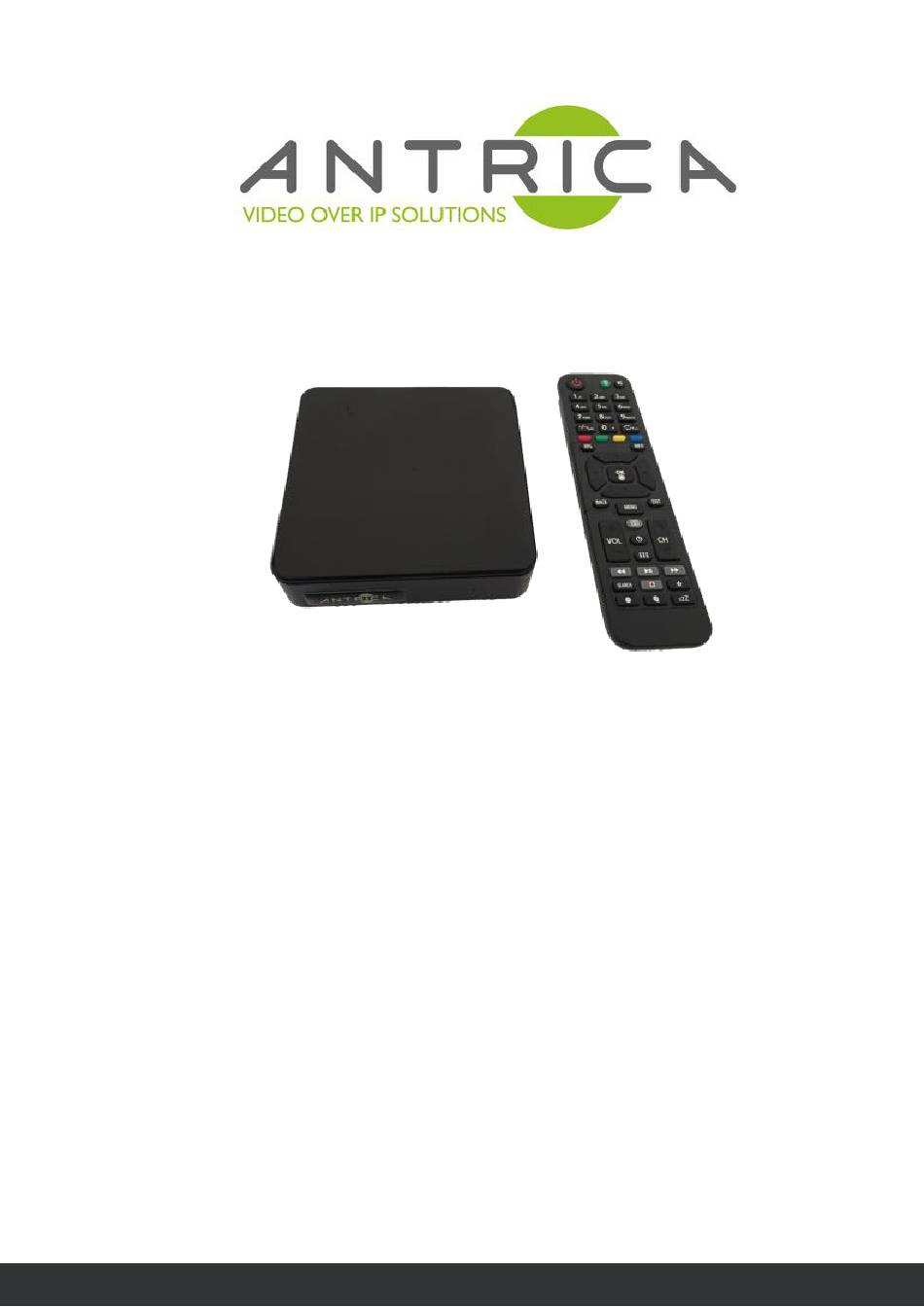

- Page 1 SpotBox4K 32 ONVIF Camera Decoder & Multi viewer User Manual Firmware 1.0.6 dated 15th June 2017 www.antrica.com Page PN: ANT-37000 www.antrica.com Version: 2.0...
- Page 2 How Spotbox uses ONVIF profiles automatically in each Grid mode 15 System System information , firmware , reboot , reset and config settings 16 Remote Control IR Remote Control buttons and functions 17 FAQs Usefull information and FAQs 18 Support Support details & API Document www.antrica.com Page...
- Page 3 G. Euro Plug adapter C. Remote Control H. China Australia Plug adapter D. AAA Batteries for Remote I. USA plug adapter E. 12v Power Converter 110-240 AC J. IR extender cable for Remote NOT IN BOX: Ethernet cable ANT-37000 www.antrica.com Page...
- Page 4 SpotBox Port Interface S/PDIF [digital audio] Port Not used RJ-45 Ethernet HDMI [1.4] LAN port Port IR Extender AV port USB [2.0] DC 12V Port Not Used Port ANT-37000 www.antrica.com Page...
- Page 5 SpotBox- System Connections 12v Power Adapter Supplied 4K or 1080P Monitor Not supplied HDMI Cable supplied Lan Cable IR Extender Cable Not supplied supplied Network Reserved for future use ANT-37000 www.antrica.com Page...
- Page 6 Also you can press MENU on IR Remote to see the IP address and firmware version also NOTE: Please delete browser history and clear browser cache in case of issues where you cannot see buttons or difficulty saving changes. The default login credential for the Spotbox4k : username - admin password - admin ANT-37000 www.antrica.com Page...
- Page 7 Shows the time in seconds the camera is displayed for, if multiple cameras are selected for the same position (Camera switching Mode). Camera Switching Mode allows up to 32 cameras (depending on their resolution) to be displayed sequentially ANT-37000 www.antrica.com Page...
- Page 8 Gateway: the router Gateway IP address DNS: Domain Name Server IP address if used. NTP: If using an NTP time server this is its IP address. This will help to sync cameras assuming they use NTP as well ANT-37000 www.antrica.com Page...
- Page 9 TIMEOUT: Number of seconds the decoder waits before trying a reconnect if a stream temporarily drops out RESTART: Number of minutes the decoder waits before restarting a stream automatically. GRID 2x2 ,3x3,4x4 : Grid number this camera will be displayed in. ANT-37000 www.antrica.com Page...
- Page 10 1080P will be in 2x2, 720P in 3x3 but when you view 4x4 it will say on screen NO PROFILE. This is because there were no profiles with low enough resolution selected to be shown in 4x4 mode. (480P max) ANT-37000 www.antrica.com Page...
- Page 11 To select a different LCD resolution manually select the desired resolution and click (APPLY-bottom of page-not shown here). Resolutions displayed are supported by the connected LCD . 4K resolutions only show when a 4K monitor is used. Note: changing resolution may cause the Spotbox to reboot. ANT-37000 www.antrica.com Page...
- Page 12 Authenticated) Username: If authenticated add user name here Password: If authenticated add password here. NETWORK CAMERAS - SEARCH (FOR ONVIF CAMERAS) Click the Search button and ONVIF cameras which are discoverable will be displayed as shown here ANT-37000 www.antrica.com Page...
- Page 13 Query to find the ONVIF profiles for this camera SAVE The camera profiles are ticked by default . If you click save this camera is saved in Position C1 and BOTH profiles are saved internally in Spotbox. ANT-37000 www.antrica.com Page...
- Page 14 Example2: Camera C2 with Profile 1=1080P and Profile 2= 480P In this example Profile 1 will show in 2x2 and full screen mode and profile 2 will be used in both 3x3 and 4x4 mode ANT-37000 www.antrica.com Page...
- Page 15 LOAD UPDATE. Do not remove power, restart or reboot until the firmware upgrade process has fully completed. Doing so may corrupt the firmware. You will see an Antrica logo page with the words UPDATE COMPLETE-REBOOT SYSTEM. If this splash screen does not appear do the following: Wait 5 minutes and reboot system Splash screen with Logo should appear ,followed by a quad display on screen.
- Page 16 OFF. To turn ON Press and hold for 3-4 seconds then release…wait 10 seconds for the MENU button displays Antrica screen to ethernet IP address appear. and Firmware Version Up Down buttons change views from 2x2,3x3 to 4x4 and...
- Page 17 However there may be various Beta releases of this firmware which are identified by a release date e.g FW1.0.6 release 15th June 2017 Please always check with support@antrica.com which is the latest release This manual is written for a 15th June 2017 release version of 1.0.6 ANT-37000 www.antrica.com...
- Page 18 SUPPORT Contact support@antrica.com or visit www.spotbox4k.com / www.antrica.com UK +44 1628 626098 Option 3 HTTP API Document Available on Request ANT-37000 www.antrica.com Page...
