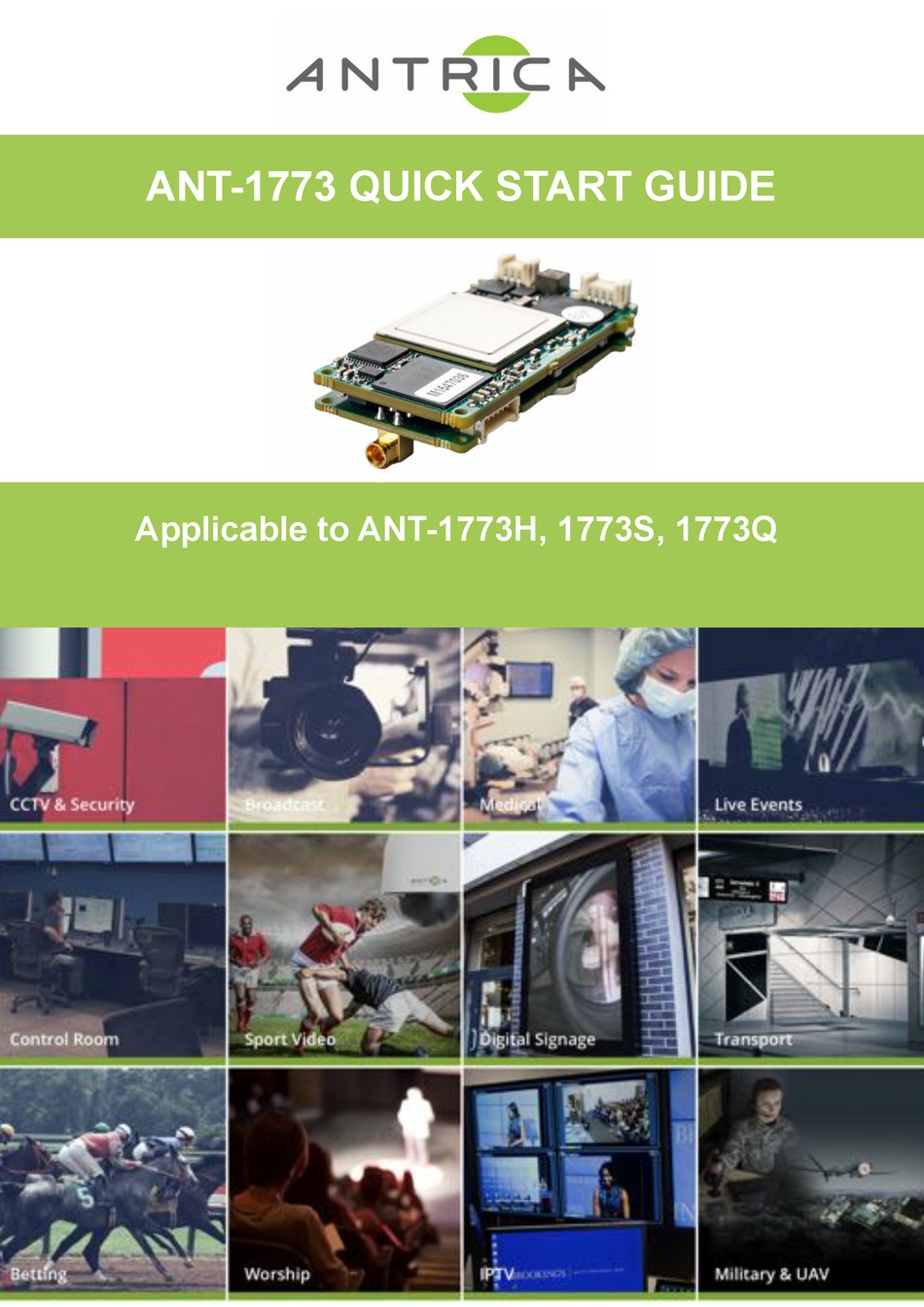

ANT-1773 QUICK START GUIDE
Applicable to ANT-1773H, 1773S, 1773Q
Antrica Quick Start Guide
ANT-1773x Series V12018
Page ! 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANT-1773 and is the answer not in the manual?

Questions and answers

Summary of Contents for Antrica ANT-1773

  • Page 1 ANT-1773 QUICK START GUIDE Applicable to ANT-1773H, 1773S, 1773Q Antrica Quick Start Guide ANT-1773x Series V12018 Page ! 1...
  • Page 2 3.1 Settings/System 3.3 Settings/System/CSI1 or CSI2 3.4 Settings/System/RTSP Server 3.5 Settings/ Mux Setup 4. Home/Streaming 4.1 URL’s for VLC player 5. Help and Further Support 5.1 ONVIF Support 5.2 Other Information Antrica Quick Start Guide ANT-1773x Series V12018 Page ! 2...

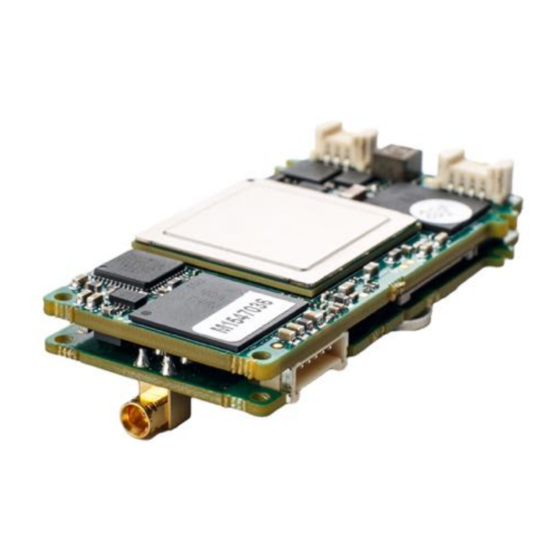

  • Page 3 The ANT-1773 is a Universal miniature Encoder for UAV and other applications where size is required to be small. Low latency and multiple inputs are supported. The ANT-1773 has 3 variants HDMI(H) HDSDI(S) and Quad Composite(Q) Some of the settings will vary slightly depending on which version and also which firmware.
  • Page 4 SD + SD (ANT-1773Q). Further details below section 3.3 RTSP Server: Allows the server to be turned on and Port allocated ONVIF: Allows ONVIF discovery to be turned on or off Network: Changes Network settings Antrica Quick Start Guide ANT-1773x Series V12018 Page ! 4...
  • Page 5 Select the appropriate input depending which module you have Both showing locked means the board is detecting video on these two inputs 3.4 Setting/System/RTSPServer Enable RTSP server and select port 554 or whatever you need Page ! 5 Antrica Quick Start Guide ANT-1773x Series V12018...
  • Page 6 MUX SETUP is used to setup 4 individual streams & H264 codec functions, like bit rate, frame rate, GOP etc. Select MUX1 2,3 or 4 for each of the 4 streams as these settings can be different for each stream. 4.0 Home/ Streaming Antrica Quick Start Guide ANT-1773x Series V12018 Page ! 6...
  • Page 7 CSI-2-CH0 (channel zero) in this example (see below) is assigned to the HDMI/ HDSDI or Quad SD input. To check this, click the information i button. The example here shows RTSP streaming using CSI-2 CH0 as video source (The IP address and Antrica Quick Start Guide ANT-1773x Series V12018 Page ! 7...
  • Page 8 NOT fully ONVIF S or G compliant but can discover ONVIF devices. 5.2 Other Information Please visit our website www.antrica.com and browse to the product page (e.g ANT-1773x) where you can find a DOWNLOADS SECTION : - NEPTUNE PLAYER : Low latency player for the ANT-177X series free to use...
