Related Manuals for Antrica ANT-35000A
Summary of Contents for Antrica ANT-35000A

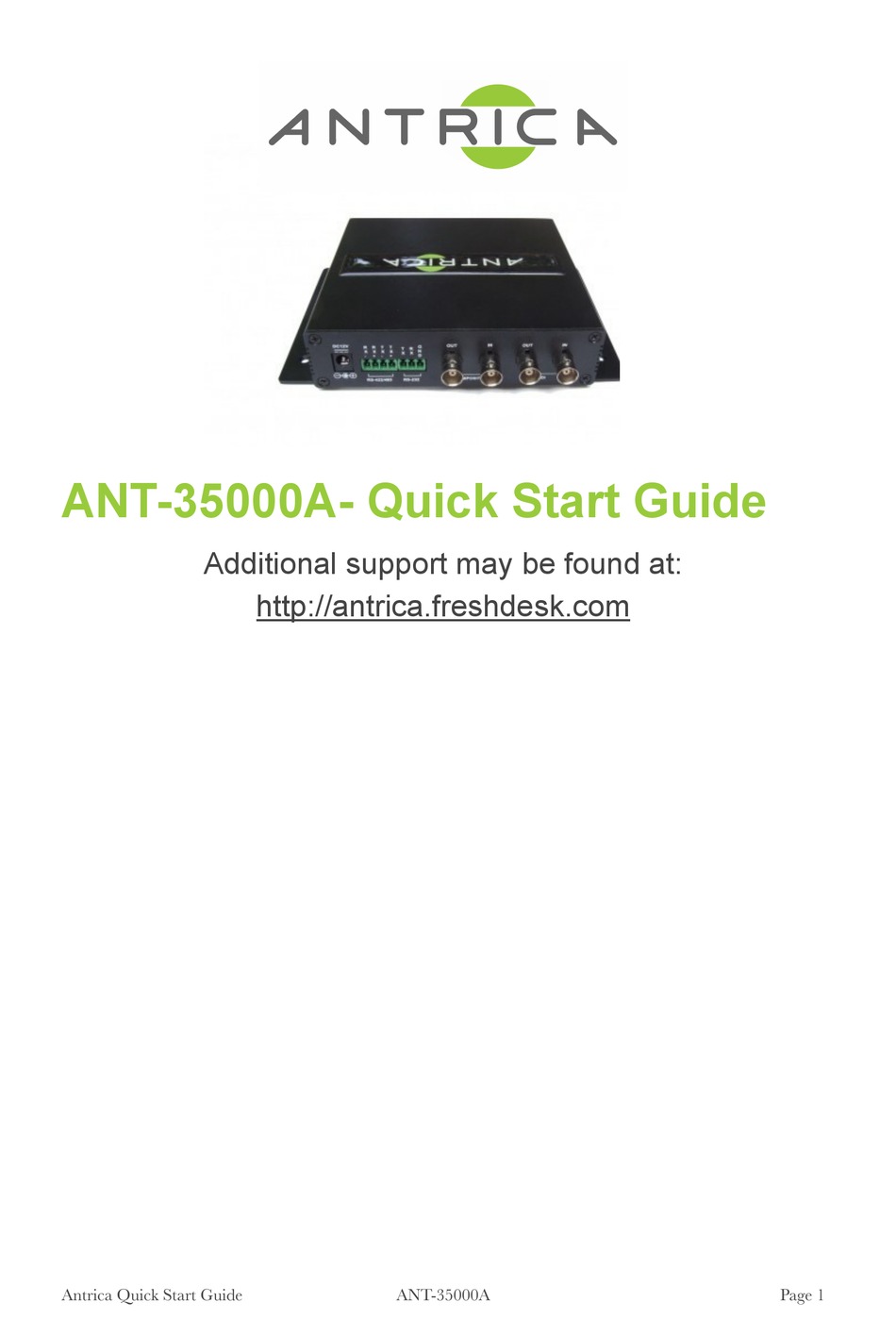

- Page 1 ANT-35000A- Quick Start Guide Additional support may be found at: http://antrica.freshdesk.com Antrica Quick Start Guide ANT-35000A Page ! 1...
-
Page 2: Table Of Contents
Contents 1 Whats in the box 2 Setting up the ANT-35000A 3. Configuring the ANT-35000A 3.1 Video Information 3.2 Video Encode 3.3 Network & IP Port 4. Streaming 4.1 RTSP over TCP to VLC player 4.1.1 How to configure VLC 4.2 MPEG Transport Stream to VLC... -
Page 3: Whats In The Box
-Fixing brackets 2. Setting up the ANT-35000A Connect the ANT-35000A to a laptop or PC using either a cross over ethernet cable or via an Ethernet switch using standard ethernet cables. Connect the input Video source using an HDMI HD-SDI or composite video cable. -
Page 4: Video Information
3.2 Video Encode: This page allows you select which video input to use and to setup the stream resolution , frame rate and so on Input format Input format Detected Primary Stream settings Antrica Quick Start Guide ANT-35000A Page ! 4... -
Page 5: Network & Ip Port
3.3 Network- IP & Port: This section allows you set the encoder IP address and other network items Network Settings Antrica Quick Start Guide ANT-35000A Page ! 5... -
Page 6: Streaming
Settings may vary with other players 4.1 RTSP over TCP to VLC player: RTSP streaming only requires one setting to be changed in the ANT-35000A. This is the RTSP port which can be found under Network-IP&Port. By default this Port 554 The ANT-35000A RTSP URL is as follows: rtsp://<IP ADDRESS>:<PORT>/video1 (video only streaming of primary stream) - Page 7 To stream MPEG TS first we need to setup ONE WAY STREAMING in the ANT-35000A which can be found under NETWORK-One way streaming. Select MPEG TS and click Apply . Here you can select and Enable any or all of the 4 streams.
- Page 8 Example URL for MPEG Transport Stream udp://@:1234 udp://@227.2.2.7:1234 4.3 Open an RTMP stream To stream RTMP you will need to know two pieces of information: RTMP URL : example rtmp://wowza.antrica.com:1935/live/ Stream Name: streamdemo Complete URL would then be rtmp://wowza.antrica.com:1935/live/streamdemo Antrica Quick Start Guide...
-
Page 9: Help And Further Support
Examples of players will be WOWZA media server or Youtube live streaming . Both of these players can e setup to generate the full URL Full URL= [Primary server URL:Port]/[Stream name] 5.0 Help and Further Support Please visit http://antrica/freshdesk.com where you can find: - application notes - User manuals - FAQs...
