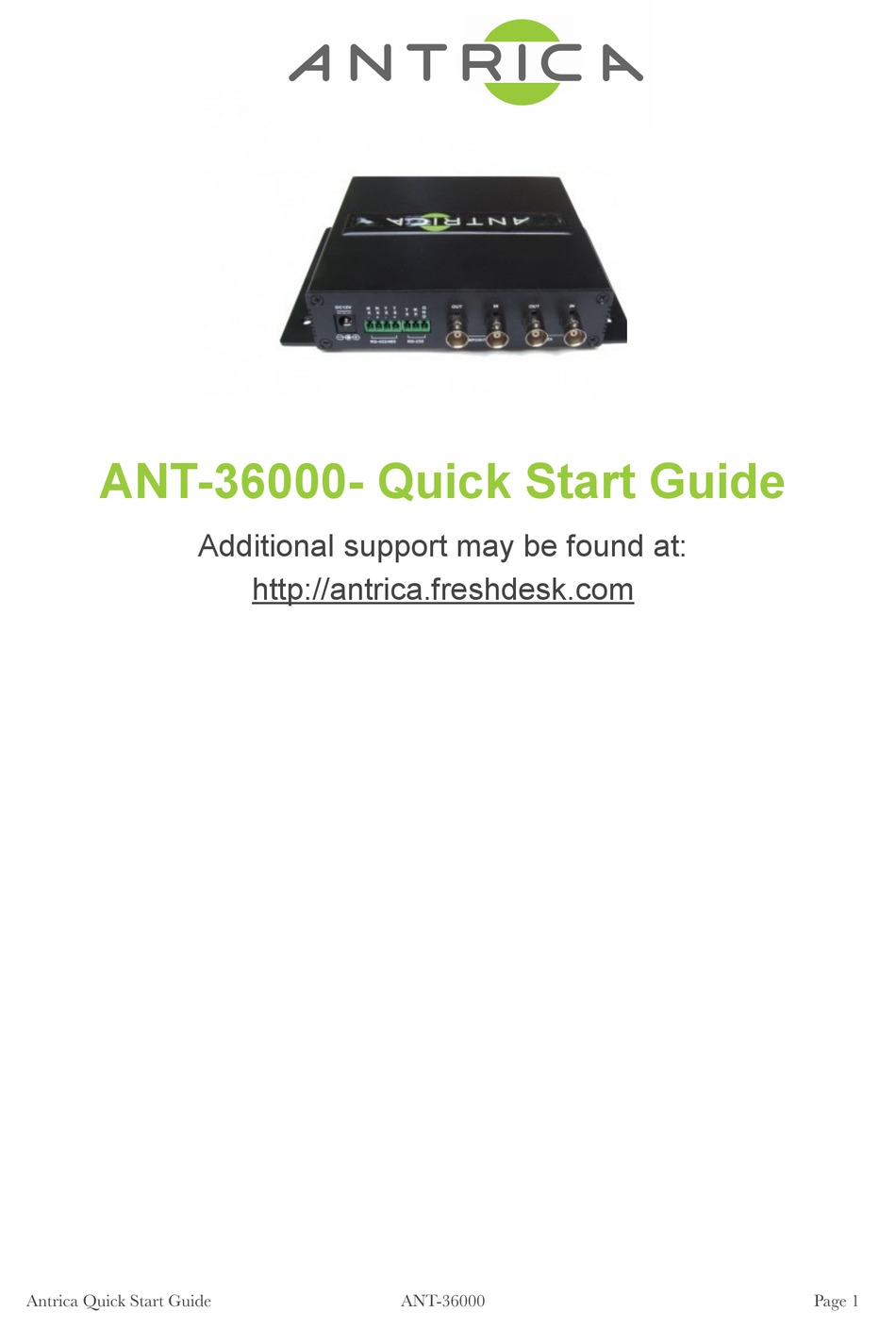

- Page 1 ANT-36000- Quick Start Guide Additional support may be found at: http://antrica.freshdesk.com Antrica Quick Start Guide ANT-36000 Page ! 1...
- Page 2 Contents 1 Whats in the box 2 Setting up the ANT-36000 3. Configuring the ANT-36000 4. Help and Further Support Antrica Quick Start Guide ANT-36000 Page ! 2...
- Page 3 -Fixing brackets 2. Setting up the ANT-36000 Connect the ANT-36000 to a laptop or PC using either a cross over ethernet cable or via an Ethernet switch using standard ethernet cables. Connect the output Video source using an HDMI HD-SDI or composite video cable.
- Page 4 ONVIF is selectable under remote type also. Address field is for your streams address/URL (example, rtsp://<IPADDRESS>/ video1) and finally the port is the port used for the RTSP stream (example, 80, 554 and 8554). Antrica Quick Start Guide ANT-36000 Page ! 4...
- Page 5 • ID and Password requires video source username and password (example admin/1234). Once the above details have been complete, use the Get Profile List button to retrieve the onvif profiles, then click Apply. Antrica Quick Start Guide ANT-36000 Page ! 5...
- Page 6 • If Multicasting the Address field is the multicast IP address of the Video Source/Encoder and port. 5.0 Help and Further Support Please visit http://antrica/freshdesk.com where you can find: - application notes - User manuals - FAQs - Firmware...
