SpotBox4K Ultra
Multiple ONVIF Camera Decoder
& Multi viewer
ANT-37500
User Manual
Firmware X.X.X dated
24th February 2022
00
www.antrica.com
Page
1
of
19
www.antrica.com
Version: 2.0
PN: ANT-37500

Advertisement

loading
Need help?

Need help?

Do you have a question about the ANT-37500 and is the answer not in the manual?

Questions and answers

Summary of Contents for Antrica ANT-37500

  • Page 1
 SpotBox4K Ultra Multiple ONVIF Camera Decoder & Multi viewer ANT-37500 User Manual Firmware X.X.X dated 24th February 2022 www.antrica.com Page www.antrica.com Version: 2.0 PN: ANT-37500...
  • Page 2 How Spotbox uses ONVIF profiles automatically in each Grid mode 15 System System information , firmware , reboot , reset and config settings 16 Remote Control IR Remote Control buttons and functions 17 FAQs Usefull information and FAQs 18 Support Support details & API Document www.antrica.com Page...

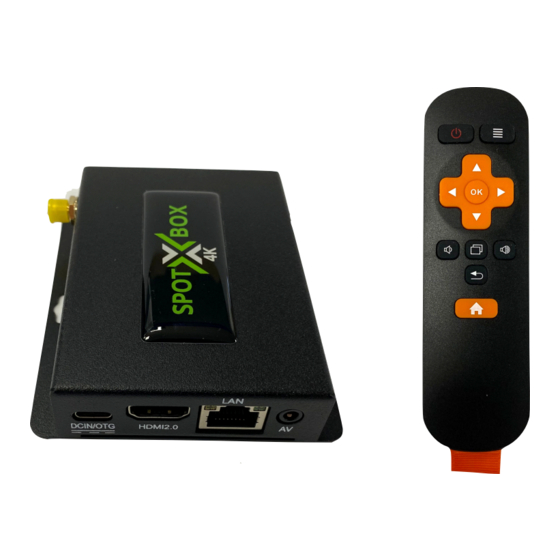

  • Page 3 B. Spotbox4K G. China Australia Plug adapter. C. WiFi Antenna (ANT-37500W only) H. EU adapter D. 110-240v AC to USB-A 5v DC PSU I. IR Remote Control E. UK plug adapter NOT IN BOX: Ethernet cable/ HDMI ANT-37500 www.antrica.com Page...
  • Page 4
 5V DC RJ-45 HDMI [1.4] USB-C Ethernet Output Port Power Input LAN port Reset USB [3.0] USB [2.0] IR port SD Card Port Port WiFi Antenna (ANT-375000W Only) ANT-37500 Disabled ANT-37500 www.antrica.com Page...
  • Page 5
 SpotBox- System Connections 4K or 1080P Monitor Not supplied IR Remote Control Supplied HDMI Cable Not supplied 12v Power Adapter plus USB cable Supplied Lan Cable Not supplied Network ANT-37500 www.antrica.com Page...
  • Page 6 Logging into the SpotBox user interface Using a web browser browse to the SpotBox (Google Chrome recommended) (ANT-37500) Default address http://192.168.0.222 (NOTE: Port 80 is used) (The Spotbox will display its current ip address for 10 seconds on boot up. Alternatively disconnecting and re-connecting the ethernet cable will also display the IP address for upto 10 seconds).
  • Page 7 Camera Switching Mode allows up to 32 cameras (depending on their resolution) to be displayed sequentially. DEFAULT GRID MODE Here you can select which display mode the screen defaults to when it is re-booted / goes into ‘boot mode’. ANT-37500 www.antrica.com Page...
  • Page 8 Gateway: the router Gateway IP address DNS: Domain Name Server IP address if used. NTP: If using an NTP time server this is its IP address. This will help to sync cameras assuming they use NTP as well ANT-37500 www.antrica.com Page...
  • Page 9: Camera Settings

    PROTOCOL: Default or select UDP or TCP for streaming AUDIO: Enable or Disable (default) Only one audio channel will be heard for each grid view and this will be the camera in the top left of the screen ANT-37500 www.antrica.com Page...
  • Page 10 2x2, 720P in 3x3 but when you view 4x4 it will say on screen NO PROFILE. This is because there were no profiles with low enough resolution selected to be shown in 4x4 mode. (480P max) ANT-37500 www.antrica.com...
  • Page 11: Display Settings

    To select a different LCD resolution manually select the desired resolution and click (APPLY-bottom of page-not shown here). Resolutions displayed are supported by the connected LCD . 4K resolutions only show when a 4K monitor is used. Note: changing resolution may cause the Spotbox to reboot. ANT-37500 www.antrica.com Page...
  • Page 12 Authenticated) Username: If authenticated add user name here Password: If authenticated add password here. NETWORK CAMERAS - SEARCH (FOR ONVIF CAMERAS) Click the Search button and ONVIF cameras which are discoverable will be displayed as shown here ANT-37500 www.antrica.com Page...
  • Page 13 Query to find the ONVIF profiles for this camera SAVE The camera profiles are ticked by default . If you click save this camera is saved in Position C1 and BOTH profiles are saved internally in Spotbox. ANT-37500 www.antrica.com Page...
  • Page 14 3x3 and 4x4 mode n.b if you wish to view multiple cameras in full 4K max resolution you select them using the 1x1 grid mode and they will cycle through in full screen mode at full resolution. ANT-37500 www.antrica.com Page...
  • Page 15 System System: Changing login password - Type a new Password then repeat and click UPDATE.This will set a new password for admin. For the time being user name is always admin and cannot be changed. ANT-37500 www.antrica.com Page...
  • Page 16 (e.g spotbox-update_nano2_release.swu) confirm selection of the file and select LOAD UPDATE. Do not remove power, restart or reboot until the firmware upgrade process has fully completed. Doing so may corrupt the firmware. You will see an Antrica logo page with the words UPDATE COMPLETE-REBOOT SYSTEM.
  • Page 17 ANT-37500 www.antrica.com Page...
  • Page 18: Factory Reset

    However there may be various Beta releases of this firmware which are identified by a release date e.g FW1.0.6 release 15th June 2017 Please always check with support@antrica.com which is the latest release This manual is written for a 18th October 2017 release version of 1.0.8 Please also refer to www.spotbox4k.com where we will post relevant updates / FAQ’s and tuition...
  • Page 19 2x2 screen : 1920 x 1080 P30 3x3 screen : 1280 x720 P30 4x4 screen : 640 x480 P30 Contact support@antrica.com or visit www.spotbox4k.com / www.antrica.com UK +44 1628 626098 Option 3 HTTP API Document Available on Request ANT-37500 www.antrica.com...
