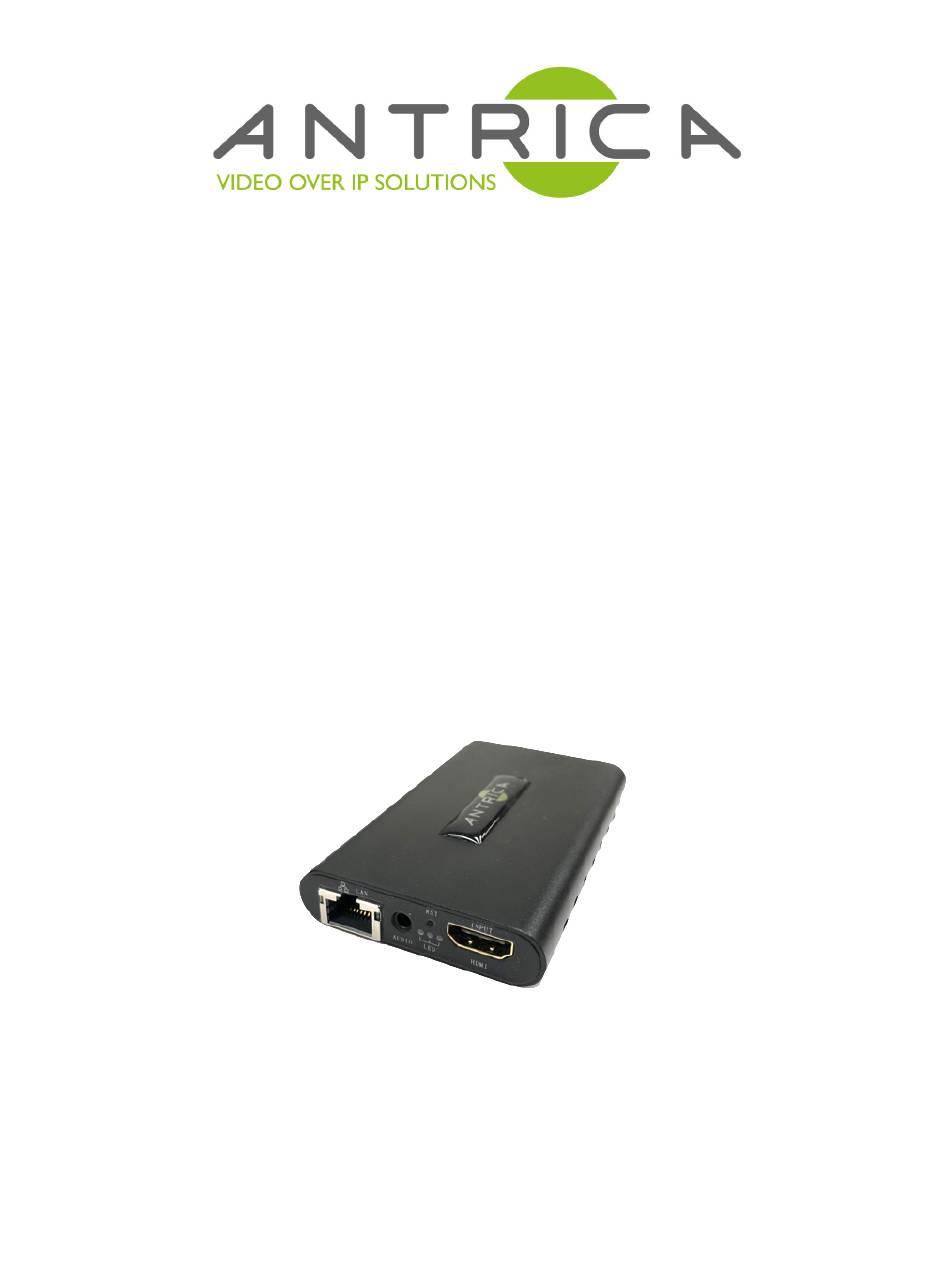

- Page 1 ANT-2400 H265 + H264 HDMI 4K UHD STREAMING ENCODER RTSP, HTTP, MPEG-TS & RTMP User Manual V1.0 ANT-2400 User Manual V1...
- Page 2 12.0 Main Stream OSD settings: On screen text and images…..Page 17 13.0 Colour and Brightness adjustments…........Page 18 14.0 Image filters –settings for Noise sharpness and other filters…..Page 19 15.0 System Settings : Firmware , Reboot, System Reset etc…..Page 20 ANT-2400 User Manual V1...
- Page 3 ● Make sure the AC power is unplugged in case of changing cables ● Only Antrica staff are approved to remove the case else the warranty will be invalid. ● Ensure good ventilation when the device is in operation as this may cause damage to the device due to overheating.
- Page 4 Page 3 2.0 OVERVIEW The ANT-2400 HDMI ENCODER is a low cost , high performance and easy-to-use video streaming device for RTSP HTTP RTMP and MPEG-TS streaming. Designed for professional video applications requiring 4K or 1080P60/720P60 HDMI signals to be streamed live. This product has a 1 channel HDMI audio and video input interface and can simultaneously encode video and audio.
-
Page 5: Main Features
➢ Superior video quality at ultra-low bitrates, generally video bitrate advised SD about 680kbps, 720p about 1mbps,1080p about 3mbps for lowest bitrate ➢ Supporting CBR and VBR mode ➢ WEB User Interface / Management ➢ Easy-to-Use System Management ➢ API Http SDK available ANT-2400 User Manual V1... -
Page 6: Technical Specification
Page 5 4.0 TECHNICAL SPECIFICATION ANT-2400 User Manual V1... -
Page 7: Signal Connections
5.0 SIGNAL CONNECTIONS When installing the Encoder each channel requires 4 connections. Power , Ethernet , Video input (HDMI) and Audio (option). Ethernet Interface RJ45 Audio Input Jack Battery Indicator Reset HDMI Input Micro SD Card 5VDC Input Recording Slot ANT-2400 User Manual V1... - Page 8 To change the IP address go to Network Settings and change the IP address to the required IP address . Once changed this will require a Reboot for the new IP address to be set. Either go to SYSTEM and click REBOOT or physically power down and power up the device ANT-2400 User Manual V1...
- Page 9 Video Parameters: Will tell you what resolution and frame rate is set Audio parameters: Will tell you what sample rate is set and number of channels (1/2) Hardware Status: XXXXXXXX STATUS > 2 STATUS This section defines the status of the Secondary Stream exactly as above for the Primary Stream ANT-2400 User Manual V1...
- Page 10 Gateway: Router Gateway IP address DNS: DNS Server IP address if used MAC: The MAC address of this encoder (unique address) Click Apply after any changes NOTE! When changing an IP address setting, a REBOOT is required for settings to be applied. ANT-2400 User Manual V1...
- Page 11 9.0 HDMI MAIN > MAIN On this page you can see the settings as they apply to the HDMI input such as Streaming type, encoding settings such as bit rate frame rate etc. More details are described on the following 4 pages: ANT-2400 User Manual V1...
- Page 12 Constraining the bandwidth may result in poorer video when scenes are changing fast. H.264 Level: Base, Main or High Profile encoding can be selected Encoding Frame Rate: sets the stream frame rate regardless of input frame rate 5-60 fps range Click Apply after any changes ANT-2400 User Manual V1...
- Page 13 PMT ID: When using MPEG-TS according to DVB rules the PMT PID can be set here. Transport ID : This is the MPEG-TS Transport ID which can be set by the user. Stream ID : This is the MPEG-TS Stream ID setting Click Apply after any changes ANT-2400 User Manual V1...
- Page 14 RTSP Port: change to the desired RTSP port: usually 554 but any port from 1-65535 can be chosen. Avoid conflicts with ports being used for other purposes. RTSP TCP: You can choose to stream over TCP or UDP Click Apply after any changes ANT-2400 User Manual V1...
- Page 15 RTMP User Name/ Password: Add user name password if used RTMP app name: Add the app RTMP stream name: Example : rtmp://video.mudu.tv/8eano/zvrut9 RTMP Server IP： video.mudu.tv RTMP app name： 8eano RTMP stream name: zvrut9 Click Apply after any changes ANT-2400 User Manual V1...
- Page 16 There may be some limitations when the primary stream is set to max resolution frame rate as CPU loading will be at its peak. Only one stream type can be selected as per the MAIN settings RTSP RTMP HTTP or MPEG-TS (Unicast and multicast section refers to MPEG-TS) Click Apply after any changes ANT-2400 User Manual V1...
- Page 17 Audio Codec: Choose AAC or MP3 (Note RTSP can be AAC or G711 PCM) AAC Type : Choose LC or HE here Resample: 32000 42100 resampling or disable. RTSP Audio: Select G711 (ONVIF ) or AAC Audio Gain: Adjust from +10 to -20dB Click Apply after any changes ANT-2400 User Manual V1...
- Page 18 Font Size: Size of Font to be used Alpha: This is the transparency of the logo , the lower the number the more transparent the logo will become. Font Colour: e.g 0xFFFFFFFF Text: write the OSD text required here Click Apply after any changes ANT-2400 User Manual V1...
- Page 19 These settings allow the user to adjust Brightness, Contrast Hue and Saturation of the image being streamed Brightness; Set from 0-100 (100 is maximum ) Contrast; Set from 0-100 (100 is maximum ) Hue; Set from 0-100 (100 is maximum ) Saturation; Set from 0-100 (100 is maximum ) Click Apply after any changes ANT-2400 User Manual V1...
- Page 20 SHARPENING: Enables a sharpening filter for improving edge detail SHARPENING STRENGTH: Allows the user to set up the level of sharpening FILTERING: OPEN /CLOSE Leave Open this feature is not supported currently FILTER A: 0 FILTER B: 0 FILTER C: 0 Click Apply after any changes ANT-2400 User Manual V1...
- Page 21 ONCE YOU CLICK UPDATE DO NOT TURN OFF THE SYSTEM UNTIL THE UNIT REBOOTS OR WAIT 5 MINUTES BEFORE DEPOWERING. FAILURE TO FOLLOW THIS STEP WILL RESULT IN THE UNIT NO LONGER FUNCTIONING AND WILL NEED TO BE SENT BACK TO ANTRICA. 15.0...
