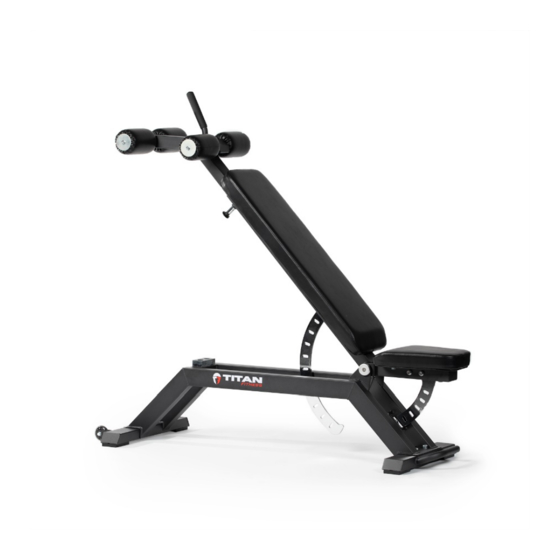

MAX ADJUSTABLE FID BENCH
DBENCH
400554
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!
Cover photo may show optional equipment not supplied
with standard unit. For an Operator's Manual and Decal
Kit in French or Spanish Language, please see your dealer.
Advertisement
Table of Contents
Related Manuals for Titan Fitness DBENCH 400554
Summary of Contents for Titan Fitness DBENCH 400554
- Page 1 MAX ADJUSTABLE FID BENCH DBENCH 400554 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit.
- Page 2 PARTS DIAGRAM / EXPLODED VIEW...
- Page 3 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION MAIN FRAME ENDING CAP FRONT BASE FRAME FLAT WASHER REAR BASE FRAME Φ11*Φ20*2 FLAT WASHER BLACK CUSHION FRAME Φ9*Φ16*1.6 SEAT CUSHION FRAME SPRING WASHER Φ10 BACK CUSHION SPRING WASHER Φ8 SEAT CUSHION HEAD HEX BOLT M10*25 HEAD HEX BOLT FRONT ANGLE PLATE M10*100...
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Install Front Base Frame (2) and Rear Base Frame (3) to Main Frame (1) using Flat Washer Φ11*Φ20*2 (21), Spring Washer Φ10 (23), and Hex Bolt M10*25 (25). STEP 2 Put the Leg Frame (17) into the Main Frame (1).
- Page 5 STEP 3 − Install Foam Bar (35) into the Leg Frame (17). − Secure the Foam (18) using the Ending Cap (19), Flat Washer Φ9*Φ16*1.6 (22), Spring Washer Φ8 (24), and Pan Head Hex Bolt M8*20 (28). − Put Small Cushion (36) between head cushion and seat cushion if necessary. −...
- Page 6 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
- Page 7 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
