Titan Fitness FNTLTNR Owner's Manual

Hide thumbs Also See for FNTLTNR:

Advertisement

Table of Contents

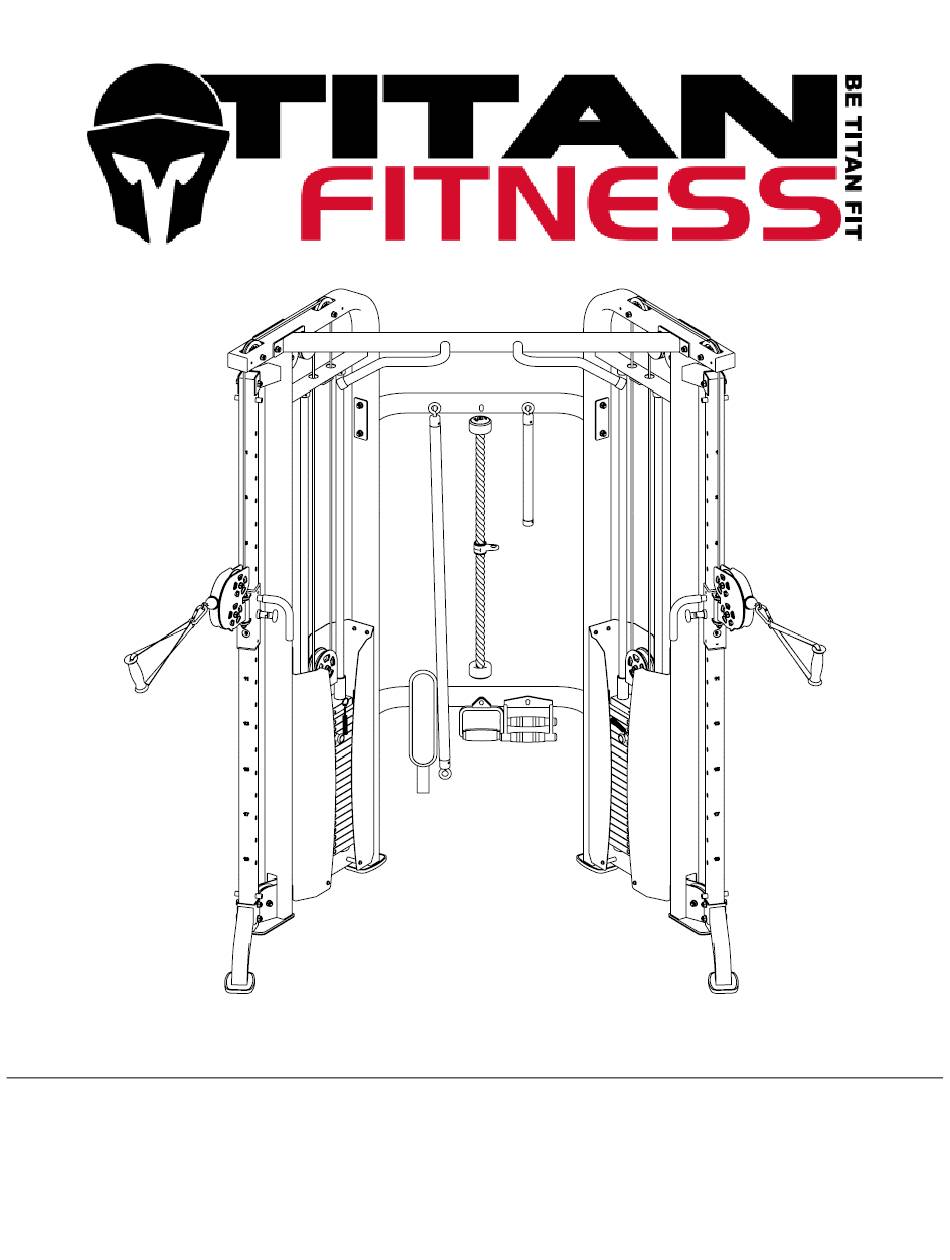

O W N E R ' S M A N U A L
MPN(s): FNTLTNR
SKU(s): 400883
UPC(s): 840009205255

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FNTLTNR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Titan Fitness FNTLTNR

Summary of Contents for Titan Fitness FNTLTNR

  • Page 1 O W N E R ’ S M A N U A L MPN(s): FNTLTNR SKU(s): 400883 UPC(s): 840009205255...
  • Page 2 P A R T S D I A G R A M / E X P L O D E D V I E W...
  • Page 3 DESCRIPTION DESCRIPTION Left Main Frame (39) Rubber Sleeve Right Main Frame (40) Pulley Spacer Bush Rear Cross Frame (41) Safety Hook Handle Bar Frame (42) Handle Left Base Frame (43) Handle Right Base Frame (44) Triceps Rope Left Adjustable Frame (45) Hand Grip Right Adjustable Frame...
  • Page 4 A S S E M B L Y I N S T R U C T I O N S Step 1 Assemble the Left Main Frame (1) ,Right Main Frame (2)，and Rear Cross Frame(3) using Fixing Plate(14),Flat Washer Φ11*Φ20*2 (69) ,Nut M10 (72)and Hex Bolt M10*75 (59). Please tighten all bolts.
  • Page 5 Step 2 1. Connect Handle Bar Frame (4), Left Main Frame (1) and Right Main Frame (2), using Fixing Plate (29),Flat Washer Φ11*Φ20*2 (69),Nut M10 (72) and Hex Bolt M10*100 (57). 2. Assemble the Left Base Frame(5) , Right Base Frame(6) on Left Main Frame (1) and Right Main Frame (2)，using Flat Washer Φ11*Φ20*2 (69) ,Nut M10 (72)and Hex Bolt M10*75 (59).
  • Page 6 Step 3 1. Put the Bumper Cushion (37) on the Left Main Frame(1), Insert the Guide Rod (15) into the Left Main Frame(1).Incline the guide rod(15), then put the Weight Stack (23), Left Top Weight Stack (24) , and bushes(16) into Guide Rod(15). Put the guide rod (15) back to upright position, slide the bushes (16) up to the hole on the Main frame (1).
  • Page 7 Step 4 1. Install the Cover (12) on the Left Main Frame (1), and Right Main Frame (2), using Flat Washer Φ6.6*Φ12*1.6 (70), Spring Washer Φ6(71) and Hex Bolt M6*15 (66). 2. Put all Accessories on the product as shown in drawing.
  • Page 8 This concludes the FNTLTNR Owner’s Manual. If applicable to your product, make sure to tighten all nut-and-bolt combinations before use. Enjoy! DISCLAIMER This equipment must be used with care by capable and competent individuals under supervision, if necessary. The use of any fitness equipment, including this one, involves the potential risk of injury. You accept and assume full...

This manual is also suitable for:

400883840009205255
