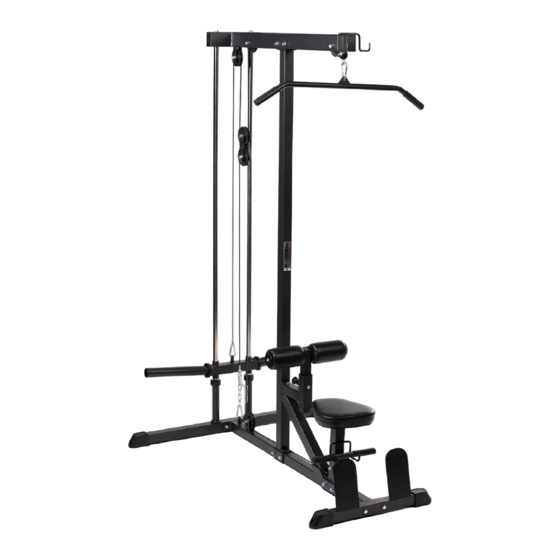

PLATE-LOADED LAT TOWER V2

SALPLRv2

400895

Operator's Manual

Read the Operator's Manual entirely. When you see this

symbol, the subsequent instructions and warnings are

serious follow without exception. Your life and the lives

of others depend on it!

Cover photo may show optional equipment not supplied

with standard unit. For an Operator's Manual and Decal

Kit in French or Spanish Language, please see your dealer.

Need help?

Do you have a question about the SALPLRv2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan Fitness SALPLRv2

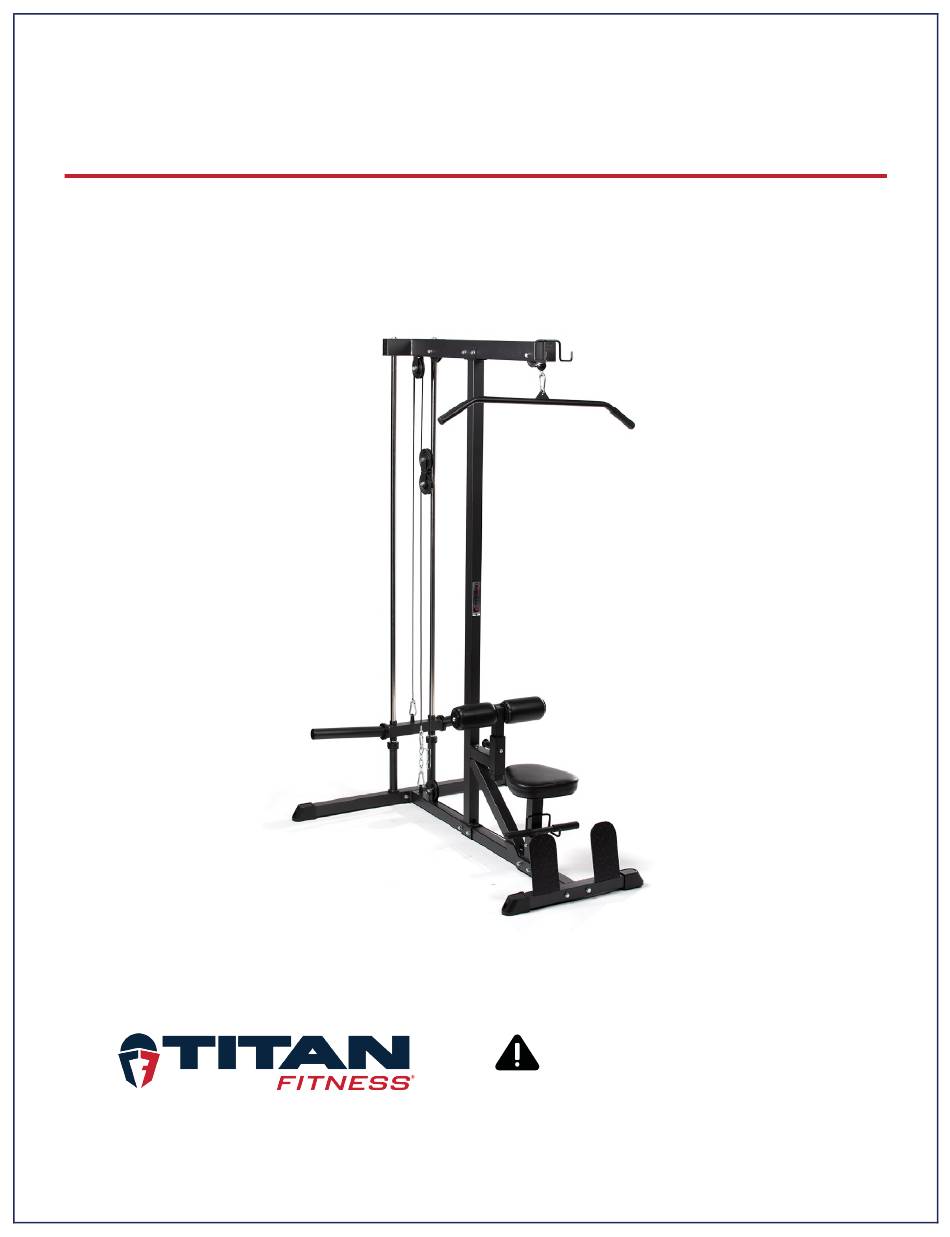

Page 1 PLATE-LOADED LAT TOWER V2 SALPLRv2 400895 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it! Cover photo may show optional equipment not supplied with standard unit.
Page 2 PARTS DIAGRAM / EXPLODED VIEW...
Page 3 PARTS DIAGRAM / EXPLODED VIEW DESCRIPTION DESCRIPTION BASE FRAME (27) FLAT WASHER Φ11*Φ20*2 UPPER FIXING FRAME (28) FLAT WASHER Φ10.5*Φ30*2.5 WEIGHT PLATE HOLDER (29) NUT M10 GUIDE FRAME (30) HEX BOLT M10*25 SUPPORT FRAME (31) HEX BOLT M10*45 SEAT CUSHION FRAME (32) HEX BOLT M10*65 FOOT FRAME...
Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Assemble the BASE FRAME (1), FOOT FRAME (7) and LOWER GUIDE FRAME FIXED TUBE (8) using FLAT WASHER Φ11*Φ20*2 (27), NUT M10 (29) and HEX BOLT M10*70 (33). STEP 2 Connect WEIGHT PLATE HOLDER (3), BIG RUBBER CUSHION Φ55*Φ25*25 (25) and HEIGHTENING FRAME (14), USING GUIDE FRAME (4) and HEX BOLT M10*25 (30).
Page 5 ASSEMBLY INSTRUCTIONS STEP 3 1. Install SUPPORT FRAME (5) on the BASE FRAME (1), using FLAT WASHER Φ11*Φ20*2 (27), NUT M10 (29) and HEX BOLT M10*75 (45). 2. Assemble the UPPER FIXING FRAME (2) on the SUPPORT FRAME (5) and GUIDE FRAME (4), using FLAT WASHER Φ11*Φ20*2 (27), FLAT WASHER Φ10.5*Φ30*2.5 (28), NUT M10 (29), HEX...
Page 6 ASSEMBLY INSTRUCTIONS STEP 5 1. Install the SEAT CUSHION (9) on the SEAT CUSHION FRAME (6) using FLAT WASHER Φ11*Φ20*2 (27) and HEX BOLT M10*25 (30). 2. Insert the FOAM ADJUSTABLE FRAME (39) into the SUPPORT FRAME (5). Then install the FOAM (40), NYLON COVER (41) and NYLON PLATE WASHER (42) on FOAM FRAME (12), USING FLAT WASHER Φ9*Φ16*1.6 (47) and PAN HEAD HEX BOLT M8*25 (44).
Page 7 ASSEMBLY INSTRUCTIONS STEP 6 1. Remove the PULLEY (A, B, C) on the UPPER FIXING FRAME (2), insert the CABLE (50) from PULLEY A, via THE UPPER FIXING FRAME (2) and out from the hole of PULLEY B, through the PULLEY C BRACKET, then reinstall the PULLEY A, B, C.
Page 8 ASSEMBLY INSTRUCTIONS STEP 7 1. Connect the HANDLE (10), SAFETY HOOKΦ8*80 (26) and CABLE Φ5*3670 (50). 2. Connect the LOWER HANDLE (11), SAFETY HOOK Φ8*80 (26), LINK Φ5*230 (17) and CABLE Φ5*3670 (50). a. Note that there are SAFETY HOOK Φ8*80 (26) at both ends of the LINK Φ5*230 (17).
Page 9 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
