Titan Fitness LEGEXTCRLV2 Operator's Manual

Titan Fitness LEGEXTCRLV2 Operator's Manual

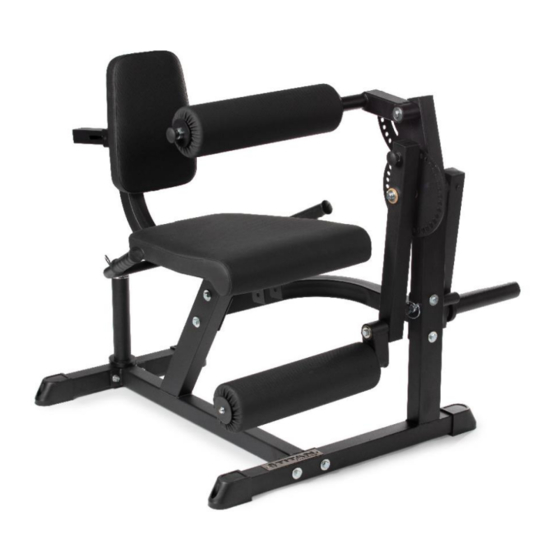

Leg extension curl machine

Advertisement

Quick Links

LEG EXTENSION CURL MACHINE
LEGEXTCRLV2
401556
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEGEXTCRLV2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan Fitness LEGEXTCRLV2

  • Page 1 LEG EXTENSION CURL MACHINE LEGEXTCRLV2 401556 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
  • Page 2: Description Qty

    ASSEMBLY PARTS DIAGRAM / EXPLODED VIEW KEY BOX DESCRIPTION QTY KEY BOX DESCRIPTION MAIN FRAME (12) LEG FOAM RACK FRONT UPRIGHT (13) PRESS LEG FOAM RACK FRAME WEIGHT PLATE REAR FOOT FRAME (17) RETAINING BOLT CONNECT FRAME (22) FORCE SPRING BACK CUSHION (27) BACK CUSHION...
  • Page 3: Hardware Pack

    HARDWARE PACK...
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 1 Connect Main Frame (1), Front Upright Frame (2), Rear Foot Frame (3) and Connect Frame (4), using Flat Washer (42), Flat Washer (44), Nut M10 (47) and Hex BoltM10*70 (49)
  • Page 6 ASSEMBLY INSTRUCTIONS STEP 2 1. Fix Left Handle Frame (7), Right Handle Frame (8) on Main Frame (1), using Flat Washer (44), Nut M10 (47) and Hex Bolt M10*75 (50) 2. Fix Weight Plate Retaining Bolt (17) on Front Upright Frame (2), using the O-Shape Pin (54).
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 3 1. Plug Back Cushion Frame (5) into Main Frame (1), Using Hex Head Bolt (51). 2. Fix Seat Cushion Frame (6) on Main Frame (1), using Double end Bolt M10 (16), Nut M10 (47). 3. Fix Seat Cushion Frame (6) on Main Frame (1), using L Bolt (20).
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 4 1. Fix Bearing Washer (26) and Leg Foam Rack (12) on Leg Swing Frame (10), using Flat Washer (42), Spring Washer (46), Hex Bolt M10*25(48). 2. Fix Bearing Washer (26) and Press Leg Foam Rack (13) on Front Upright Frame (2), using Flat Washer (42), Spring Washer (46), Hex Bolt M10*25(48).
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 5 1. Fix Back Cushion (27) on Back Cushion Frame (5), using Flat Washer (44), Hex Bolt M10*25(48). 2. Fix Seat Cushion (28) on Seat Cushion Frame (6), using Flat Washer (44), Hex Bolt M10*25(48). 3. Install Force Spring (22) on Weight Plate Rack (9).
  • Page 10 APPENDIX - FULL ASSEMBLY/EXPLODED VIEW/ FULL PARTS LIST...
  • Page 11: Foam Plate

    APPENDIX - FULL PARTS LIST DESCRIPTION DESCRIPTION MAIN FRAME SEAT CUSHION FRONT UPRIGHT FRAME BIG FOAM CUSHION REAR FOOT FRAME F50 HORSESHOE SLEEVE CONNECT FRAME HOLLOW SLEEV1 BACK CUSHION FRAME HANDLE SLEEVE SEAT CUSHION FRAME LIMITED SLEEVE LEFT HANDLE FRAME KNOP RIGHT HANDLE FRAME BOX BUTTON...
  • Page 12 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
  • Page 13 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2021 Titan Brands...
