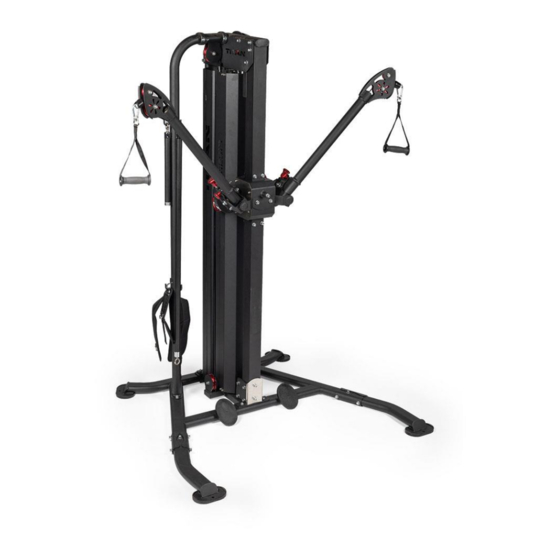

Single stack functional trainer

Advertisement

Quick Links

NEMESIS™ SINGLE STACK FUNCTIONAL TRAINER
SSFNTLTNR
401837
Operator's Manual
Read the Operator's Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

Advertisement

loading
Need help?

Need help?

Do you have a question about the NEMESIS and is the answer not in the manual?

Questions and answers

Summary of Contents for Titan Fitness NEMESIS

  • Page 1 NEMESIS™ SINGLE STACK FUNCTIONAL TRAINER SSFNTLTNR 401837 Operator’s Manual Read the Operator’s Manual entirely. When you see this symbol, the subsequent instructions and warnings are serious follow without exception. Your life and the lives of others depend on it!
  • Page 2 PARTS DIAGRAM / ASSEMBLY EXPLODED VIEW DESCRIPTION DESCRIPTION RIGHT FRONT BASE BASE FRAME FRAME MAIN FRAME FRONT FIXING PLATE UPRIGHT FRAME WEIGHT PLATE RIGHT COVER HANDLE LEFT FRONT BASE FRAME...
  • Page 3 HARDWARE PACK – actual size at 100% scale...
  • Page 5 ASSEMBLY INSTRUCTIONS STEP 1 a. Assemble the Left Front Base Frame (34) on Base Frame (1), using Flat Washer Φ11*Φ20*2 (86), Spring Washer Φ10 (90), Nut M10(93), Hex Bolt M10*105(71) and Hex Bolt M10*20(101). b. Assemble the Right Front Base Frame (35) on Base Frame (1), using Flat Washer Φ11*Φ20*2 (86), Spring Washer Φ10 (90), Nut M10(93), Hex Bolt M10*105(71) and Hex Bolt M10*20(101).
  • Page 6 STEP 2 a. Remove the Bolts, Washer and Nut form the Main Frame (2). b. Connect Main Frame (2) and Base Frame (1), using Flat Washer Φ11*Φ20*2 (86), Spring Washer Φ10(90), and Hex Bolt M10*25(78). And then reinstall the bolt that was removed earlier.
  • Page 7 STEP 3 a. Connect Upright Frame (3) and Main Frame (2), using Flat Washer Φ11*Φ20*2 (86), Spring Washer Φ10(90), Nut M10(93), Hex Bolt M10*30(77) and Hex Bolt M10*25(78). Tighten all the Bolts in this step and the previous step.
  • Page 8 STEP 4 a. Remove the Guide Rod Bushing (45), Guide Rod (24), Top Weight Stack (48), one piece of Weight Stack (47), Rubber Baffle (55) and Support Frame (37) in turn from the Main Frame. b. In addition to the support frame (37), other accessories are put aside for use.
  • Page 9 STEP 5 a. Fixing the Rubber Baffle (55) to its original position. b. Insert the Guide Rod (24) into the Rubber Baffle (55). Tilt the Guide Rod outward, then install the Weight Stack (47) and the Top Weight Stack (48) on the Guide Rod (24), fixing the Guide Rod (24) on the Main Frame with the Guide Rod Bushing (45).
  • Page 10 STEP 6 a. Connect Right Cover (14) with logo at top to Main Frame (2), using Flat Washer Φ8.4*Φ24*2 (87), Spring Washer Φ8 (91), Rubber Bumper (61) and Hex Bolt M8*65(83). b. Install the handle (62) to the machine. c. Tighten all the bolts and adjust machine smoothly before use.
  • Page 11 FULL PARTS DIAGRAM / EXPLODED VIEW...
  • Page 12 DESCRIPTION DESCRIPTION (54) Base Frame Buffered Washer (55) Main Frame Rubber Baffle (56) Upright Frame Stopper 30*70*20 (57) Sliding Frame End Cap 40*80*2.5 (58) Adjustable Frame Floor Mat (59) Swing Arm Frame Tapered Rubber Bumper (60) Pulley Frame Plastic Sleeve Swing Arm Front Connecting (61) Rubber Bumper...
  • Page 13 (25) (78) Spacer BushФ18*Ф10.2*44 Hex Bolt M10*25 (26) (79) Φ50 Pulley Hex Bolt M10*20 (27) (80) Roller Hex Bolt M6*20 (28) (81) Spacer Bush Ф12*Ф6*16 Hex Bolt M6*15 Limit Bracket (29) (82) Hex Bolt M5*10 (30) (83) Cable Ф5*10580 Pan Head, Hex Bolt M8*65 (31) (84) L-Shape Fixing Plate...
  • Page 14 Hexagon Socket Head Screw (50) (103) Fixing Pin Sleeve M8*85 (51) (104) Sticker for Adjust Tube Flat Washer Φ9*Φ16*1.6 (52) (105) Φ19 Metal Bushing Nut M8 (53) Rubber Pad...
  • Page 15 ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY The use of any equipment, including this one, involves the potential risk of injury. Apart from any warranty claim that might be presented for a claimed defect in material or workmanship of the product, you accept and assume full responsibility for any and all injuries, damages (both economic and non-economic), and losses of any type, which may occur, and you fully and forever release and discharge Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims, demands, damages,...
  • Page 16 NEED HELP? CONTACT US FIRST. 1-888-410-1503 info@titan.fitness www.titan.fitness © 2023 Titan Brands...
