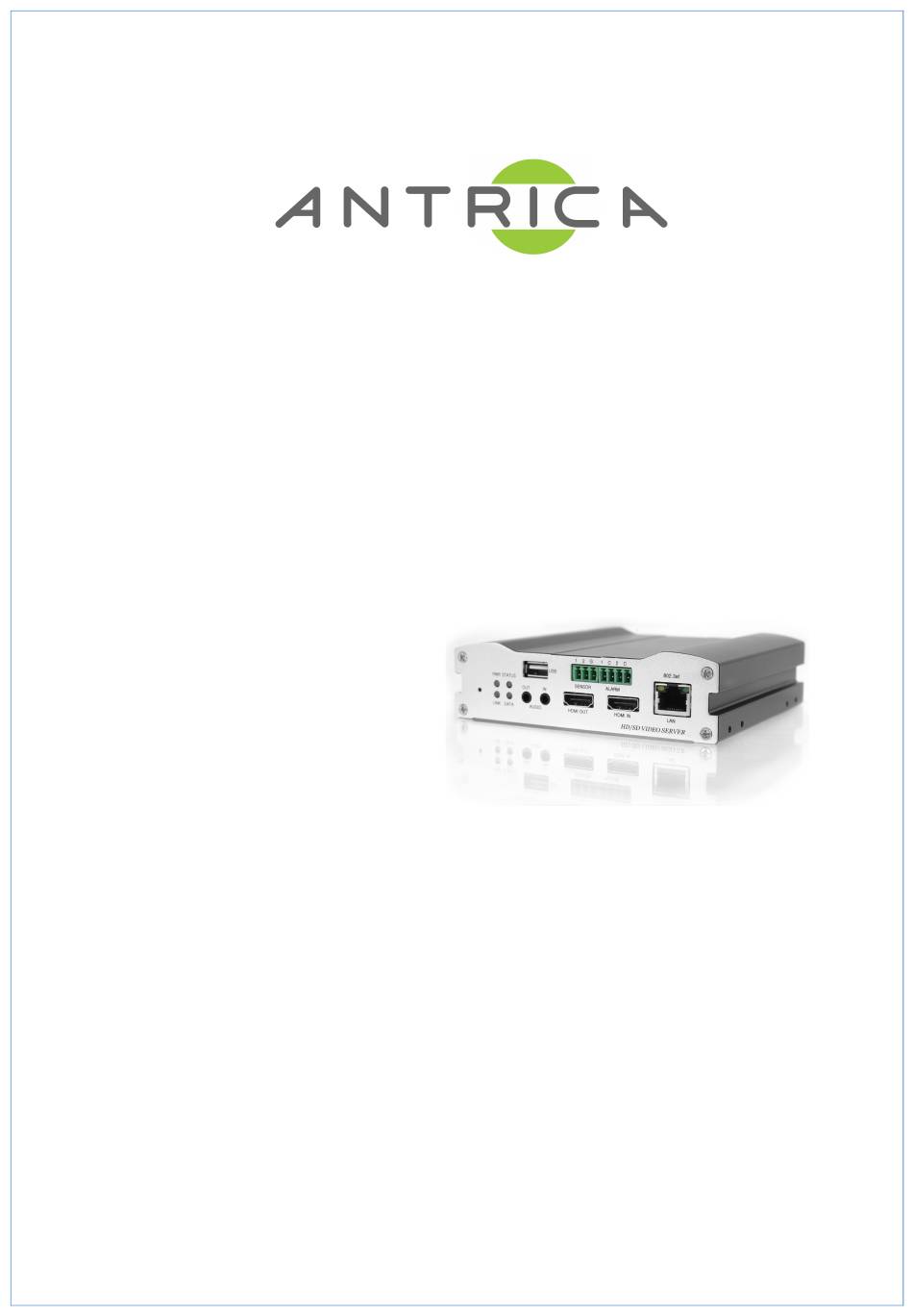

- Page 1 ANT-32000A ANT-32000AS H.264 HD VIDEO SERVER DECODER SD-SDI and HD-SDI option – ANT-32000AS User Manual Ver. 2.0...
- Page 2 We appreciate you purchasing the ANT-32000A. Before installing the product, please read the following carefully. ° Make sure you turn off the power before installing ANT-32000A. ° Do not install under the direct sunlight or in dusty areas. ° Make sure you use the product within the temperature and humidity specified in the specification.
-
Page 3: Table Of Contents
ANT-32000A User Manual Table of Content Introduction ............................... 5 1. About This Manual ..........................5 2. Features ..............................5 3. Product and Accessories ........................7 4. Part Names and Functions ........................8 5. System Modes and Connections ......................10 Installation ............................... 13 1. - Page 4 ANT-32000A User Manual Appendix ................................. 58 1. Appendix A : Sensor and Alarm Port ....................58 2. Appendix B : Serial Port ........................60 4/61 ANT-32000A User Manual...
-
Page 5: Introduction
The Manual includes instructions for installation, operation and configuration of the ANT-32000A as well as troubleshooting. ANT-32000A will be used as a generic part number and where SDI is mentioned this will refer to the ANT-320000AS only. All other features are common to both A and AS versions. - Page 6 ANT-32000A User Manual q Serial Data Two serial ports : RS-232, RS-422/485 Various PTZ camera protocols Data pass-through mode : Serial data communication between Encoder - Decoder q Sensor and Alarm Connections to external sensor and alarm devices Event Alarm...
-
Page 7: Product And Accessories
ANT-32000A User Manual 3. Product and Accessories User Manual (CD) Power adapter and Cable ANT-32000A Screws Software CD Brackets 7/61 ANT-32000A User Manual... -
Page 8: Part Names And Functions

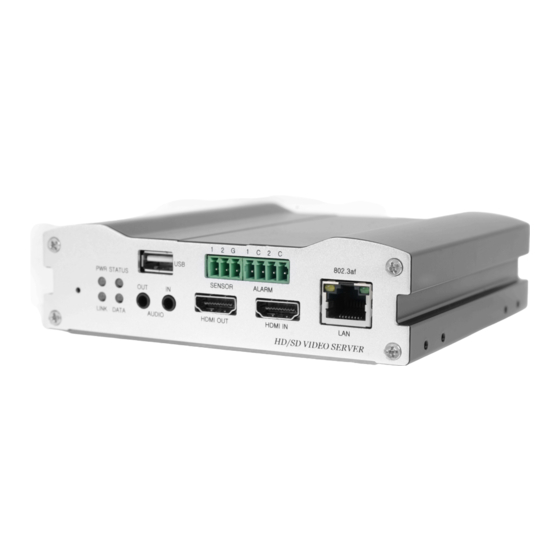

ANT-32000A User Manual 4. Part Names and Functions q Front View Parts Function Display system status Audio Input Audio Input Audio Output Audio Output HDMI Input HDMI Video Input HDMI Output HDMI Video Output USB Port USB 2.0 100/10-base-T Ethernet... - Page 9 ANT-32000A User Manual q Rear View Part Function Power DC +12V power input RS-422/485 Serial port for PTZ control and etc RS-232 Serial port for PTZ control and etc Composite In/ Output Composite Video Input / Output HD/SD-SDI In/Output HD/SD-SDI Video Input / Output HD/SD-...
-
Page 10: System Modes And Connections
ANT-32000A User Manual 5. System Modes and Connections ANT-32000A operates in one of two modes; Encoder, Decoder. ANT-32000A systems can be connected in either 1-to-1 fashion where one encoder is connected to one decoder or 1-to-many fashion where one encoder is connected to many decoders. - Page 11 ANT-32000A User Manual 1:N Connection (Unidirectional Transmission). Remote Center Site Decoder Encoder Decoder Decoder In this configuration, a site can be monitored from many remote central locations. Although any number of decoders can be connected to an encoder, in a real network environment, maximum connections would be limited by network bandwidth .
- Page 12 ANT-32000A User Manual center wanting to monitor the site. VMS (Video Management System) site Remote Center Encoder Site Remote Center Encoder Decoder VMS (Video Management System) is a Windows based remote monitoring program to access multiple encoders or decoders for real-time monitoring or control of the encoders/decoders and connected cameras.
-
Page 13: Installation
Connecting with D1 resolution Camera Connect a camera to the Composite Video Input port of ANT-32000A accordingly. q Decoder System Connect a monitor to HDMI , COMPOSITE or (HD-SDI) Output of ANT-32000A accordingly. (ANT-320000AS if you need SDI ) 2. Connecting Audio Audio is bi-directional in any configuration regardless of the system mode (Encoder or Decoder). -
Page 14: Connecting Power
ANT-32000A User Manual 5. Connecting Power After confirming the power source, connect power adaptor and connect the 12VDC connector to the system. After a short period the system will boot up into an operating mode 6. Check if it Works Once the power is supplied to the camera, it will start booting. -
Page 15: System Operation
ANT-32000A User Manual System Operation 1. LED Display q Description of LED System status can be monitored with LED display State Description Power off Power on Green blinking Normally operating System failure: Needs diagnostics Constant change of colors NTSC/PAL setting does not match... -
Page 16: Remote Video Monitoring
ANT-32000A User Manual 2. Remote Video Monitoring There are two ways to view video when the connections are completed between a site and central system. In order for correct operation, an IP address must be set accordingly. Please refer to True Manager in Chapter 3 or Remote Setting in Chapter 4 for further details. - Page 17 Video Selection (Video Select) Select the Video stream to be viewed: Primary or Secondary ANT-32000A is capable of dual streaming; primary streaming and secondary streaming. Video will be displayed according to the resolution set on video configuration. If dual streaming (“Use Dual Encode”...
- Page 18 - Set: Set the current position to the selected preset entry. - Clear: Delete the selected preset entry. Sensor Input When the sensor on ANT-32000A is working/ activated, the light turns red. Alarm Output Operate the alarm device connected to ANT-32000A.
-
Page 19: Initialization Of Ip Address
ANT-32000A User Manual File record Recording to an AVI file on Live view page is available. AVI files are generated in the specified folder or a specified file name on the PC where web browser is running. 1. Enter the drive and the folder name on the PC and enter the AVI file name to be used. -
Page 20: Remote Configuration
ANT-32000A User Manual Remote Configuration Remote Configuration Remote configuration of the server is available using a web browser. Enter the IP address of ANT- 32000A and a live view screen appears as below. Press Setup button on the screen to set up the server. -
Page 21: Encoder Configuration
ANT-32000A User Manual Encoder Configuration Encoder Configuration While most configuration items are common for Encoder and Decoder modes, there are items which are relevant to specific system modes. All the configuration items for Encoder mode are explained first. Then, items specific only to Decoder mode are described respectively. Sections for Decoder will not include items which are common to Encoder mode 1. - Page 22 ANT-32000A User Manual q General System Mode Select system Mode: Select Encoder between Encoder and Decoder. System ID Set the System ID. The set System ID is displayed with the video image in the web browser. The System ID is also transferred to remote software, such as VMS, and displayed on it. This is the name given to the server for identification purposes.
- Page 23 ANT-32000A User Manual Current Time Current date & time: Enter a new date and time and press Set Current Time button to update date & time Time Format Change the time format. Selectable time formats are as follows - YYYY/MM/DD hh:mm:ss (Ex. 2010- 4-11 18:18:42) - DD/MM/YYYY hh:mm:ss (Ex.11- 4-2010 18:18:42)
-
Page 24: Video Configuration
ANT-32000A User Manual cleared. Log In User name and Password for log in will not be cleared however so it is important to remember these. 2. Video Configuration 24/61 ANT-32000A User Manual... - Page 25 ANT-32000A User Manual q Encode Input Format Select ON to enable display of video on the monitor that is connected to the composite or HD/SD-SDI or HDMI video port. Select an Input Format. There are 4 types of input ports;...
- Page 26 ANT-32000A User Manual compression will be affected by the ‘Bit rate’ value entered. With ‘Quality’ selected, the video compression will be effected by the quality of image selected. Therefore, ‘Bit rate’ and ‘Quality’ corresponds to CBR (Constant Bit rate) and VBR (Variable Bit rate) respectively. CBR will try and maintain an average bit rate equal to the Bitrate value set.
- Page 27 ANT-32000A User Manual q Dual Encode Use Dual Encode 1. Select Off button on the Enable Preview to Enable use of Dual Encode 2. Select ON to dissable use of Dual Encoding The secondary video can be viewed on Live View window by selecting Secondary on Video...
- Page 28 ANT-32000A User Manual Sensitivity Set the condition to trigger an event for motion detection. The value determines the sensitivity of the motion detection within a block: the smaller, the more sensitive Information Display System ID and/or server time can be display over the video window in Internet Explorer. Each item can be turned on or off separately, and position can also be configured.
-
Page 29: Audio Configuration
Select the Bit rate between 64kbps and 128kbps when AAC is selected The sampling rate is fixed to 32KHz when AAC is selected. Note that when ANT-32000A is connected to a decoder, the decoder’s audio algorithm should be set identically to transmit audio settings. -
Page 30: Network Configuration
ANT-32000A User Manual 4. Network Configuration 30/61 ANT-32000A User Manual... - Page 31 ANT-32000A User Manual q Local IP mode Two IP modes are supported. Depending on the selected mode, further configuration items come as follows IP Mode Selection Description Local IP Fixed IP address Local Gateway IP address Fixed IP Gateway Local Subnet...
- Page 32 ANT-32000A User Manual Domain Name System (DNS) is a database system that translates a computer's fully qualified domain name into an IP address. Networked computers use IP addresses to locate and connect to each other, but IP addresses can be difficult for people to remember.
- Page 33 SNMP ANT-32000A can be used as an SNMP agent. It is compatible to both SNMPv1 and SNMPvec. Settings for using SNMP (Simple Network Management Protocol) are as following SNMP Listen Port: The port is for connecting external devices when the system operates as an SNMP client.
-
Page 34: Serial Port Configuration
ANT-32000A User Manual same for the system to be connected using the multicast protocol. q DDNS Select the DDNS (Dynamic DNS) server to use. One of two servers can be selected. True DNS: TrueDNS service is used in this mode. Systems can be registered on the website for TrueDNS service: http://ns1.truecam.net. - Page 35 ANT-32000A User Manual q Serial Port Type and Configuration 35/61 ANT-32000A User Manual...
-
Page 36: Event Configuration
Direct Keyboard Control: Keyboard controller can be connected to ANT-32000A directly to control pan tilt zoom and focus q Sensor Type There are two sensor input ports on ANT-32000A. Each of the sensor ports can be configured to the following. Function... - Page 37 ANT-32000A User Manual q Local & Remote Event Configuration 37/61 ANT-32000A User Manual...
- Page 38 ANT-32000A User Manual The event configuration configures the actions for each event type. Local section configures the actions for events from local (self) system, and the configuration activates local devices. Remote sections configure the actions for events from remote (peer) system.
- Page 39 ANT-32000A User Manual Specify the settings to send event information, when E-mail is selected as an event action. Server Address: Enter an address of mail(SMTP) server Port: Specify a port for SMTP operation (Port 25 is the default port in SMTP operation. If a different port is configured in the SMTP server, this port needs to be changed accordingly).
-
Page 40: Preset Configuration
Move PTZ Camera „ Enter a name ƒSave to the desirable view. ANT-32000A User Manual ‚ Press Set Button 7.Preset Configuration Configure up to 15 preset positions. Preset function is not available on some PTZ receivers. Make sure to check if a PTZ receiver supports preset... -
Page 41: Recording Configuration
ANT-32000A User Manual 8.Recording Configuration 41/61 ANT-32000A User Manual... - Page 42 ANT-32000A User Manual USB Device USB hard disk or a memory stick can be used, and at least 1GB size is recommended. Either EXT3 or FAT32 file system can be used. A disk with either EXT3 or FAT32 file system can be read in a Linux PC.
- Page 43 ANT-32000A User Manual Refer to the chart for checking the status of disk. Disk status Description Disk error detected Error No disk Disk is not connected to the system. Searching Disk information Checking the status of disk. Refresh the page and wait until the status is changed.
- Page 44 Event Type Three recording modes are supported in ANT-32000A: Full-time, Event, Disconnect. In case of Event recording, event types can be selected among several events. Selected event type is used for configuring the schedule table. Up to 4 event types can be configured and each event type can be a combination of sensor, video loss and motion event.
- Page 45 ANT-32000A User Manual Checking status of recording Recording status can be shown on the main view page. Recording status can be also shown in True Manager. When data is being recorded, Record column displays the ON sign 45/61 ANT-32000A User Manual...
- Page 46 ANT-32000A User Manual Search and Playback q Recorded File l Recorded video and audio data can be saved as AVI format on the disk. l In general, one AVI file is created for an event in case of event-based recording. However, it is possible that recorded data, caused by series of events happening quickly and continuously, may be merged to a single AVI file.
- Page 47 ANT-32000A User Manual q Playback Selecting an AVI file will show a dialog for opening or saving the file l Pressing the Save button, the file will be stored in the PC. The AVI file can be played with Windows Media Player.
- Page 48 ANT-32000A User Manual q Deletion l If you want to delete recorded files, select the files by checking the item in front of each file and press the Delete button. l It is possible to delete multiple files at once.
- Page 49 Trouble Shooting l There may be a damaged file system if you turn off the power of the ANT-32000A or disconnect the USB memory stick or USB HDD while data is being written. l In case of FAT32, recording can’t be done normally if the file system is damaged. If this happens, the disk or memory stick should be reformatted on the PC.
-
Page 50: User Configuration
ANT-32000A User Manual 9.User Configuration q User List User can be registered and privilege level of a user can be specified. User configuration is allowed only to admin user. Max 16 users can be registered and each user can have one of four privileges. - Page 51 ANT-32000A User Manual Add User The Page for adding a user appears on pressing the Add button User ID and password need to be entered and privilege level needs to be selected. User ID and password consists of alphanumeric string of max 15 characters.
-
Page 52: Decoder Configuration
ANT-32000A User Manual Pressing Modify Privilege button after selecting a user shows a page for changing the privilege. It is not permitted to change the privilege level of admin user. q Login Policy Authentication Type For user login, access algorithm can be selected : Basic or Digest HTTP authentication based on RFC 2617(HTTP Authentication: Basic and Digest Access Authentication) is supported. -
Page 53: Video Configuration
ANT-32000A User Manual 2. Video Configuration q Output format Regardless of input resolution of the Encoder or IP camera, Decoder of the ANT-32000A can display video format as follows; NTSC (720 x 480) PAL (720 x 576) 53/61 ANT-32000A User Manual... -
Page 54: Network Configuration
ANT-32000A User Manual 720p60 (1280x720) 1080p60 (1920 x 1080) 720p50 (1280 x 720) 1080i50 (1920 x 1080) q Buffering You can store a maximum 30 decoded frames temporarily by using buffering before displaying the frames. Displaying stored frames is smoother than displaying in real time. However, displaying stored frames causes delay because of process of buffering. - Page 55 ANT-32000A User Manual q Remote Type Normal : Connection for ANTRICA Encoder and decoder RTSP/RTP: Decoder system can make connection though RTSP protocol and get the stream via RTP. It is also possible to make connection with other vendor’s H.264 IP camera supporting standard RTSP/RTP and standard H.264 algorithm.
- Page 56 ANT-32000A User Manual q Remote Channel The channel can be selected when the remote system has multiple video channels q Use Streaming Server Decoder system has settings to connect to the Encoder or IP Camera via the Streaming Server. To connect to Encoder or IP Camera via Streaming Server, Use Streaming Server should be set to On and information about the Streaming Server (SS) needs to be configured appropriately.
-
Page 57: Display Configuration
ANT-32000A User Manual 4. Display Configuration q Disconnection Decoder system’s output mode on disconnected state can be configured Freeze : Video image of the last frame is shown when there is a disconnection. Black Screen: Black Screen is shown when there is a disconnection. - Page 58 ANT-32000A User Manual Select from Video, Audio and Serial to be indicated by Data LED. When you have selected data (Video or Audio or Serial) communication between the encoder and the decoder, the Data LED will indicate the status. Appendix 1.
- Page 59 ANT-32000A User Manual q Alarm Port l Terminal Type - Voltage Rating: 150VAC - Current Rating : 2A l Relay Type - Contact Rating : 1A 30VDC - Switching Power : Max 30W 62.5VA - Switching Voltage : Max 60VDC...
- Page 60 ANT-32000A User Manual 2. Appendix B : Serial Port q RS-232 Port l Port Type -3 PIN -Pin Arrangement -Pin Description Pin NO Pin Name Description RS232 TX(Transmit) RS232 RX(Receive) Ground q RS-422/485 Port 60/61 ANT-32000A User Manual...
- Page 61 ANT-32000A User Manual l Port Type -4 PIN -Pin Diagram -Pin Description Pin No. Pin Name Description RS422 RX- RS422 RX+ RS422 TX- or RS485 TRX- selectable by S/W Setup RS422 TX+ or RS485 TRX+ selectable by S/W Setup 61/61...
