2. Display Description

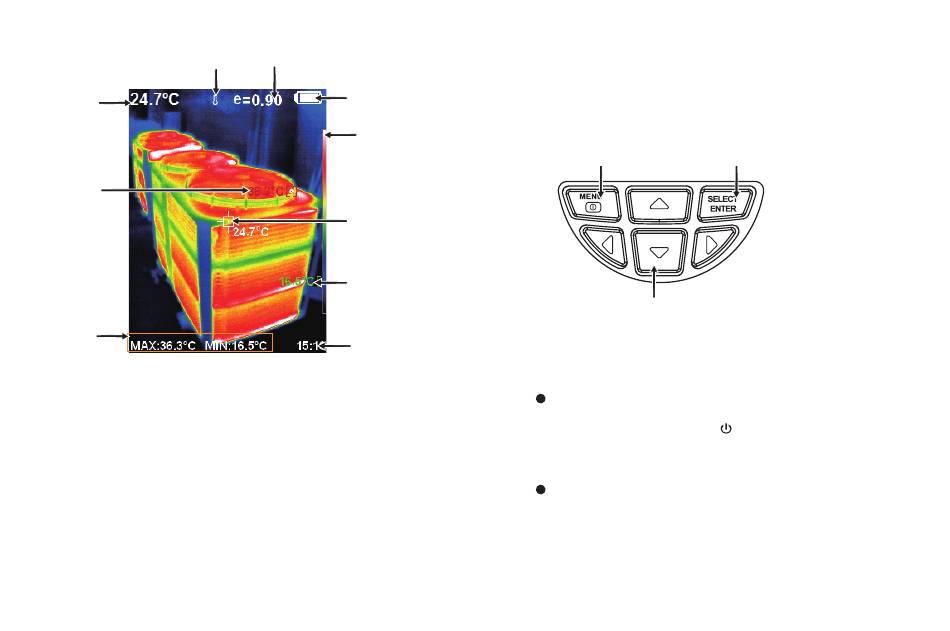

Temperature range
Central point
temperature
The highest
temperature
cursor
Maximum value/
minimum value of
field temperature
Temperature range: The range of temperature measurement.
Color code: used to mark the color corresponding to the relative temperature
from low to high in the field of version.
The central point temperature cursor: used to indicate the central position in
the screen area. The cursor color displays white. The temperature value is
displayed top left corner of the screen.
The highest temperature cursor: used to indicate the highest temperature
position in the screen area. It will move with the movement of the highest
temperature. The cursor displays red. The temperature value is displayed
at bottom left corner of the screen.
15
Current emissivity
Battery power
M
L
Color code
Temperature
cursor at
central point
The lowest
temperature
cursor
Time
The lowest temperature cursor: used to indicate the lowest temperature
position in the screen area. It will move with the movement of the lowest
temperature. The cursor displays green. The temperature value is displayed
at the central position of the screen.

3. Key Description

Menu key/On/off key Selection key/Entry key
Navigation key: Up, down, left and right

Initial Operation

Product boot/shutdown
Press and hold the " MENU/
turn the Thermal Imaging on or off.
LCD screen display
After turning on the power, the screen shows the thermal imaging
status.
Note:
Time adjustment may be required when you move the camera
between environments with widely varying ambient temperatures.
" button for more than 3 seconds to
16
