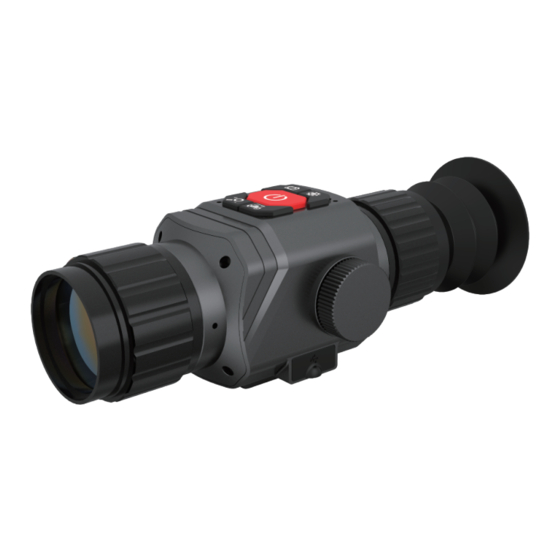

Outdoor Thermographic Telescope
User manual
Dongguan Xintai Instrument Co.,Ltd.
Add: Building F, No. 13-16, Hongye Industrial Zone, Tangxia
community, Tangxia Town, Dongguan City
Postcode:523710
Tel:+86-769-82612006
Fax:+86-769-82612005
Website:www.hti-meter.com
https://hti-instrument.com www.xintest.en.alibaba.com
HT-C8
User Manual Version 1.2. September 7，2020.
Advertisement
Table of Contents
Related Manuals for HTI HT-C8
Summary of Contents for HTI HT-C8
- Page 1 Outdoor Thermographic Telescope User manual Dongguan Xintai Instrument Co.,Ltd. Add: Building F, No. 13-16, Hongye Industrial Zone, Tangxia community, Tangxia Town, Dongguan City Postcode:523710 Tel:+86-769-82612006 Fax:+86-769-82612005 Website:www.hti-meter.com https://hti-instrument.com www.xintest.en.alibaba.com HT-C8 User Manual Version 1.2. September 7，2020.
-
Page 2: Table Of Contents
Table of Content Overview HT-C8 Outdoor Thermographic Telescope device adopts advance Overview non-cooled focal plane infrared detector and quality optical lenses Considerations and Safety Maintenance as the core. With the characteristics of convenient and quick operating system, small appearance design, expansion parts with... -
Page 3: Considerations And Safety Maintenance
Considerations and Safety Maintenance Performance index Please read the user manual carefully in order to use the product Detector type Uncooled focal plane correctly: Resolution ratio 384×288 infrared focal plane Don’t use the product in explosive, flammable, damp or LCD resolution ratio 1024×768 corrosive environment. -
Page 4: Product Structure
Product structure Eyepiece patch Diopter adjustment button Brightness adjustment Capture Battery slot On/off USB Type-C interface Zoom in / zoom out Color palette switching Lens with adjustable focus length Infrared thermal image sensor... -
Page 5: Description Of Charging Of The Battery
Description of charging of the battery Prompt: If the device is out of use for a long time, please charge it once every three months to avoid irreversible reduced capacity loss The product is provided with built-in chargeable battery. When the due to self discharge of the battery due to long-term storage. -
Page 6: Operating Description
Operating description ●Mode switching: press “ ” key to switch among four imaging modes: rainbow, hot metal, black hot and white hot. ●Power on/off: hold down “ ” key to power on /off. ●Zoom in/ zoom out: in the power-on state, press “ ”... -
Page 7: Application Of Color Palette
Application of color palette The image effect photographed with four types of color palettes. The color palette menu may change the pseudo color of infrared thermal image and provide four types of color palettes: Rainbow, hot metal, white hot, black hot. The selection of proper color palette can show the details of target Black hot White hot... - Page 8 suggests that you familiarize with the user manual of the product 1. The product enjoys warranty service within one year from the purchase first before the product is used. date if it is used normally and not dismantled and is confirmed by The following conditions are not within the warranty scope: warranty personnel for product quality problem.
