Thermal Imaging Camera
Instruction Manual
Dongguan Xintai Instrument Co.,Ltd.
Add: Building F, No. 22 Yuhua Street, Hongye Industrial Zone,
Tangxia Town, Dongguan City, Guangdong Province
Postcode:523710
Tel:+86-769-82612006
Fax:+86-769-82612005
Website:www.hytechcn.com.cn
www.xintest.com.cn
www.xintest.en.alibaba.com
Email:kevin@xintest.com.cn

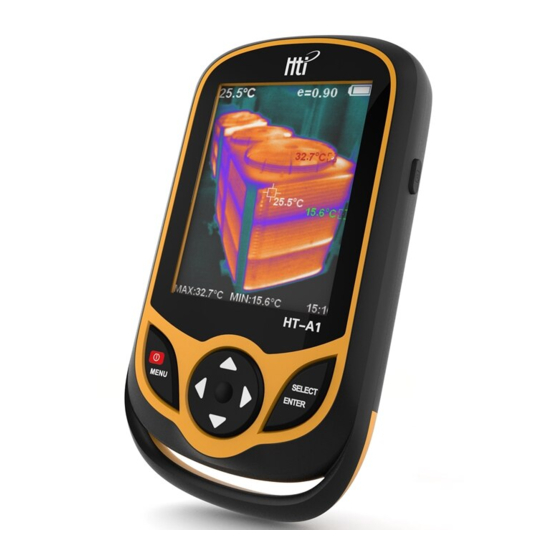

HT-A1
HT-A2
User Manual Version 1.2. Revised March 5，2019.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HTI HT-A1
Summary of Contents for HTI HT-A1
- Page 1 Thermal Imaging Camera Instruction Manual Dongguan Xintai Instrument Co.,Ltd. Add: Building F, No. 22 Yuhua Street, Hongye Industrial Zone, Tangxia Town, Dongguan City, Guangdong Province Postcode:523710 Tel:+86-769-82612006 Fax:+86-769-82612005 Website:www.hytechcn.com.cn www.xintest.com.cn www.xintest.en.alibaba.com Email:kevin@xintest.com.cn HT-A1 HT-A2 User Manual Version 1.2. Revised March 5，2019.
-
Page 2: Table Of Contents
Contents Preface 3.2. Application of color palette Limited warranty and limited responsibility 4. Introduction to “emissivity” sub-menu Safety instruction 4.1. Emissivity description Preliminary acquaintance with infrared thermal imager 4.2. Emissivity setting Overview 4.3. The emissivity value of common materials Cleaning of the products 5. -
Page 3: Preface
Preface When warranty service is repaired, please contact the service center authorized by Xintai Instruments and Apparatus Co., Ltd to obtain the Respected users: authorization information for return. Then post the product together with How are you! Thank you for purchasing our instrument. In order to use it in problem description to the service center with postage and insurance a better manner, we remind you to read the instruction for use carefully expenses prepaid. -
Page 4: Safety Instruction
Safety instruction Warning Please ensure that you have read and understood the safety precautions The warning describes the acts that may cause harm to users. Please described in the following text before using the product so that you can observe the following operation in order to avoid electric shock or personal operate it correctly. - Page 5 Don’t weld the battery without permission. Do not touch the electric wire with wet hands. Such operation may damage the battery and result in leakage and It is possible to cause electric shock when touching the electric wire explosion of the battery. with wet hands.
-
Page 6: Preliminary Acquaintance With Infrared Thermal Imager
Preliminary acquaintance with infrared The product temperature may increase after a long time of thermal imager charging. You may feel scorching heat when the hands touch the sensors. For a long time, infrared thermal imaging detection technology has become an important means to ensure Industrial safety in developed countries. The Problem caused by water condensation application field includes electric power, metallurgy, petro-chemistry, Don’t bring the instrument into low temperature environment from high... -
Page 7: Overview
Overview Cleaning of the products This product is an infrared camera that integrates surface temperature Please use damp cloth or weak soap to clean the enclosure of the device. measurement and real-time thermal image. The traditional inferred Don’t use abradant, isopropanol or solvent to clean. The lens and screen thermometer needs to measure every component one by one while it is not should be cleaned with use of cleaning agents for professional optical necessary for infrared imaging camera, thus saving time. -
Page 8: Performance Index
Charging of the battery and description Performance index Use USB data line to charge: Model HT-A1 HT-A2 The product has built-in chargeable 1800 lithium batteries. 3.2 ″ full angle TFT 3.2 ″ full angle TFT Display screen display screen display screen... -
Page 9: Product Description
Product description Micro USB 2.0 Built-in chargeable 1800 battery Power supply 1. Instruction to structure working time 2-3 hours Selectable: 5 minutes/20 minutes/ Automatic power-off time not power off automatically Infrared imaging sensor Setting command Unit、language、dat、time、information Language English、Chinese、Italian、German Product size 140mm×80mm×28mm (length ×... -
Page 10: Display Description
The lowest temperature cursor: used to indicate the lowest temperature 2. Display description position in the screen area. It will move with the movement of the lowest temperature. The cursor displays red. The temperature value is displayed at Current emissivity the central position of the screen. - Page 11 LCD screen display LED lighting After turning on the power, the screen shows the thermal imaging Press and hold the capture button to turn the LED light on or off. status. Image output Note: The saved images through capture may be checked and output Time adjustment may be required when you move the camera by connecting with a computer through Micro USB.
-
Page 12: Introduction To The Menu
Introduction to the menu 2. Introduction to “image” sub-menu Press the left of “ /MENU” key and the menu bar appears. They are 2.1.View image “image overlapping”, “image”, “color palette”, “emissivity” and “setting” submenus. Press the “ /MENU” button to enter the main menu, and select “... -
Page 13: Delete Images
2.2. Delete images The following is the image of the same object with selection of different color palettes. When viewing the images, the screen will show the prompt of “Delete photo？” by pressing “ ” key. If “yes” is selected at the moment, press “... -
Page 14: Introduction To "Emissivity" Sub-Menu
4. Introduction to “emissivity” sub-menu 4.2. Emissivity setting The product is provided with four types of object measurement modes: 4.1. Emissivity description Coarse object (0.95) The emissivity of the product can be adjusted from 0.01 to 1.00 with the Semi-matte object (0.85) default value of 0.95. -
Page 15: The Emissivity Value Of Common Materials
If you select "self-defined" emissivity, press the " SELECT/ENTER " button 5. Introduction to “setting” sub-menu to enter the editing state.Press “ ” / “ ” keys to select the number Press “ /MENU” key to select the “ ”(setting) option in the main to be changed, press “... -
Page 16: Auto Shutdown Setting
5.1. Auto shutdown setting 5.6. Time setting After entering the "Settings" sub-menu, select " /MENU" (automatic As shown in the figure, after selecting “ ” (set time), press “ ” shutdown), press navigationThe “ ” button in the button enters the in the navigation key to enter the setting time. -
Page 17: Enable/Disable Of The Highest And Lowest Temperature Cursor
Troubleshooting 5.7. Enable/disable of the highest and lowest temperature cursor If you encounter with any problem when using the thermal image device, please use the following table for repair.If the problems are not solved, As shown in the figure, after selecting “ ”... - Page 18 尺寸：9cm X 10cm 铜版纸 ，骑马钉 注意封面封底 必须对应首页跟尾页...
