HTI HT-105 Operation Manual

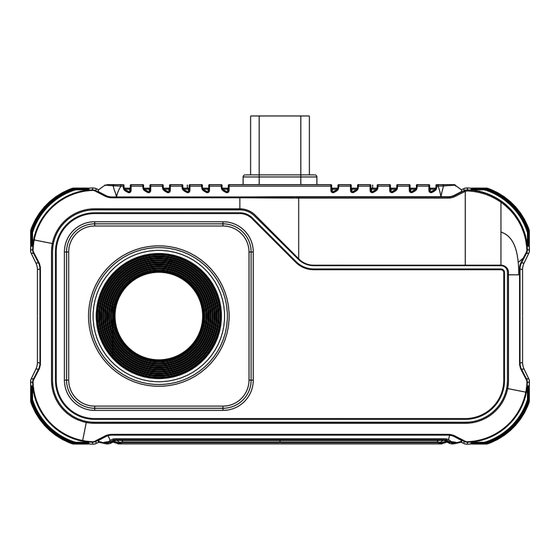

Smart mobile phone thermal imager
Hide thumbs

Advertisement

Table of Contents

SMART MOBILE PHONE THERMAL IMAGER
OPERATION MANUAL
HT-105
HT-203U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT-105 and is the answer not in the manual?

Questions and answers

Related Manuals for HTI HT-105

Summary of Contents for HTI HT-105

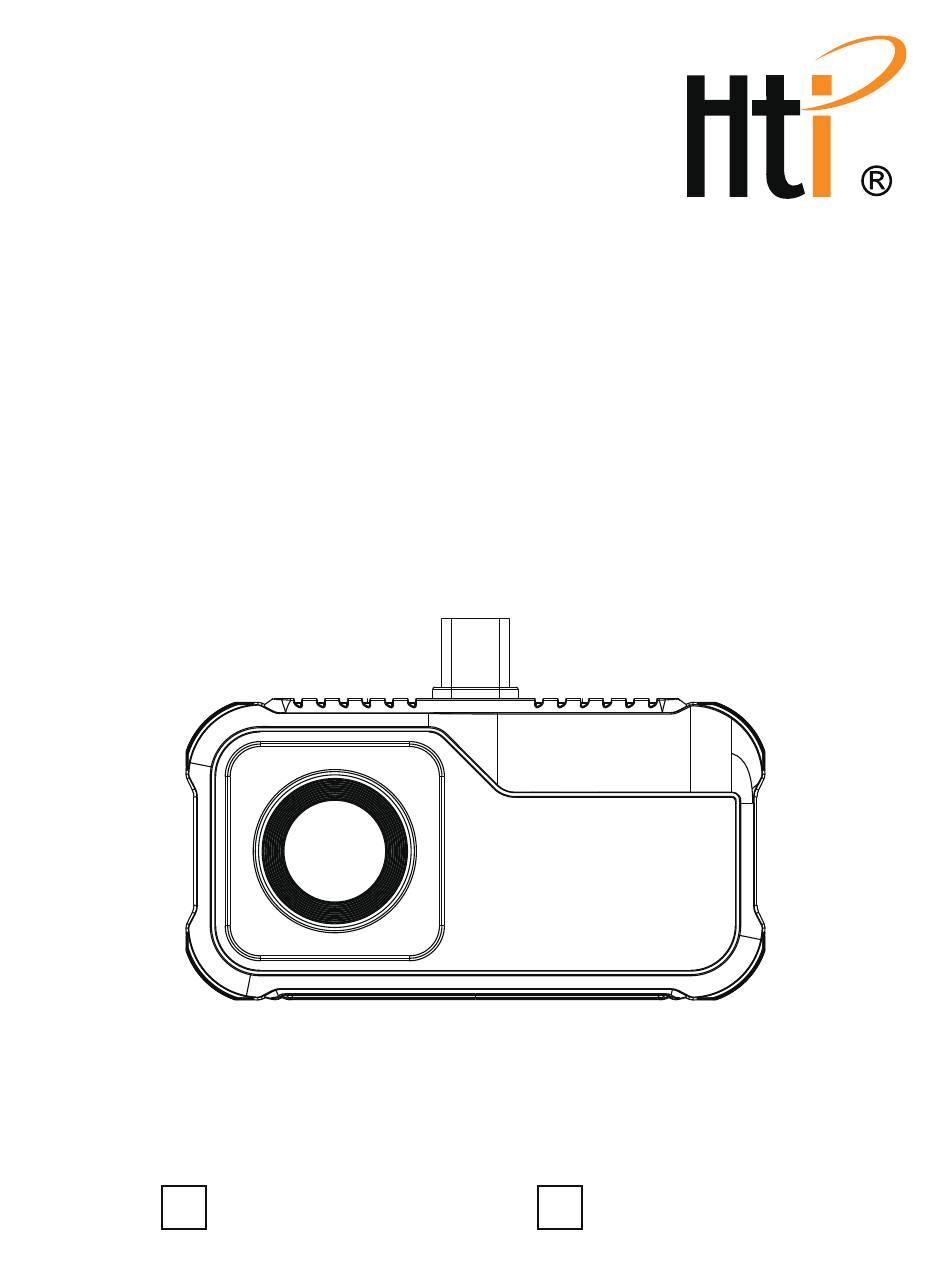

  • Page 1 SMART MOBILE PHONE THERMAL IMAGER OPERATION MANUAL HT-105 HT-203U...

  • Page 2: Table Of Contents

    Content 1. Precautions 2. Product Overview 2.1 Application Scenario 2.2 Main Functions 3. Product Use 3.1 Equipment Connection 3.2 Software Operation 3.2.1 Gallery, Photo and Video 3.2.2 Shutter Refresh 3.2.3 Temperature Measurement Analysis 3.2.4 Color Palette 3.2.5 Temperature Measurement Setting 3.2.6 Settings 4.

  • Page 3: Precautions

    1. Precautions Please read all the following information before using your device to protect you and others from injury or damage to your device. (1) Do not expose the product in the sun and other high-inten- sity radiation sources (2) Do not touch or collide the detector window and lens with hands or other objects;...

  • Page 4: Product Overview

    2. Product Overview 2.1 Application Scenario Using this smartphone thermal imager, you need to download and install the smartphone thermal image "HTI-105/203U" APP to achieve infrared observation and infrared temperature measurement function through this APP. Scan QR code to download the App 2.2 Main Functions...

  • Page 5: Product Use

    (2) Carry out infrared temperature measurement and tempera- ture analysis; (3) Take photos and videos; (4) Action control and parameter setting of the mobile phone thermal imager. 3. Product Use 3.1 Equipment Connection Insert the infrared thermal imager into the USB interface of the mobile phone.

  • Page 6: Software Operation

    3.2 Software Operation Temperature measurement analysis 3.2.1 Gallery, Photo and Video (1) “ ”Gallery: Click to view the image and video. When entering the picture list/video list, check the picture/video and click “ ” at the top right to delete or share the picture/video.

  • Page 7: Shutter Refresh

    (3) “ ”Video: click to start video recording, and click again to end video recording. The save location of video is the same as the image. 3.2.2 Shutter Refresh “ ”Shutter refresh: Click to refresh the shield. 3.2.3 Temperature Measurement Analysis Click “...
  • Page 8 point. Click the screen at this time, and the temperature information of the user-defined point will be added. (2) Line temperature measurement analysis: drag with your fingers and draw a horizontal line on the screen. It will automatically analyze the maximum temperature and minimum temperature of the horizontal line, and identify relevant information.

  • Page 9: Color Palette

    Regional temperature measurement analysis 3.2.4 Color Palette Click the “ ” to pop up the color palette interface, and you can switch between 8 types of color palettes including the white hot, black hot, blend, iron, dark brown, red hot, green hot, rainbow,as shown in the following figure.
  • Page 10 The display effects of the 8 types of color palettes are as follows: White Hot Black Hot Blend...
  • Page 11 Iron Dark Brown Red Hot Green Hot Rainbow...

  • Page 12: Temperature Measurement Setting

    3.2.5 Temperature Measurement Setting Click “ ” to pop up the settings interface, which can be set for temperature units, range, transmission rate, optical temperature, reflection temperature, temperature distance, brightness, contrast, noise reduction, details of details, or reset parameters, as shown in the figure below.

  • Page 13: Settings

    3.2.6 Settings Click “ ” to pop up the setting interface. In the interface, you can set whether to open the system camera, watermark, high/low temperature settings, and language selection. Chinese, English, Russian, as shown in the figure below.

  • Page 14: Technical Parameters

    4. Technical Parameters Product model HT-105 Infrared Amorphous silicon uncooled Detector type infrared focal plane Infrared image 160x120 resolution Pixel spacing 17μm Focal length 3.2mm Angle of view 50.0°(H)×37.2°(V) 5.31mrad IFOV Working band 8~14μm NETD ≤ 40mk@25℃,@F/1.1 Image frame rate ≤25Hz...
  • Page 15 Temperature measurement function Temperature point, line and regional measurement method temperature measurement Temperature -20 ℃ ~ 120 ℃ and 120 ℃ ~ 550 ℃ measurement range Temperature 0.3m~3m measuring distance Temperature ± 2 ° C or reading ± 2% measurement resolution System function Camera/video Supported...
  • Page 16 Product model HT-203U Infrared Amorphous silicon uncooled Detector type infrared focal plane Infrared image 256x192 resolution Pixel spacing 12μm Focal length 3.5mm Angle of view 50.0°(H)×37.2°(V) 3.43mrad IFOV Working band 8~14μm NETD ≤ 40mk@25℃,@F/1.2 Image frame rate ≤25Hz Focusing mode Free Focus Display Brightness...
  • Page 17 Temperature measurement function Temperature point, line and regional measurement method temperature measurement -20 ℃ ~ 120 ℃ and 120 ℃ ~ 550 ℃ Temperature measurement range Temperature 0.3m~3m measuring distance Temperature ± 2 ° C or reading ± 2% measurement resolution System function Camera/video Supported...
  • Page 18 Dongguan Xintai Instrument Co.,Ltd. Add: Building16, No.3, Yongtai Road, TangxiaTown, Dongguan City,Guangdong,China Postal Code: 523710 Tel: +86-769-82612006 Fax: +86-769-82612005 Website: www.hti-meter.com www.hytechcn.com.cn www.xintest.en.alibaba.com User Manual Version 1.2. October 30，2023.
