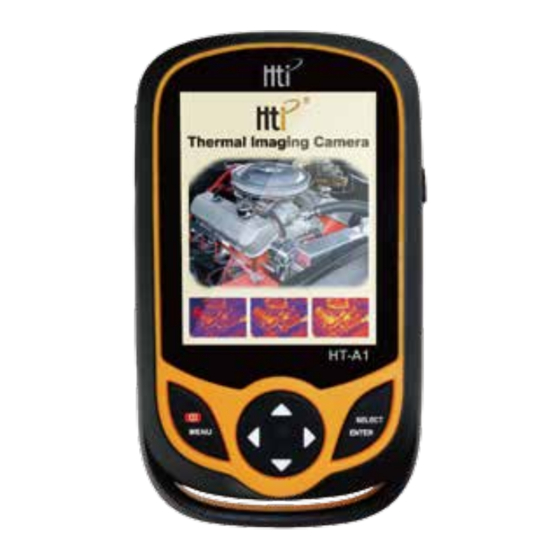

- Page 1 Thermal Imaging Camera Instruction Manual Dongguan Xintai Instrument Co.,Ltd. Add: Building F, No. 22 Yuhua Street, Hongye Industrial Zone, Tangxia Town, Dongguan City, Guangdong Province Postcode:523710 Tel:+86-769-82612006 Fax:+86-769-82612005 Website:www.hytechcn.com.cn www.xintest.com.cn HT-A1 HT-A2...
-
Page 2: Table Of Contents
1. Overview Contents This product is an inferred camera that integrates surface temperature 1. Overview measurement and real-time thermal image. The traditional inferred 2. Considerations and Safety Maintenance thermometer needs to measure every component one by one while it is not necessary for infrared imaging camera, thus saving time. -
Page 3: Considerations And Safety Maintenance
2. Considerations and Safety Maintenance 3. Performance index Please read the instruction for use carefully in order to ensure correct Type HT-A1 HT-A2 measurement result: 3.2 ″ full angle TFT 3.2 ″ full angle TFT Display screen display screen display screen Don’t use the device in explosive, flammable or corrosive environment. -
Page 4: Product Description
4. Product Description 4.2. Key Description 4.1. Instruction to structure Central point Battery power temperature Current emissivity The lowest temperature cursor Infrared imaging sensor Color code Temperature The highest cursor at temperature cursor central point Visible light camera LED lighting lamp Image capture key Micro USB Maximum value/... -
Page 5: Key Description
5. Initial Operation 4. The lowest temperature cursor: used to indicate the lowest temperature position in the screen area. It will move with the movement of the lowest 5.1 Charging: the product is provided with built-in 1800 lithium battery. temperature. The cursor displays red. The temperature value is displayed at the central position of the screen. -
Page 6: Introduction To "Image" Sub-Menu
6. Introduction to “image” sub-menu 7. Introduction to “color palette” sub-menu 7.1 Color Palette Description 6.1. View image The menu of color palette can change the false color of infrared thermal image. The product provides five types of color palette: rainbow, iron oxide red, cold color, white heat and black heat. -
Page 7: Application Of Color Palette
8.2. Emissivity setting 7.2 Application of color palette The product is provided with four types of object measurement modes: Color palette Coarse object (0.95) As shown in the figure, press “ /MENU” Semi-matte object (0.85) key to enter the main menu and select Spectra Semi-shiny object (0.60) “color palette”... -
Page 8: The Emissivity Value Of Common Materials
9. Introduction to “Setting” Sub-menu If to select “self-defined” emissivity, please press “SELECT/ENTER” key to enter the edit state. Press “ ” and “ ” keys to select the number Press “ /MENU” key to select the “setting” option in the main menu. to be changed. -
Page 9: Time Setting
9.1 Time Setting 9.2. Enable/disable of the highest and lowest temperature cursor As shown in the figure, after entering the “setting” sub-menu, select the cursor point (spot). Press “ ” key in the navigation key to enter cursor Press “ ”/“...
Need help?
Do you have a question about the HT-A2 and is the answer not in the manual?
Questions and answers
I have the my HT-A2 camera powered on and plugged into my computer but **** unable to transfer images. I have plugged and unplugged the camera into the computer and it is not showing up for access to see or select any images.
To transfer images from your HTI HT-A2 camera to your computer, follow these steps:
1. Open the USB protective cover on the camera.
2. Use a USB cable to connect the camera’s USB port to your computer.
3. The computer should recognize the device, allowing you to access the stored images.
4. Copy or save the infrared thermal images and visible images to your computer.
5. When finished, safely eject the device by selecting “pop out device safely” before disconnecting the USB cable to avoid file system issues.
It is recommended to use the provided USB cable or a high-quality USB cable for better performance.
This answer is automatically generated
Hell, how dose wifi work how to connect it and how to use it for online image
