ADLINK Technology EPS-4008 Quick Start Manual

EPS-4008

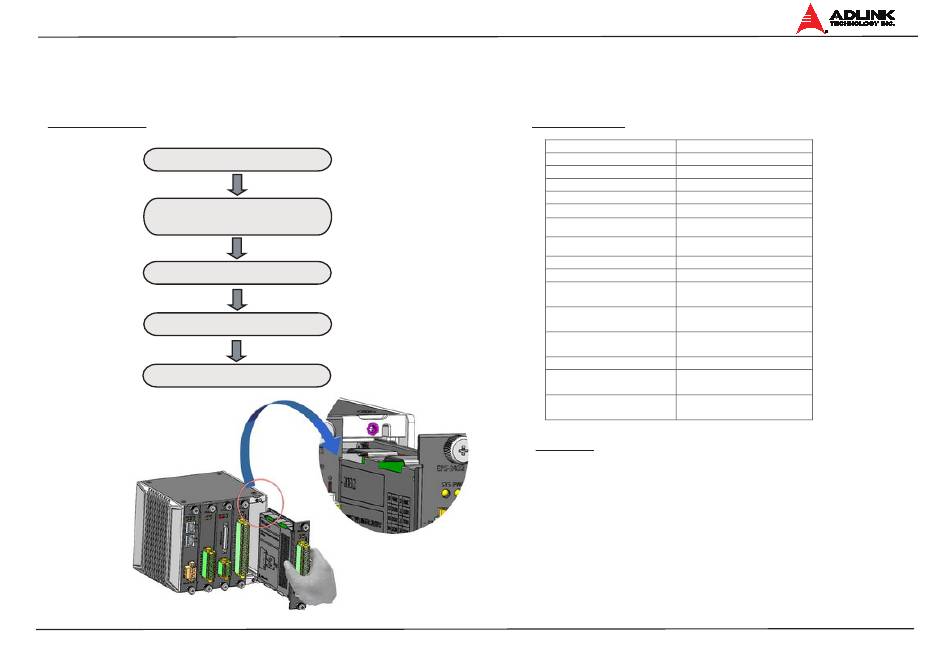

Getting Started
Ensure the EPS-9905 and EPS-6000
are configured and operational
Slide the EPS-4008 module into
any vacant slot (from Slots 1 to 4) along
the guide groove until firmly seated
Tighten the thumbscrew and
complete signals wiring
Power up the EPS system
Configure and generate the ESI file
with LinkMasterPro
P/N 50-40294-5000
Quick Start Guide
EPS-4008
Remote 8-CH ±10V Analog Output Module for EtherCAT
™
Specifications
Channels 8 Single-ended
Output Range ±10V
Resolution 16 bit
Sampling Rate 100KHz
Offset Error ± 0.2mV
Gain Error ± 0.05% of FSR
Offset Drift
± 0.0075mV /°C
Gain Drift
± 0.00025% /°C of FSR
Output Current Capacity 5 mA
Power On State Relay off
± 24V / Relay off
Voltage Protection
When error voltage occurs
Power Consumption
< 450mW (max.)
from Chassis
Thermal Dissipation < 2.55W (max.)
(at max temp.) @ EVCC=24V+10%
Operating Temperature -20 - 60°C
Isolation (Channel-to-
2kV (DC)
DGND)
Isolation (Channel-to-
2kV (DC)
Chassis)
Features
• 8CH 100kS/s ±10V
single-ended analog output
• IEC 61131 compliant
• Compact 100 (L) x 100 (H)
mm size
• Loopback circuitry for output
monitoring
Rev. 2.00
• Operable in -20°C to 60°C
environments
• Hot swappable under
sustained power
• Module temperature
self-diagnostics
May 8 , 2015
