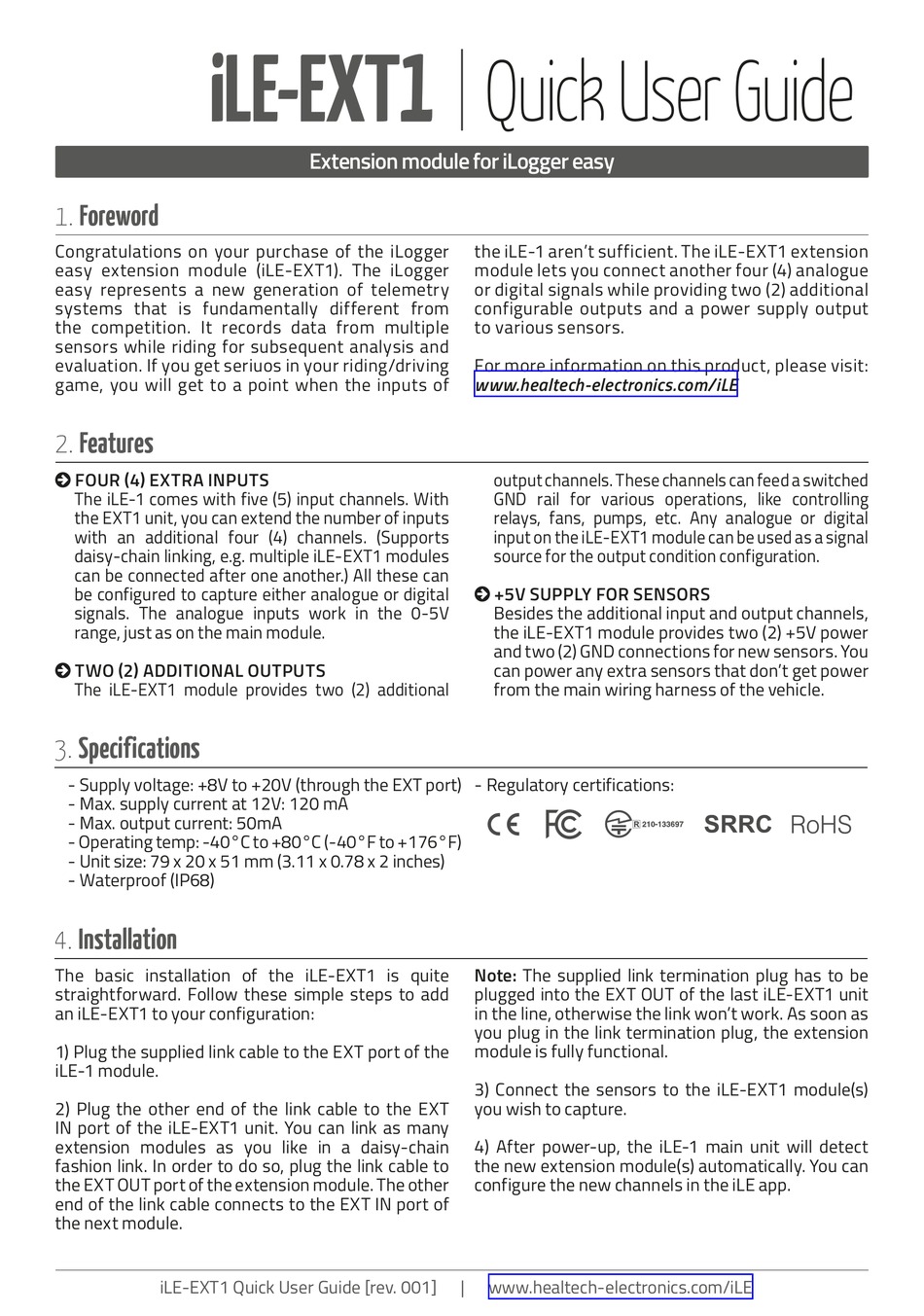

Healtech iLE-EXT1 Quick User Manual

iLE-EXT

1. Foreword

Congratulations on your purchase of the iLogger
easy extension module (iLE-EXT1). The iLogger
easy represents a new generation of telemetry
systems that is fundamentally different from
the competition. It records data from multiple
sensors while riding for subsequent analysis and
evaluation. If you get seriuos in your riding/driving
game, you will get to a point when the inputs of

2. Features

 FOUR (4) EXTRA INPUTS
The iLE-1 comes with five (5) input channels. With
the EXT1 unit, you can extend the number of inputs
with an additional four (4) channels. (Supports
daisy-chain linking, e.g. multiple iLE-EXT1 modules
can be connected after one another.) All these can
be configured to capture either analogue or digital
signals. The analogue inputs work in the 0-5V
range, just as on the main module.
 TWO (2) ADDITIONAL OUTPUTS
The iLE-EXT1 module provides two (2) additional

3. Specifications

- Supply voltage: +8V to +20V (through the EXT port)
- Max. supply current at 12V: 120 mA
- Max. output current: 50mA
- Operating temp: -40°C to +80°C (-40°F to +176°F)
- Unit size: 79 x 20 x 51 mm (3.11 x 0.78 x 2 inches)
- Waterproof (IP68)

4. Installation

The basic installation of the iLE-EXT1 is quite
straightforward. Follow these simple steps to add
an iLE-EXT1 to your configuration:
1) Plug the supplied link cable to the EXT port of the
iLE-1 module.
2) Plug the other end of the link cable to the EXT
IN port of the iLE-EXT1 unit. You can link as many
extension modules as you like in a daisy-chain
fashion link. In order to do so, plug the link cable to
the EXT OUT port of the extension module. The other
end of the link cable connects to the EXT IN port of
the next module.
iLE-EXT1 Quick User Guide [rev. 001]
Extension module for iLogger easy
the iLE-1 aren't sufficient. The iLE-EXT1 extension
module lets you connect another four (4) analogue
or digital signals while providing two (2) additional
configurable outputs and a power supply output
to various sensors.
For more information on this product, please visit:
www.healtech-electronics.com/iLE
 +5V SUPPLY FOR SENSORS
- Regulatory certifications:
Note: The supplied link termination plug has to be
plugged into the EXT OUT of the last iLE-EXT1 unit
in the line, otherwise the link won't work. As soon as
you plug in the link termination plug, the extension
module is fully functional.
3) Connect the sensors to the iLE-EXT1 module(s)
you wish to capture.
4) After power-up, the iLE-1 main unit will detect
the new extension module(s) automatically. You can
configure the new channels in the iLE app.
|
Quick User Guide
output channels. These channels can feed a switched
GND rail for various operations, like controlling
relays, fans, pumps, etc. Any analogue or digital
input on the iLE-EXT1 module can be used as a signal
source for the output condition configuration.
Besides the additional input and output channels,
the iLE-EXT1 module provides two (2) +5V power
and two (2) GND connections for new sensors. You
can power any extra sensors that don't get power
from the main wiring harness of the vehicle.
www.healtech-electronics.com/iLE
