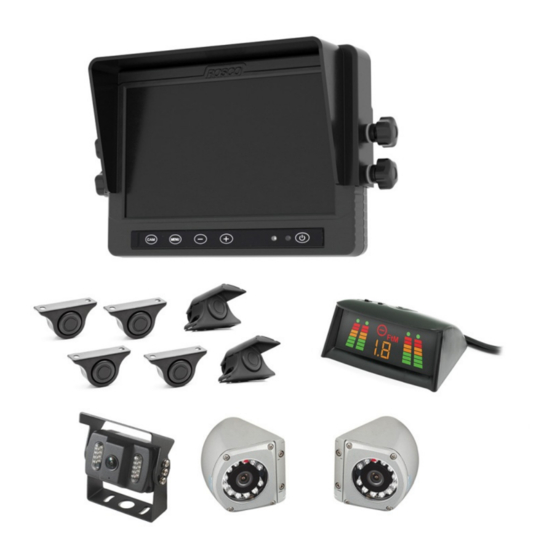

- Page 1 SAFE -T-SCOPE ® B A C K U P C A M E R A S Y S T E M S STSK7145/STSK7145BSSK 3 CAMERA SYSTEM WITH MONITOR AND BACKUP SENSORS INSTALLATION/ USER MANUAL...
-
Page 2: Table Of Contents
3 CAMERA SYSTEM WITH MONITOR AND BACKUP SENSORS STSK7145/STSK7145BSSK COMPONENT LIST AND DESCRIPTION TABLE OF CONTENTS Introduction........... . 2 Component List and Description . -
Page 3: Monitor Installation
3 CAMERA SYSTEM WITH MONITOR AND BACKUP SENSORS STSK7145/STSK7145BSSK POWER HARNESS INSTALLATION MONITOR INSTALLATION • Once the monitor is mounted, if necessary, drill a hole on the monitor mounting surface near the monitor in which to pass through the monitor cable and 24-pin connector. The hole should be no MONITOR SIDE larger than 1"... -
Page 4: Wiring Diagram
3 CAMERA SYSTEM WITH MONITOR AND BACKUP SENSORS STSK7145/STSK7145BSSK POWER HARNESS INSTALLATION STSK7145 Wiring Diagram BLUE: LEFT TURN SIGNAL BROWN: RIGHT TURN SIGNAL GREEN: REVERSE TRIGGER 2 PIN FEMALE RED: 12/24 V DC ACESSORY POWER CONNECTOR BLACK: GROUND BLADE FUSE 3A STSC101A FILTER BOX 3 PIN MALE... -
Page 5: Monitor Functions And Operations
3 CAMERA SYSTEM WITH MONITOR AND BACKUP SENSORS STSK7145/STSK7145BSSK AVAILABLE SPLIT SCREENS AND CAMERA VIEWS MONITOR FUNCTIONS AND OPERATIONS • The below views can be accessed/triggered by the methods below: NOTE: Monitor configuration is set at the factory - buttons are for matainence use •... -
Page 6: Camera Installation
3 CAMERA SYSTEM WITH MONITOR AND BACKUP SENSORS STSK7145/STSK7145BSSK CAMERA INSTALLATION CAMERA INSTALLATION NOTE: STSC101A CAMERA AVAILABLE FOR PURCHASE SEPARATELY OR AS PART OF STSK7165B KIT 1.1 REAR CAMERA INSTALLATION 1.2 CAMERA WIRING • Select a high and centered location at the rear of the vehicle and close to the rear marker lights to mount the STSC101A camera. -
Page 7: Appendix
3 CAMERA SYSTEM WITH MONITOR AND BACKUP SENSORS STSK7145/STSK7145BSSK APPENDIX APPENDIX STSM272 BSSK4000 Technical specification Technical specification PARAMETER VALUE Function 7" Tri Split TV System NTSC Resolution 800*480 Brightness ≥500cd/m^2 Video Output 1Vp-p ±.2Vpp 75ohm Power Supply 10~36 VDC Power Consumption ≤8 W Audio Out Operating Current... - Page 8 A CENTURY OF AUTOMOTIVE VISION SAFETY 90-21 144th Place, Jamaica, New York 11435 TEL (800) 227-2095 • FAX (718) 297-0323 techsupport@roscovision.com www.roscomirrors.com www.roscovision.com Lit P/N: MNLSTSK7145BSSK Lit. Revision: 1.0 Lit. Revision Date: 5/25/2022...
