- Page 1 SAFE -T-SCOPE ® R E A R V I E W B A C K U P C A M E R A S Y S T E M S STSK7965 INSTALLATION / USER'S MANUAL...

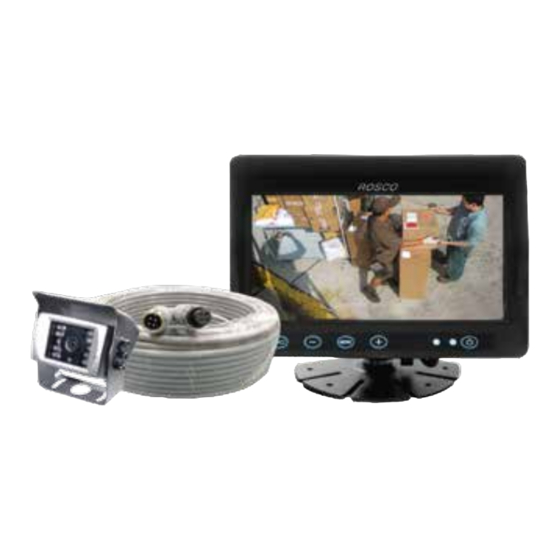

- Page 2 DUCK FOOT SUN SHIELD POWER HARNESS MOUNT Rosco Vision Systems introduces a revolutionary new backup camera system for commercial vehicles. The STSK7965 Safe-T-Scope ® backup camera system utilizes a 7'' inch monitor to display a 16:9 LCD screen when the vehicle shifts into reverse. This monitor allows the driver to see obstructions behind the vehicle for added convenience and safety.
- Page 3 Safe-T-Scope STSK7965 ® Backup Camera System MONITOR INSTALLATION CAMERA INSTALLATION fig 1 • Select a high and centered location at • Connect the red wire to an ignition switched accessory (ex. radio) power source, the rear of the vehicle to mount the STSC141 camera and connect the black wire to chassis ground.
- Page 4 Safe-T-Scope STSK7965 ® Backup Camera System STSK7965 Wiring Diagram STSM251 13 Pin Connector STSK5465/PHAR Power Distribution Harness Green wire is the reverse trigger wire, connect to vehicle GREEN (REVERSE TRIGGER, CAM 1) backup light circuit. Monitor will turn on when the vehicle shifts into reverse White wire is an optional 2nd 12V trigger WHITE (OPTIONAL CAM 2 TRIGGER)
- Page 5 Safe-T-Scope STSK7965 ® Backup Camera System SYSTEM TECHNICAL SPECIFICATIONS: FUNCTIONS AND OPERATION STSM251: (Includes STSK5465/PHAR, BAS4515, STSDF1000) MONITOR Screen size (diagonal): 7" Maximum No. of cameras: 2 Inputs/Channels • POWER Screen ratio: 16:9 When the ignition is switched on, the monitor will be in standby mode (a steady red light will Contrast ratio: 500:1 indicate that the monitor is energized, no image will appear on the screen until triggered or...
- Page 6 Safe-T-Scope STSK7965 ® Backup Camera System HOW TO SET UP YOUR SYSTEM REQUIREMENTS NOTES NOTE • No changes can be made to the monitor while the vehicle is in reverse. Never change settings while the vehicle is in operation. • Press the MENU button once to set desired brightness. Press +/- to increase/reduce the brightness. Wait 3 seconds to exit setup mode.
- Page 7 A CENTURY OF AUTOMOTIVE VISION SAFETY 90-21 144th Place, Jamaica, New York 11435 TEL (800) 227-2095 • FAX (718) 297-0323 techsupport@roscovision.com www.roscomirrors.com www.roscovision.com Lit. P/N: M11162018...
