Summary of Contents for Rosco SAFE -T-SCOPE STSK4730
- Page 1 SAFE -T-SCOPE ® B A C K U P C A M E R A S Y S T E M S STSK4730 7" MIRROR MONITOR KIT INSTALLATION/ USER MANUAL...
-
Page 2: Table Of Contents
The 7" wide-angle monitor allows the driver to see obstructions behind the vehicle, In addition, the monitor brightness automatically adjusts between day and night modes. The STSK4730 complies with FCC (USA) guidelines. The STSK4730 kit has the capability for use with three cameras. Contact your Rosco dealer to discuss camera purchasing options. NOTE •... -
Page 3: Component List And Description

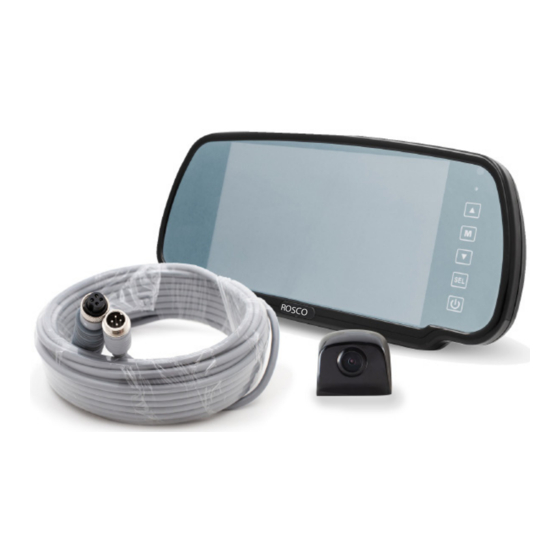

STSK4730 COMPONENT LIST AND DESCRIPTION - STSK4750B STSM244MO 7'' LCD Monitor ROSCO Power harness - 13-pin connector, STSM244PHAR 3 channel, 4-pin inputs STSM244 Mounting kit STSDF1003 High-mount, wide angle look-down camera with night vision STSC130 Available in black (STSC130B, shown),... -
Page 4: Monitor Installation And Wiring Instructions
The STSM244 7" Windshield Mirror Monitor is designed to attach to the windshield button of the vehicle. An additional windshield button is included with the STSK4730 kit. The standard mount STSDF1003 is compatible with many common vehicle models. Please contact your Rosco dealer for alternative mounting options. TORQUE 4 SCREWS TO 7 IN-LBS Fig. A WIRING INSTRUCTIONS •... -
Page 5: Wiring Diagram
STSK4730 WIRING DIAGRAM For camera options, contact your Rosco dealer. -
Page 6: Camera Installation
Safe-T-Scope 7" MIRROR MONITOR KIT ® CAMERA INSTALLATION Fig. C EXAMPLE CAMERA INSTALLATION Camera location 1. Select a high and centered location at the rear of the vehicle to mount the camera. IMPORTANT: When selecting this location it is highly recommended that the image transmitted by the camera show the rear bumper and area behind the vehicle. -
Page 7: Monitor Functions And Operations
Scroll through camera channels. If no camera is connected, the display will be blue. 5. POWER ON/OFF Turns the LCD on or off. The default state of the LCD is OFF when power is connected. The monitor will display any triggered input regardless of LCD power status. ROSCO Fig. D... -
Page 8: Monitor Settings And Menus
Safe-T-Scope 7" MIRROR MONITOR KIT ® MONITOR SETTINGS AND MENU NOTE: Press the M button to enter the menu and the button to change pages. ^ or v MENU SETTINGS PAGE 1: PICTURE Press the M button (see preceding page) to access this menu. Press M again to scroll through the lists of parameters. - Page 9 STSK4730 MONITOR SETTINGS AND MENU NOTE: Press the M button to enter the menu and the button to change pages. ^ or v MENU SETTINGS PAGE 3: OPTION This menu allows the user to adjust the language, mirroring of the camera, aspect ratios, and the automatic dimming of the monitor.
- Page 10 ACC3-TIME only works when the trigger is turned off, not the monitor. 1. Rosco cameras are formatted for NTSC. It is recommended to leave parameters as is. 2. The guideline parameter only appears on Camera 3 (Camera 3 - Rear, trigger 3) and if the monitor is...
-
Page 11: Technical Specifications And Notes
STSK4730 STSK4730 TECHNICAL SPECIFICATIONS PARAMETER VALUE Screen Size (Diagonal) 7" (18 cm) Dimensions (L x W x T) 10" x 4.3" x 1.2" (25.4cm x 11cm x 3cm) TV System CVBS - NTSC Video Inputs 1 Input Input Format 4-pin Trigger Inputs Resolution 800 x 480 pixels... - Page 12 A CENTURY OF AUTOMOTIVE VISION SAFETY 90-21 144th Place, Jamaica, New York 11435 Tel. - (718) 526-2601 • Toll Free - (800) 227-2095 techsupport@roscovision.com www.roscovision.com Lit P/N: MNLSTSK4730 Lit. Revision: 2.0 Rev. Date: 3/29/2022...
