NAL RESEARCH CORPORATION 9602-A Quick Start Manual

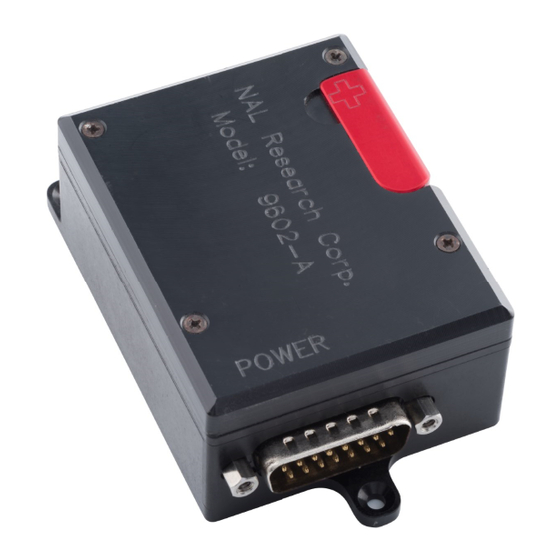

DEVICE DESCRIPTION: The 9602-A is a tracker designed to operate with the Iridium low-Earth orbit satellite network. It

comprises an Iridium 9602 transceiver module; and a 50-channel GPS receiver. The 9602-A allows only SBD connectivity

to the Iridium satellite network.

 LED Settings: There are five (5) status LEDs that provide quick visual check to ensure proper operations . These

include Power indicator, Iridium signal strength, GPS availability, SBD transmission status, and Emergency mode

alert. NOTE: The 9602-A ships with all LEDs set to ACTIVE.

 Connector: On the backside of the 9602-A, there is a mini DB-15 multi-interface connector.

 Emergency Button: This is located on the top side of the device.

IMPORTANT: The 9602-A antennas must have a clear view of the sky during transmission

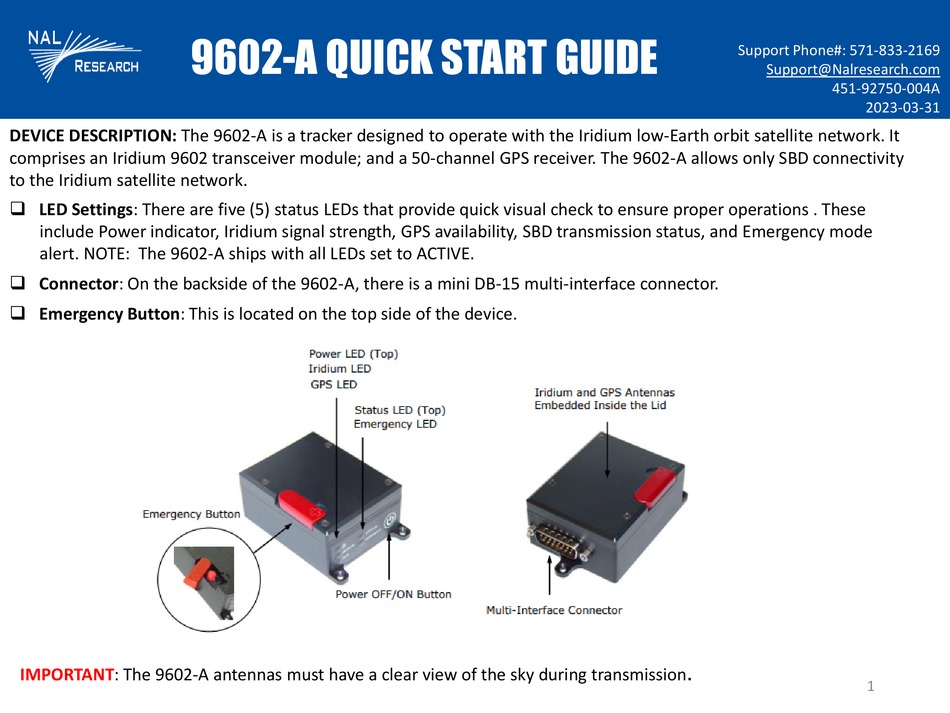

9602-A QUICK START GUIDE

Support Phone#: 571-833-2169

Support@Nalresearch.com

451-92750-004A

2023-03-31

Table of Contents

Need help?

Do you have a question about the 9602-A and is the answer not in the manual?

Page 1 451-92750-004A 2023-03-31 DEVICE DESCRIPTION: The 9602-A is a tracker designed to operate with the Iridium low-Earth orbit satellite network. It comprises an Iridium 9602 transceiver module; and a 50-channel GPS receiver. The 9602-A allows only SBD connectivity to the Iridium satellite network.
Page 2 POWER ON DEVICE The 9602-LP accepts either +3.6 VDC to +5.3 VDC input through pin #1 or +6.0 VDC to +32 VDC input through pin #9. The 9602-A ships with hardware set for +6.0 VDC to +32 VDC input. HRC-24-12 Data/Power Cable Ensure the device has a clear view of the sky.
Page 3  Activate: Quickly press and release the Emergency button to trigger emergency tracking. When emergency tracking is active, the Emergency LED illuminates. You can also activate emergency tracking via input Pin S0.  Deactivate: Press/hold the Emergency button longer than three (3) seconds to take the 9602-A out of emergency tracking.
