NAL RESEARCH CORPORATION 9602-AB Quick Start Manual

DEVICE DESCRIPTION: The 9602-AB Tracker is an ultra-low power consumption tracker designed for SBD communication

using the Iridium satellite network. It comprises internal Iridium antenna, GPS antenna, and an internal Li-ion battery.

The 9602-AB can send either standard or 256-bit AES-encrypted GPS reports at a pre-programmed interval ranging from

once every 60 seconds to once every seven (7) days. The interval can be changed via SatTerm or AT commands using a

Data Terminal Equipment (DTE).

 IMPORTANT: The 9602-AB antennas must have a clear view of the sky during transmission.

 LED Settings: There are five (5) status LEDs that provide quick visual check to ensure proper operations . These

include Power indicator, Iridium signal strength, GPS availability, SBD transmission status, and Emergency mode

alert. NOTE: The 9602-AB ships with all LEDs set to ACTIVE.

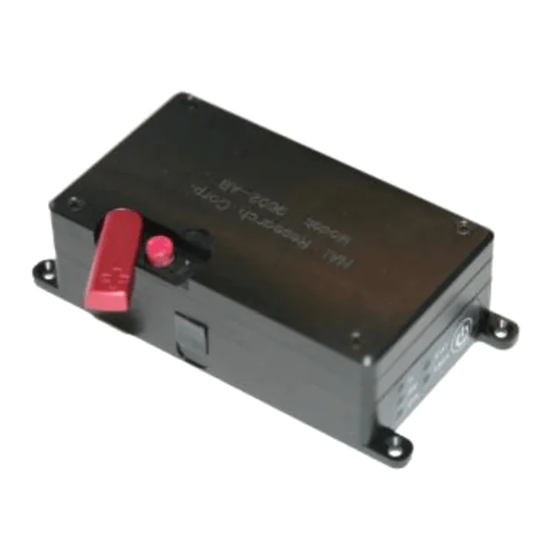

Iridium and GPS Antennas

Embedded Inside the Lid

USB-Mini Connector

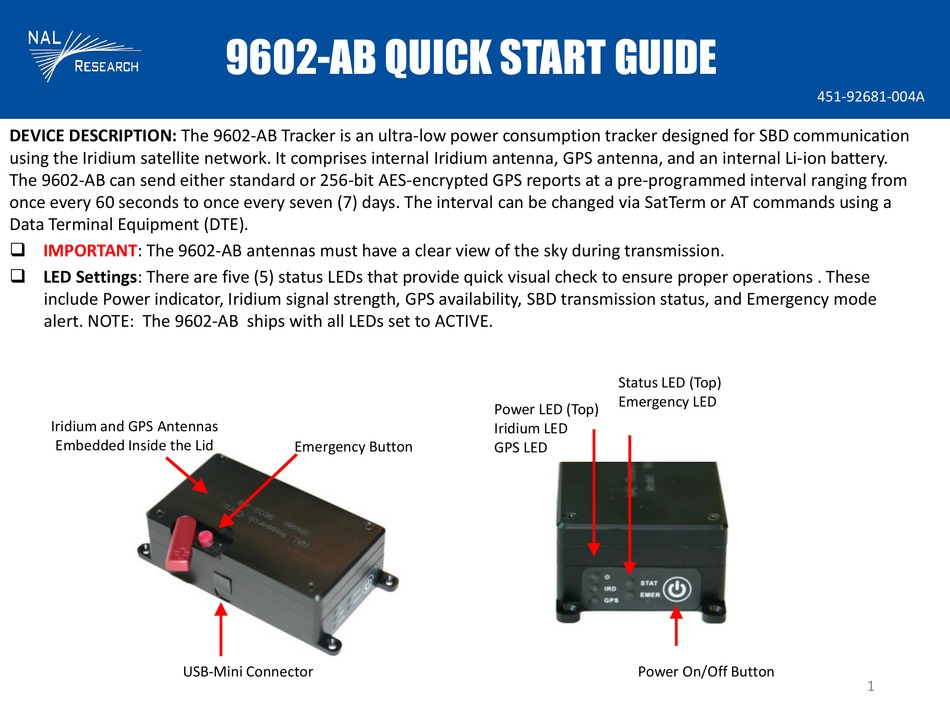

9602-AB QUICK START GUIDE

Emergency Button

Status LED (Top)

Emergency LED

Power LED (Top)

Iridium LED

GPS LED

Power On/Off Button

451-92681-004A
