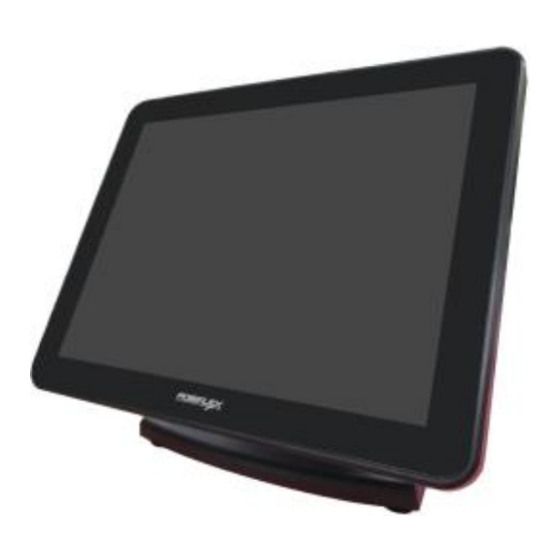

TM-3112HDMI
POS Monitor User Manual
19600999010 Ver. A0
http://www.posiflex.com
Package Contents
POS Monitor with Base Stand.........(x1)
Power Adaptor...........................(x1)
HDMI Cable..............................(x1)
USB Type B to USB Type A Cable...(x1)
User Manual..............................(x1)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the TM-3112HDMI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX TM-3112HDMI

Summary of Contents for POSIFLEX TM-3112HDMI

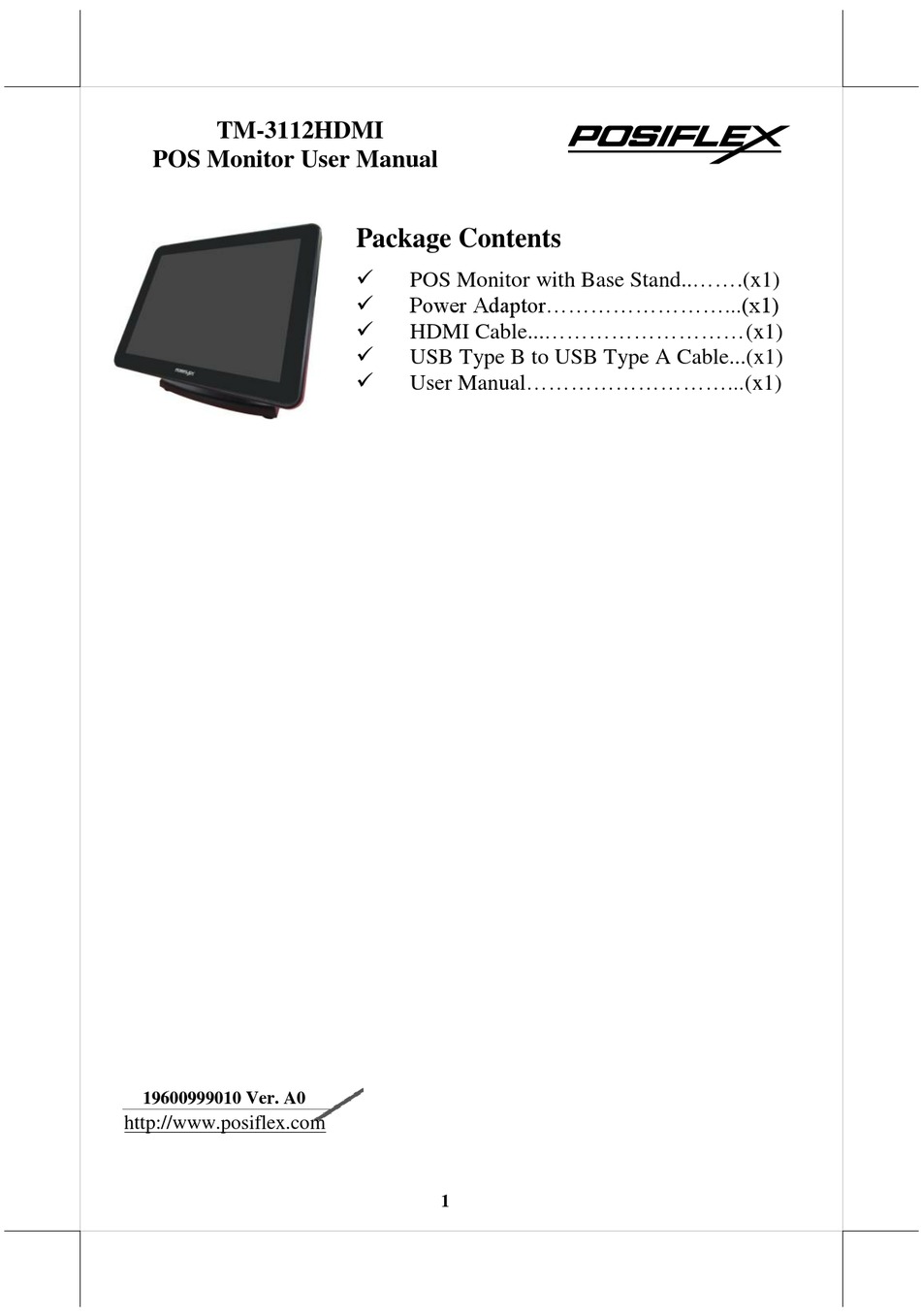

  • Page 1 TM-3112HDMI POS Monitor User Manual Package Contents  POS Monitor with Base Stand..…….(x1)  Power Adaptor……………………...(x1)  HDMI Cable...………………………(x1)  USB Type B to USB Type A Cable...(x1)  User Manual………………………...(x1) 19600999010 Ver. A0 http://www.posiflex.com...
  • Page 2 SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications.
  • Page 3 Views of TM-3112HDMI Front View TM-3112HDMI P-CAP Touch Panel Status LED Indicator Base Stand Rear View Side Mount Cover OSD Button EXT Button ＋ Button Cable Cover － Button / Cable Exit Power Button Introduction to the I/O Ports USB (Type B) Port...
  • Page 4 Connecting Cables The base stand of TM-3112HDMI features its own cable management to help you well organize the cords. The following will provide some useful cable- routing instructions for you to connect HDMI cable, power adapter, or USB cable to TM-3112HDMI.
  • Page 5 After tilting the screen all the way down, push back the cable cover. Please also make sure that cables can be routed through the cable exit. HDMI Cable Connect to POS Monitor Connect to POS Terminal USB Type B to USB Type A Cable USB Type B Connector USB Type A Connector Connect to POS Monitor...
  • Page 6 Click on the screen you want to use as the secondary touchscreen display. Powering ON/OFF your Monitor To start up TM-3112HDMI, please make sure that the monitor is well connected to the POS terminal and the power is supplied to the monitor through POS terminal.

  • Page 7: Power Led Indicator

    ON, solid green System Standby System power OFF Installing Drivers Please visit Posiflex official website to download and install the related drivers. http://www.posiflex.com/en-global/Download/download) Setting up Display Resolution for Your Monitor The below chart defines the list of recommended display settings for TM- 3112HDMI.

  • Page 8: Using The Osd Menu

    Through this section, it is expected to familiarize you with the options which are accessible via OSD menu, and to optimize your experiences with TM-3112HDMI. Power & OSD Buttons Power & OSD buttons are available on the rear, left-hand side of the LCD monitor.
  • Page 9 Display Signal Source Selection TM-3112HDMI supports VGA and HDMI two different display inputs. The following instructions are provided to help you to select or confirm your display signal source. Firstly, press the EXT button to access the selection menu. Please refer to the picture.

  • Page 10: Auto Adjustment

    OSD Options Please refer to the following table for further explanation of the accessible items. OSD Menu Sub-menu items & Description Options  Backlight Picture Press the “＋” button to increase backlight intensity; Press the “－” button to decrease backlight intensity. ...
  • Page 11 OSD Menu Sub-menu items & Description Options  Gamma Press the “＋” and “－” button to make gamma Color settings.  Color Temp Press the “＋” and “－” button to make color temperature settings.  Hue Press the “＋” and “－” button to make hue settings. ...
  • Page 12 1 x USB Type B port + 1 x USB Type A port DC-Jack 1 x 12V DC-IN jack ※ The product information and specifications are subject to change without prior notice. To get the detailed information on TM-3112HDMI, please check this model from Posiflex Global Website (http://www.posiflex.com/en-global/Download/download).
