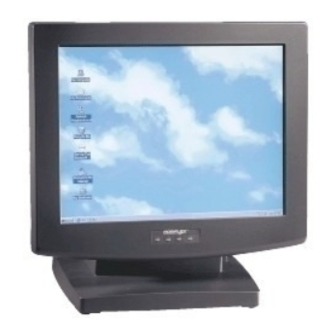

POSIFLEX TM4000 Series User Manual

TM4000 Series
Touch Monitor
USER'S MANUAL
I. FEATURES
Most stable touch monitor for industrial and commercial use
Application covers POS, POI (Kiosk), -Factory Automation etc.
High quality 12.1"/15" TFT LCD panel with scaling function for full screen display
Resistive type extra long life touch panel with touch resolution 1024 x 1024
Recommended. LCD resolution: 800 x 600 for 12.1" and 1024 x 768 for 15"
1 up 3 down USB Hub (option), relay PS/2 keyboard & PS/2 mouse connectors
Tilt and height adjustable yet robust and wobble free construction
Spill proof and easy maintenance structure allowing easy cleaning
Touch functions include left/right button, double click, drag & drop
Touch beep can be pitch adjusted and enabled/disabled by software control

FCC NOTICE

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to
comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to
take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the authorized
technicians. The user should consult his/her dealer for the problem happened. Warranty voids if the user does not follow
the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.

ABOUT THIS MANUAL

This manual assists the user to utilize the TOUCH Monitor TM4000 series. These series provide versatile font
formats and support various instruction sets. These series of products receive instructions in serial communication
protocols and is capable of entering pass through mode so that all instructions received pass on to next connected serial
device if properly configured.
The manufacturer of the TM4000 series heartily apologizes to the user for reserving the right to change or to
modify this manual without notice due to the rapid and constant progress and improvement on science and technology.
The user may always obtain the most up to date information through any of our web sites: http://www.posiflex.com.tw,
http: //www.posiflexuk.com, http://www.posiflexusa.com.
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Mustek Corp..
Other brand and product names are trademarks and registered trademarks and service marks of their respective
owners.
CMANUTM4000-1
Rev. : A
Copyright Mustek Corp. 2001
