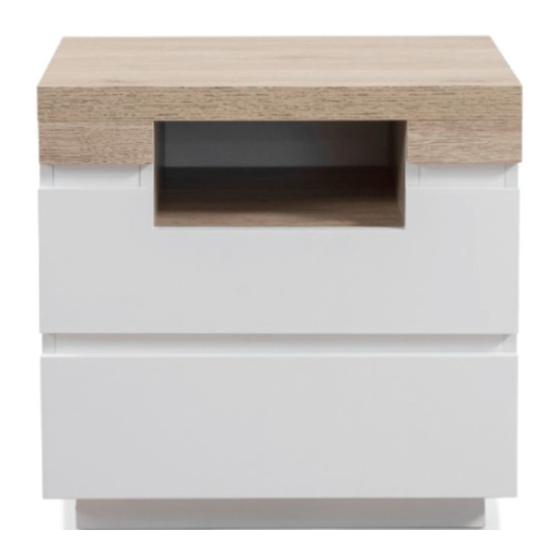

Mocka Sadie Bedside Table Assembly Instructions Manual

Sadie
Bedside Table
Thank you for your purchase.
Please follow the instructions below for correct assembly
A B C
bolt locking dowel
x44 nut x44 x16
G H I
L2
L1
wedge screw slide
x4 rail x2
x4
Hardware Supplied
Phillips screwdriver and hammer required
For quicker assembly, we recommend the use of a power drill on a low-speed setting.
*We recommend using a Flathead screwdriver to tighten all locking nuts 100% before first use.
Please clear any loose wood from the locking nut holes before inserting the nut to ensure it locks 100%.
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
F
D E
small screw
long screw
screw x24 x8
x8
J K L
J1
J2
plastic
slide
allen key
glides x6
rail x2
x1
WARNING: Any furniture that is not anchored to a wall has
V W the potential to tip over in certain circumstances, i.e. if a
child attempts to climb up on the furniture or in the event
of an earthquake. Accordingly, we recommend that all
furniture is anchored to a wall. We supply a free safety
wall anchor with all furniture sold and we recommend
these are used to prevent your product tipping. The fixing
device provided should fit most wall types, but please
note that different wall materials may require different
safety screw
fixing devices from those supplied.
x1
strap x1
X Y
wall
wall
anchor
screw
x1
x1
Z
washer
x2
Wall Strap
1
