Mocka Sadie Assembly Instructions Manual

Sadie

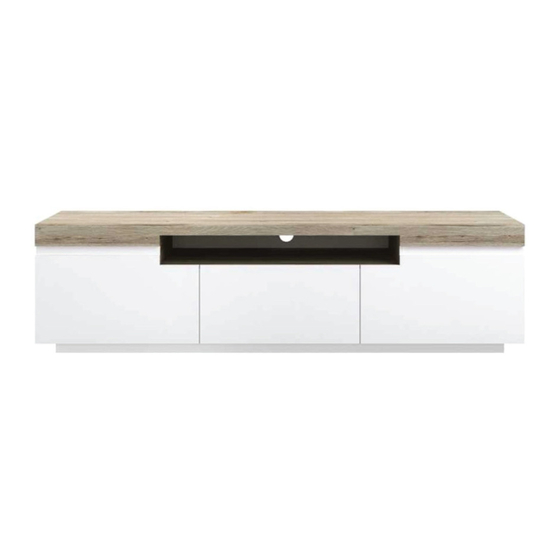

Entertainment Unit - Large

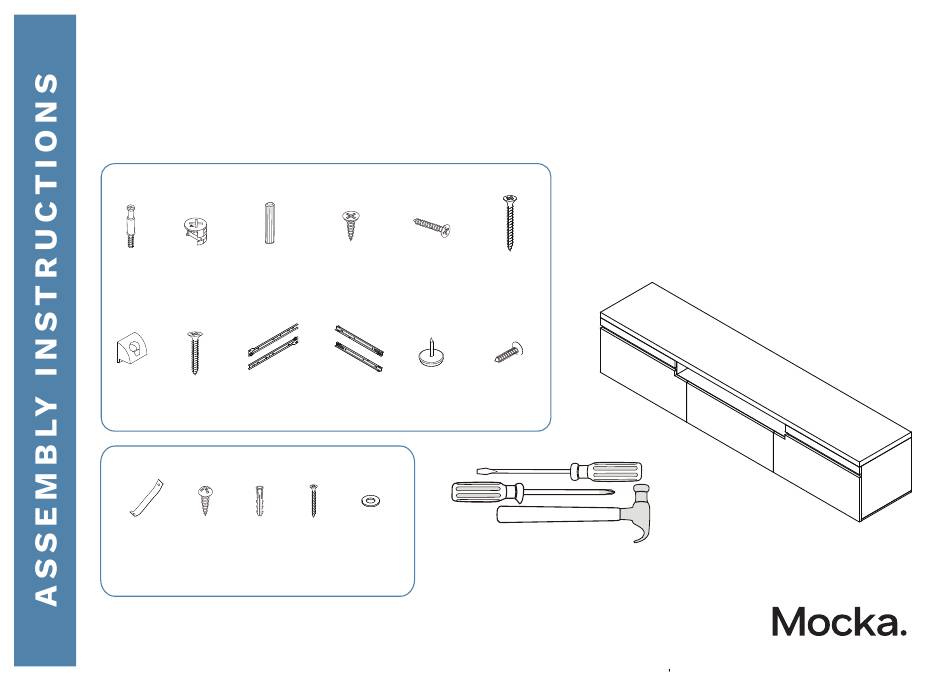

Thank you for your purchase.
Please follow the instructions below for correct assembly
A B C
locking
bolt dowel
nut x61 x24
x61
I
G H
I2
wedge screw slide
x4
x4 rail x3
Hardware Supplied
V W X
safety screw wall
x2
strap x2 anchor
x2
Wall Strap
mocka.co.nz I mocka.com.au I PO BOX 18, Pinkenba QLD 4008
D E
screw
small screw
x30 x20
J K
J2
I1
J1
slide plastic
rail x3 glide x10
Y Z
wall washer
screw x4
Phillips & Flathead screwdrivers
x2
and hammer required.
For quicker assembly, we recommend
the use of a power drill on a low-speed setting.
WARNING: Any furniture that is not anchored to a wall has the poten-
tial to tip over in certain circumstances, i.e. if a child attempts to climb
F
up on the furniture or in the event of an earthquake. Accordingly, we
recommend that all furniture is anchored to a wall. We supply a free
safety wall anchor with all furniture sold and we recommend these are
used to prevent your product tipping. The fixing device provided should
fit most wall types, but please note that different wall materials may
require different fixing devices from those supplied.
long screw
x12
N
screw
x 2
