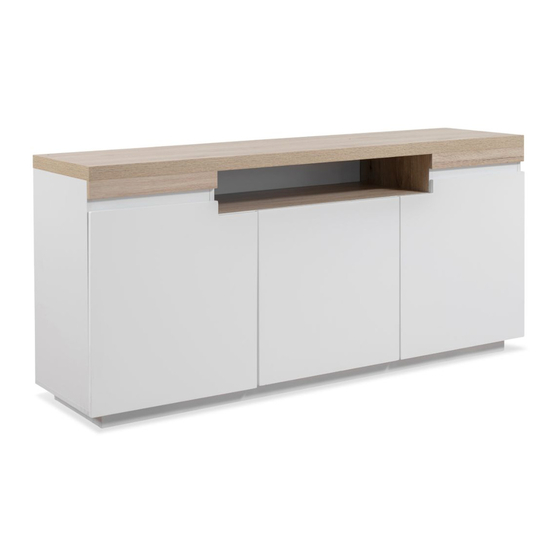

Sadie Buffet Three Door
Assembly Instructions
Thank you for your purchase. Please follow the instructions for correct assembly.
While we took great effort to ensure these assembly instructions were correct at
the time of printing, sometimes updates are required post production. For the
most up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
B
A
dowel
screw
x24
x12
G
H
wedge
screw
hinge
x8
x8
WARNING:
Any furniture that is not anchored to a wall has the potential to tip over in certain
circumstances, i.e. if a child attempts to climb up on the furniture or in the event of an earthquake.
Accordingly, we recommend that all furniture is anchored to a wall. We supply a free safety wall anchor
with all furniture sold and we recommend these are used to prevent your product tipping. The fixing device
provided should fit most wall types, but please note that different wall materials may require different fixing
devices from those supplied.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
E
bolt
locking
screw
x48
nut x48
x36
J
K
I
hinge
plastic
x4
x2
glide x10

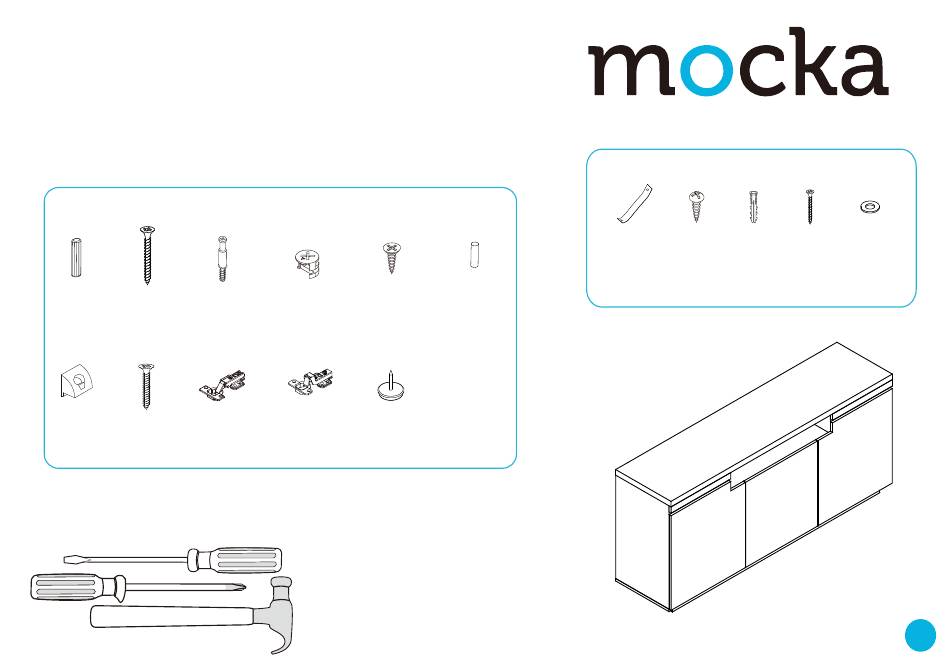

Hardware Supplied
Phillips & Flathead screwdrivers
and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
F
safety
strap x2
shelf plug
x12
V
W
X
Y
screw
wall
wall
x6
anchor
screw
x2
x2
Wall Strap
Z
washer
x4
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sadie Buffet Three Door and is the answer not in the manual?

Questions and answers

Summary of Contents for Mocka Sadie Buffet Three Door

  • Page 1 Phillips & Flathead screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 2 Sadie Buffet Three Door Assembly Instructions Panel layout Insert 4x bolts (C) into panels [3] and panel [4]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 3 Insert 16x bolts (C) into panel [2]. Tighten with a screwdriver. Insert 4x bolts (C) into panel [12]. Insert 4x bolts (C) into panels [7] and [8]. Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 4 Attach panels [3] and [7] to panel [10] secure with 4x locking nuts (D) 4x locking nuts (D). Tighten with a screwdriver. Attach panels [4] and [8] to panel [10] secure with 4x locking nuts (D) Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 5 Attach panel [12] to panels [7] and [8] using 4x dowels (A) and secure secure with 8x locking nuts (D). Tighten with a screwdriver. with 4x screws (B). Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 6 Attach panels [13] and [14] to panel [12] using 4x dowels (A) and secure with 4x locking nuts (D). Tighten with a screwdriver. along the grooves between the panels [3] and [4]. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 7 Attach panels [5] to panels [13] and [14] secure with 4x screws (w), Attach panel [2] to panels [3], [4], [13] and [14] using 8x dowels (A) and Tighten with a screwdriver. secure with 8x screws (B), Tighten with a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 8 [16] using 8x locking nuts (D). Tighten with a screwdriver. Tighten with a screwdriver. Attach 10x plastic glides (K) to the panels [15] and [16] using a hammer as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 9 Insert 12x shelf plugs (F) into the unit at the desired height for the shelves . rest the shelf panel [11] onto them. Ensure the shelves are balanced and stable. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 10 Attach hinges on panels [3], [4] and [14] to the unit using 24x screws (E). Attach 2x hinges (J) to panel [18] using 4x screws (E). Tighten with Tighten with a screwdriver. Ensure the doors open and close easily. a screwdriver. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 11 Fasten to the wall using 2x washers (Z), 2x wall anchors (X) and 2x screws (W). Tighten with a screwdriver. 2x wall screws (Y). Ensure unit is balanced and steady before use. You’re done, enjoy! mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
  • Page 12 MOVE DOOR BACK OR holes loosen 2 screws in oval holes. Screw in 2 screws in Loosen this screw a bit. Re-tighten this screw. FORTH holes a bit. round holes mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
