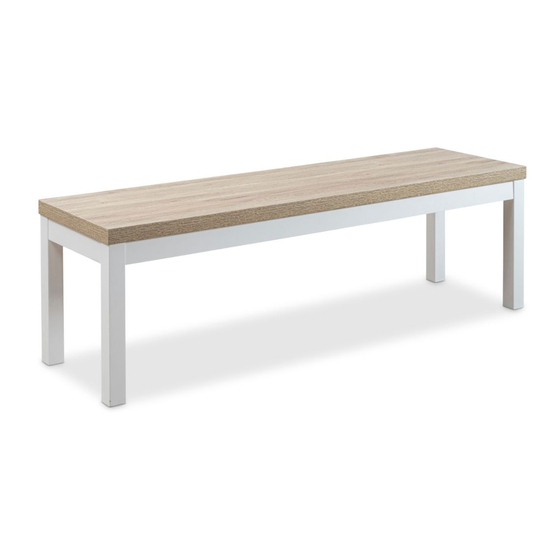

Sadie Bench Seat
Thank you for your purchase.
Please follow the instructions for correct assembly. While we took great
effort to ensure these assembly instructions were correct at the time of
printing, sometimes updates are required post production. For the most
up to date versions please refer to the product page on our website.
mocka.com.au/mocka.co.nz
A
B
dowel
screw
x16
x14
E
F
bolt
washer
x8
x8

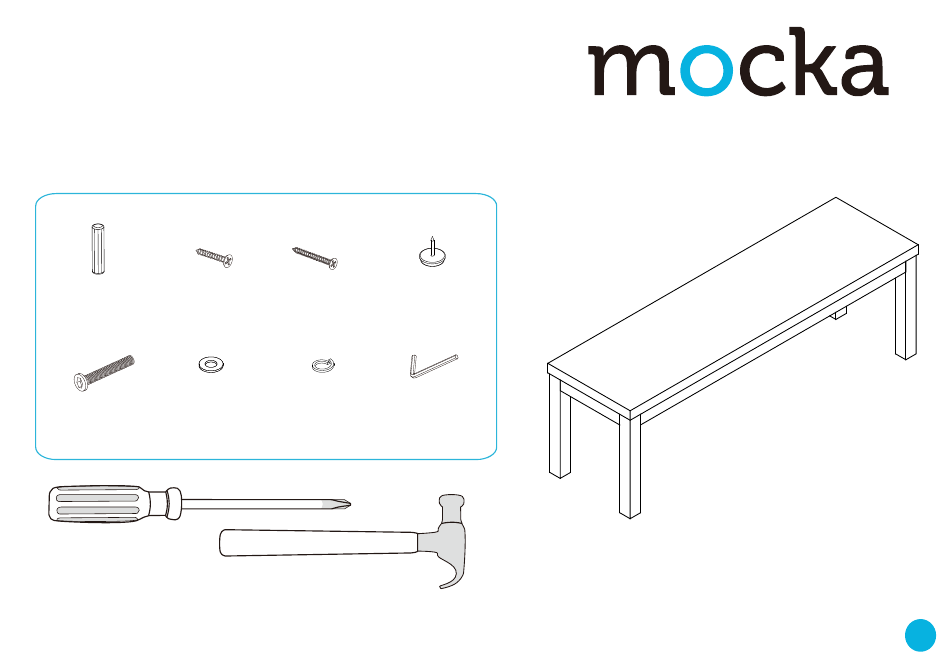

Hardware Supplied
Phillips screwdrivers and hammer required
For quicker assembly, we recommend the
use of a power drill on a low-speed setting.
mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558
C
D
plastic
screw
glide x4
x12
G
H
spring
Allen Key
washer
x1
x8
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Mocka Sadie Bench Seat
Summary of Contents for Mocka Sadie Bench Seat
- Page 1 Allen Key washer washer Hardware Supplied Phillips screwdrivers and hammer required For quicker assembly, we recommend the use of a power drill on a low-speed setting. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 2 Attach legs [5] to panel [4] and secure with 8x bolt (E), 8x washer (F), 8x Attach panels [4] to panels [2] and [3] with 16x screws (B). Tighten with a screwdriver. spring washer (G). Tighten with an Allen key (H). mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
- Page 3 Once assembled lift furniture into place,do not drag,You’re done, enjoy! secure with 12x screws (C). Tighten with a screwdriver. Attach 4x plastic glides (D) to legs [5] using a hammer as shown. mocka.co.nz | mocka.com.au | PO BOX 6171, Maroochydore, QLD, 4558...
