Vivo STAND-V001T Instruction Manual

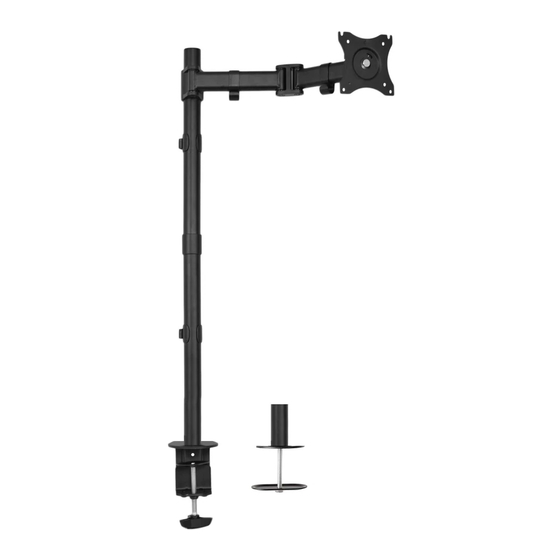

Single monitor extra tall desk mount
Hide thumbs
Also See for STAND-V001T:
- Instruction manual (8 pages) ,
- Instruction manual (9 pages) ,
- Assembly manual (12 pages)
Advertisement
Quick Links
Single Monitor Extra Tall
Desk Mount
Instruction Manual
Model: STAND V001T
Email: help@vivo-us.com
Live chat: www.vivo-us.com
Call: 1-800-371-5654
-
Scan the QR code with your mobile device or follow the link
to helpful videos and specifications related to this product.
https://vivo us.com/products/stand v001t
-
Tools Required:
phillips screwdriver
Package Contents
A (x1)
D (x1)
E (x1)
G (x2)
H (x1)
K (x1)
L (x1)
M A (x4)
-
M B (x4)
M4x12
M5x12
-
B (x1)
C (x1)
F (x1)
J (x1)
I (x5)
M (x1)
M C (x4)
-
-
D5
1
Advertisement
Related Manuals for Vivo STAND-V001T
Summary of Contents for Vivo STAND-V001T
- Page 1 Scan the QR code with your mobile device or follow the link to helpful videos and specifications related to this product. https://vivo us.com/products/stand v001t Tools Required: phillips screwdriver Single Monitor Extra Tall Package Contents Desk Mount Instruction Manual A (x1)
- Page 2 Step 1: Option B (Continued) Assembly Steps Step 1: Option A Slide the cable management clip (G) and base cover (H) on to the bottom pole (B). Thread the bottom pole (B) onto the grommet base (E). Tighten the grub screws in the bottom of the grommet base (E), using the 3mm allen key (K).
- Page 3 Step 3 Step 4 Attach two bolts (M-A or M-B) and washers (M-C) to the top mounting holes of your monitor, making sure to leave 3mm of threads exposed. Slide the arm (A) over the top of pole. Align the bolts (M-A, M-B) in the VESA plate. Secure using two more bolts (M-A or M-B) and washers (M-C) in the bottom two holes.
- Page 4 Call: 1-800-371-5654 If any parts are received damaged or defective, please contact us. We are happy to replace parts to ensure you have a fully functional product. For more VIVO products, check out our website at www.vivo-us.com. Last updated: 4/30/2018...
