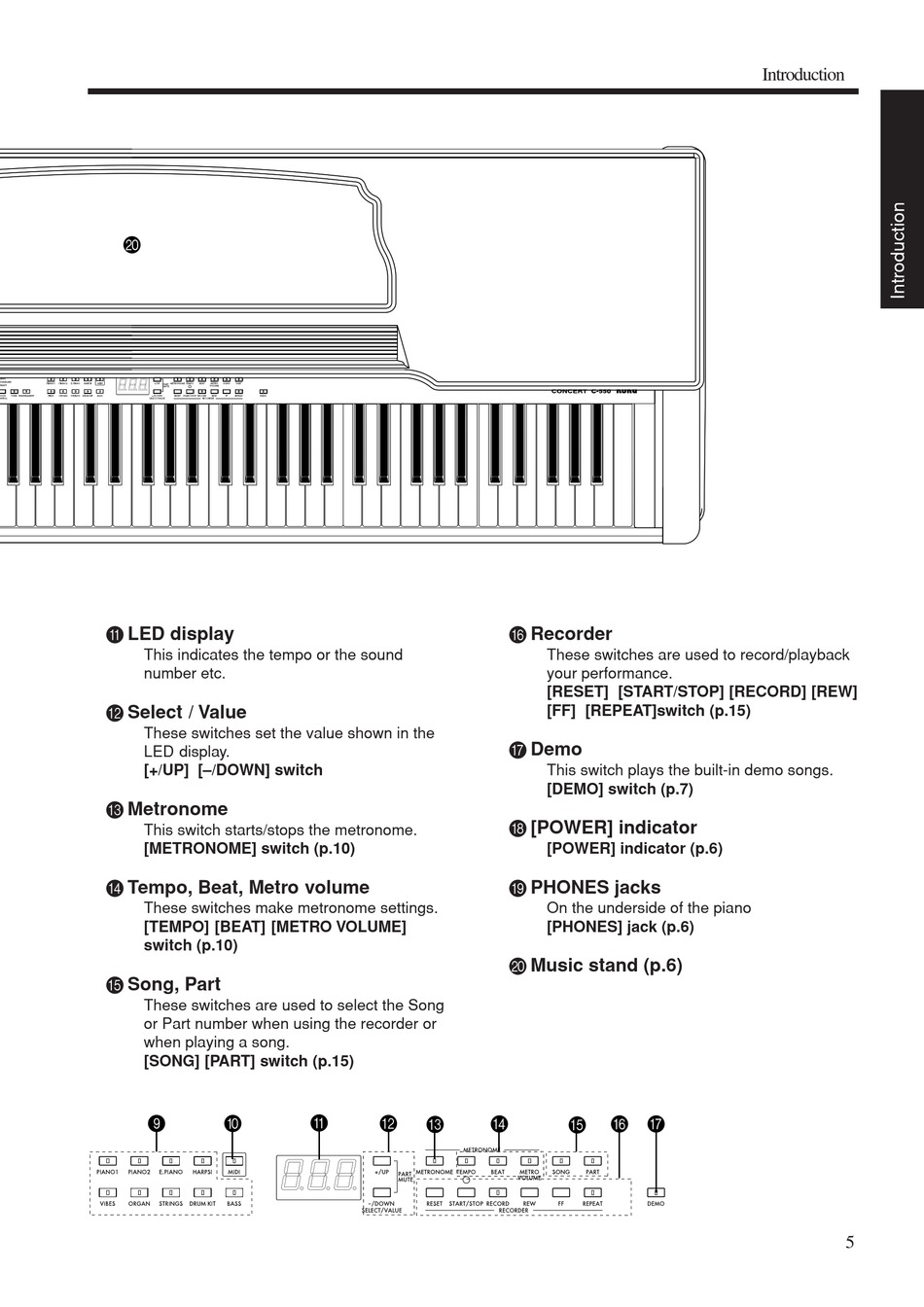

Korg CONCERT C-550 Owner's Manual page 5

J
A LED display
This indicates the tempo or the sound
number etc.
B Select / Value
These switches set the value shown in the
LED display.
[+/UP] [–/DOWN] switch
C Metronome
This switch starts/stops the metronome.
[METRONOME] switch (p.10)
D Tempo, Beat, Metro volume
These switches make metronome settings.
[TEMPO] [BEAT] [METRO VOLUME]
switch (p.10)
E Song, Part
These switches are used to select the Song
or Part number when using the recorder or
when playing a song.
[SONG] [PART] switch (p.15)
9 0
A
B
C
F Recorder
These switches are used to record/playback
your performance.
[RESET] [START/STOP] [RECORD] [REW]
[FF] [REPEAT]switch (p.15)
G Demo
This switch plays the built-in demo songs.
[DEMO] switch (p.7)
H [POWER] indicator
[POWER] indicator (p.6)
I PHONES jacks
On the underside of the piano
[PHONES] jack (p.6)
J Music stand (p.6)
D F G
E
Introduction
5
