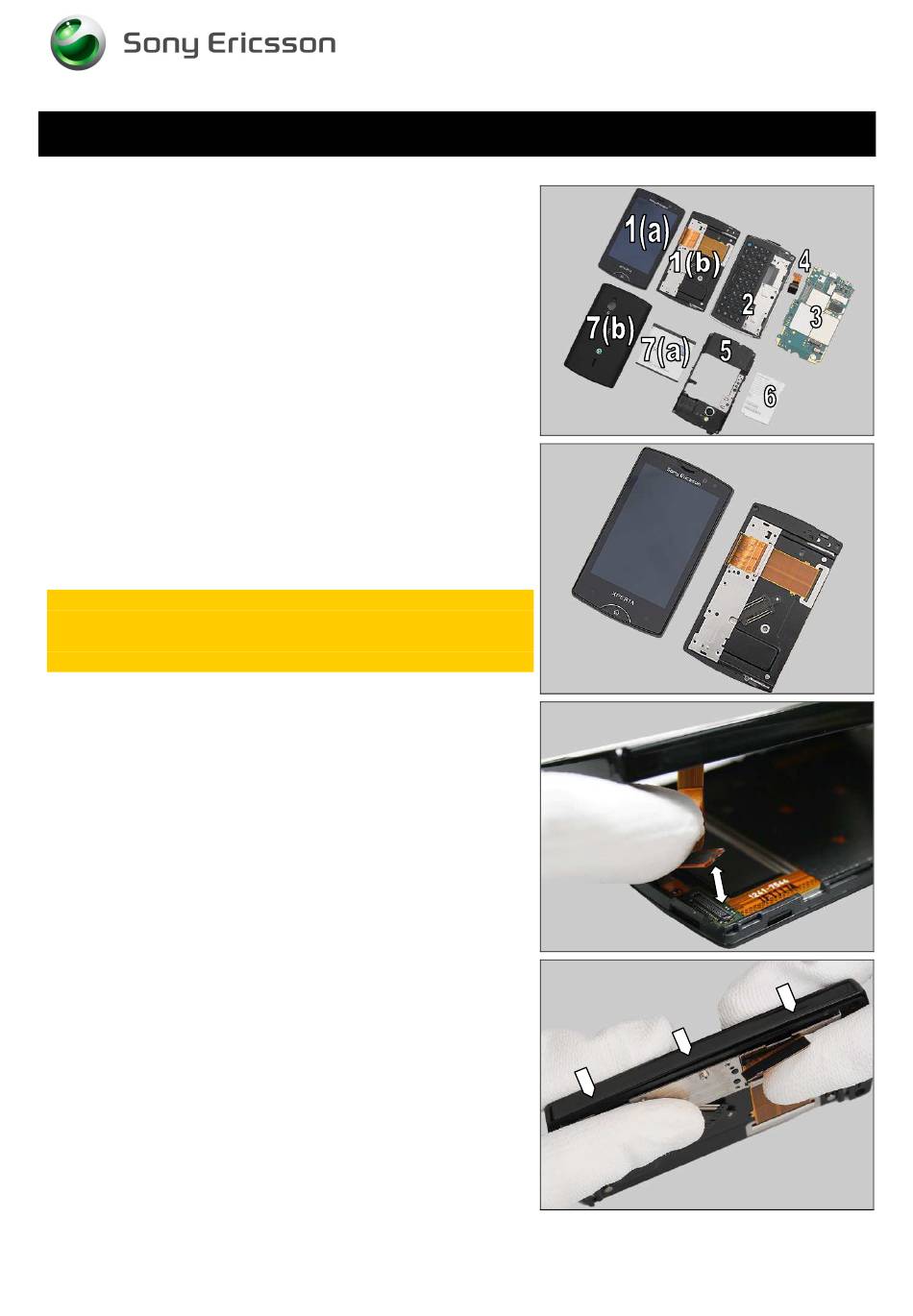

Reassembly

The reassembly is done in the following order:
1. Touch/Display Front Cover Assy (a) and Hinge Assy (b)
2. Lower Front Cover Assy
3. Main PBA
4. Main Camera
5. Lower Rear Cover Assy
6. Core Unit Label
7. Battery (a) & Battery Cover (b)
5.1 Touch/Display Front
Cover Assy & Hinge Assy
Prepare the Touch/Display Front Cover Assy and the Hinge
Assy.
Follow the 4.17 Removal&Installation instructions to
change the new Conductive Cushion on the
Touch/Display Front Cover Assy in case of the cushion
missing or damaged.
Align and snap the BtB connector using fingers.
Press this side to snap the three hooks as shown.
