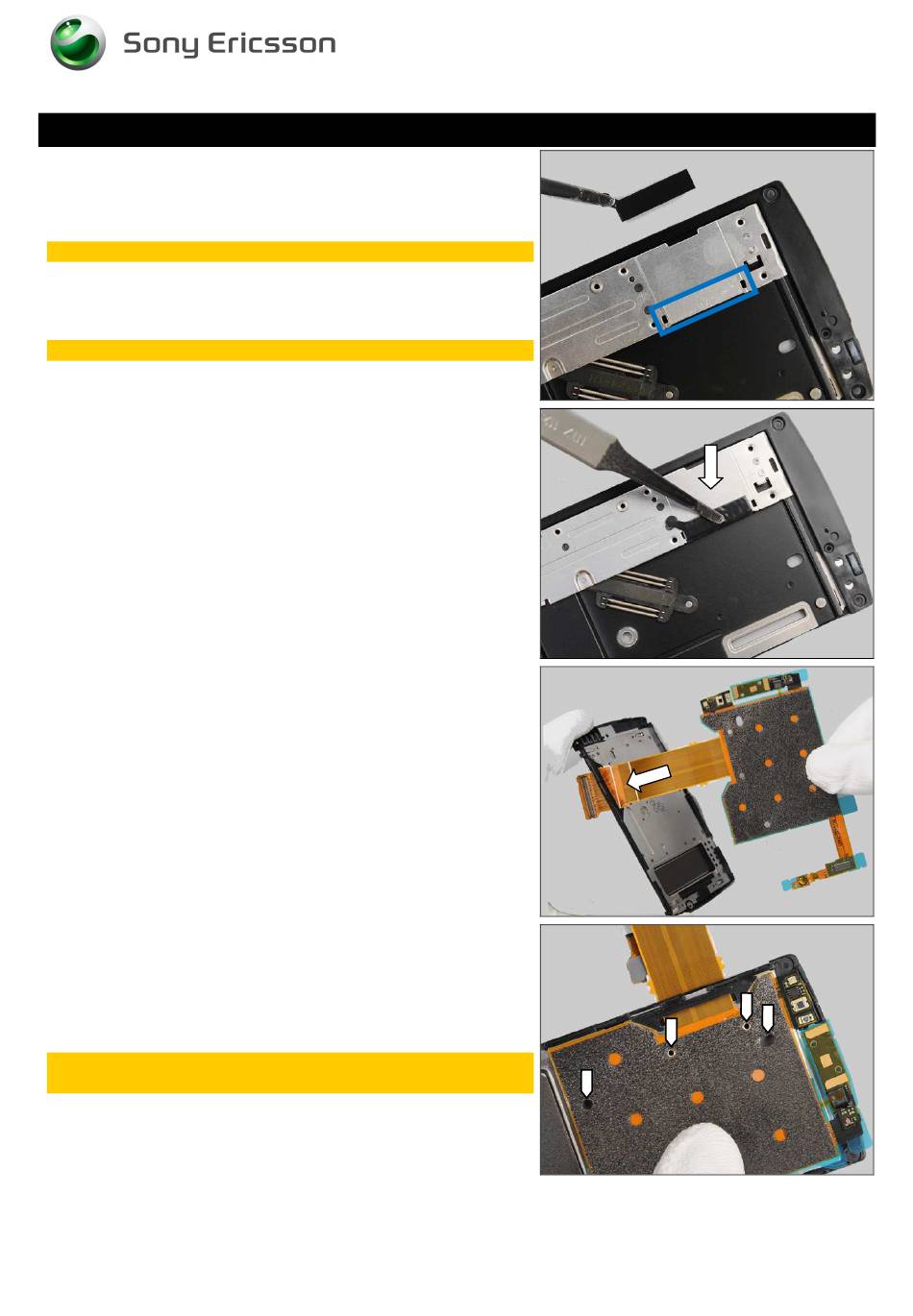

Replacement: Hinge FPC & Hinge Assy Adhesive Foil
INSTALLATION
Clean all the residues of the adhesive before mounting!
Attach a new Hinge Assy Adhesive Foil between the two
holes along the metal edge.
Do not attach the adhesive foil over the metal edge!
Press back and forth to secure its attachment.
Mount a new Hinge FPC through the hole as shown.
Peel off half of the protective film and attach the Hinge FPC
in its proper place as shown.
The four guiding holes must be aligned accurately
between the Hinge FPC and Hinge Assy!
