KR PORTABLE SYSTEM

9. TOUCH SCREEN FUNCTIONS

9.1 TOUCH SCREEN FUNCTIONS: KMT12 I, KMT18 I, KMT21 I, KMT218

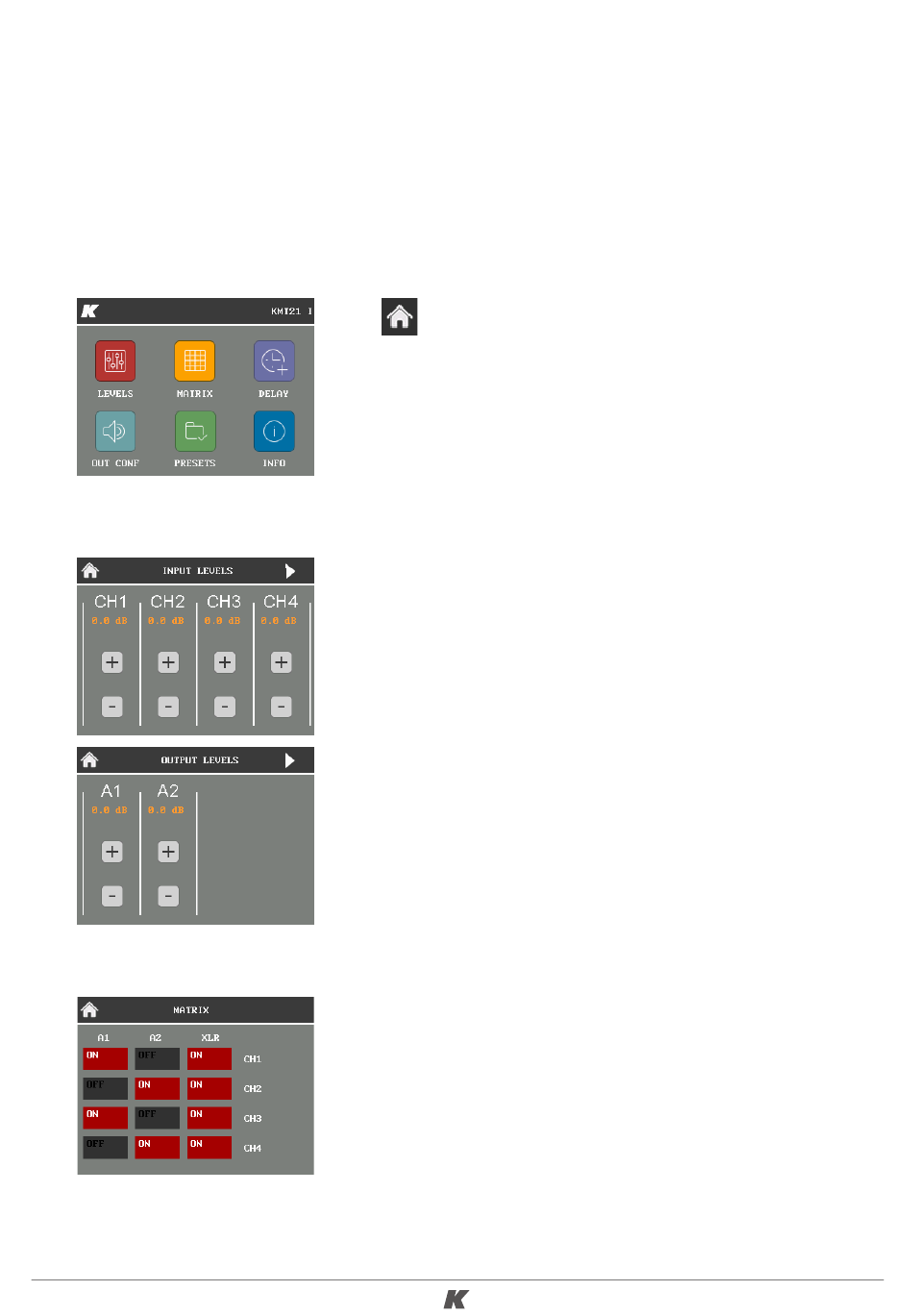

The main functions of the onboard DSP can be managed with the integrated touch screen. Functions
are grouped into six pages, shown as icons on the Home page.
HOME PAGE
LEVELS
MATRIX
To reach the Home Page from any other page,
touch the Home button.
The Levels page allows users to independently manage
the amplitude of the four input channels and the two
output channels of the amplifier.
CH1 and CH2 are the two analog inputs, while CH3 and
CH4 are the two AES/EBU digital input channels. A1
controls the output level sent to the subwoofer and A2
controls the output level sent to the speakers connected
to the Speaker Out.
Click the arrow button on the top right corner to switch
between the Input Levels Page and the Output Levels
Page.
The Matrix Page allows users to manage the routing of
the four input channels to the subwoofer, to the speaker
connected to the Speaker Out and to the XLR DSP Out.
In the example shown here, the analog signal on the input
Channel 1 and the digital signal on the input Channel 3 are
sent to the subwoofer while the analog signal on the input
Channel 2 and the digital signal on the input Channel 4
are sent to the speakers connected to the Speaker Out.
All inputs channels are also summed and sent to the XLR
DSP Out.
