8.7 RS485 NETWORK

The RS485 Link Input and the RS485 Link Output on the rear panel allow the creation a network of
K-array devices that users can manage with a PC running the K-Framework software. All devices can be
linked with standard XLR cable.

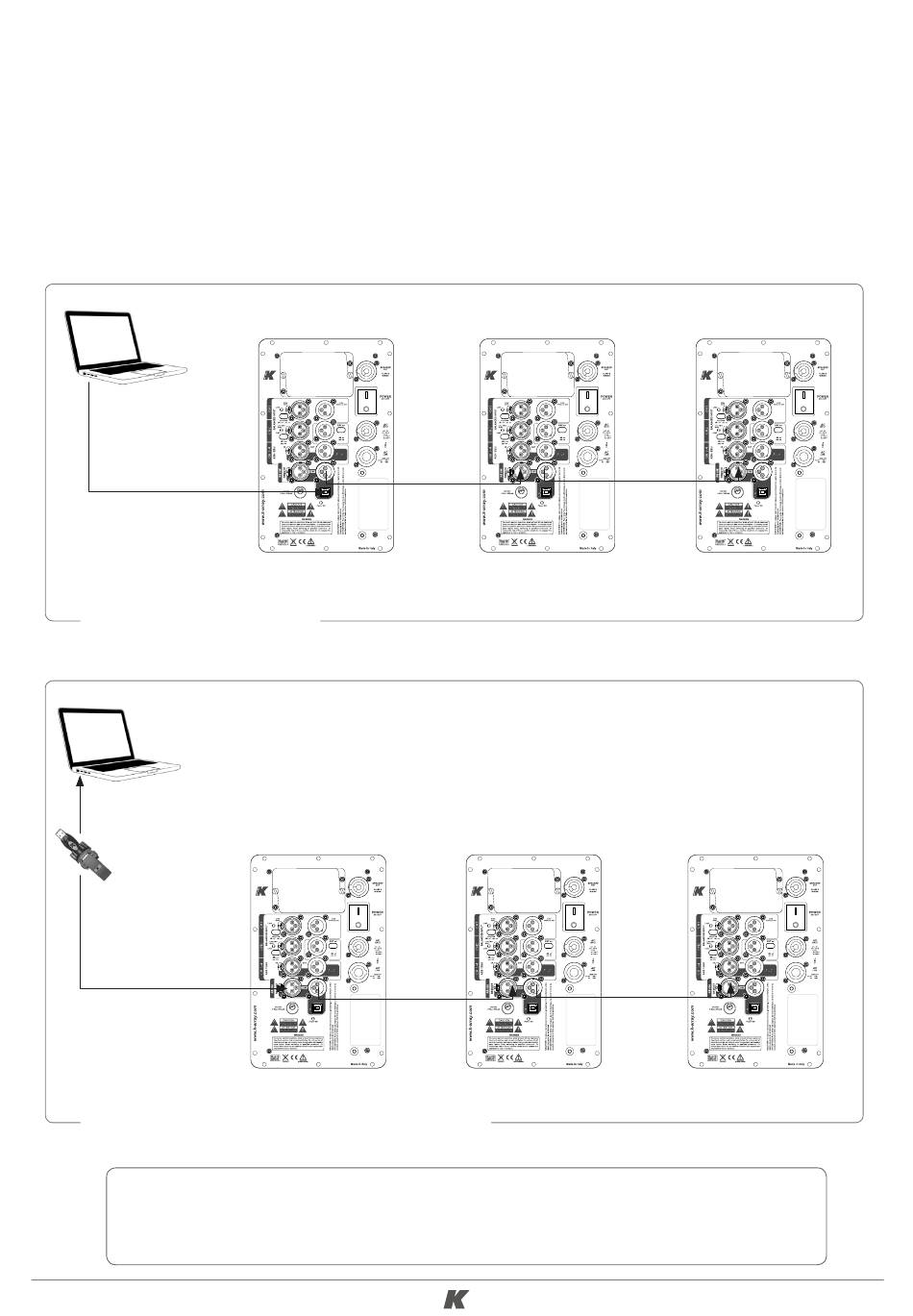

The PC can be connected to the network either with USB cable or XLR cable (requires K-USB USB-to-
RS485 adapter accessory) as shown in the diagrams below.
USB cable
PC connected via USB cable
K-USB
XLR cable
PC connected via XLR cable + K-USB accessory
Attention: Make sure that you have set a different ID number on each device
before connecting them to a PC running the K-framework. See the INFO section in
Chapter 9 for details.
