8. KM312 TOUCH SCREEN FUNCTIONS

The main functions of the onboard DSP can be managed with the integrated touch screen. Functions
are grouped into five sections, shown as icons on the Home page.

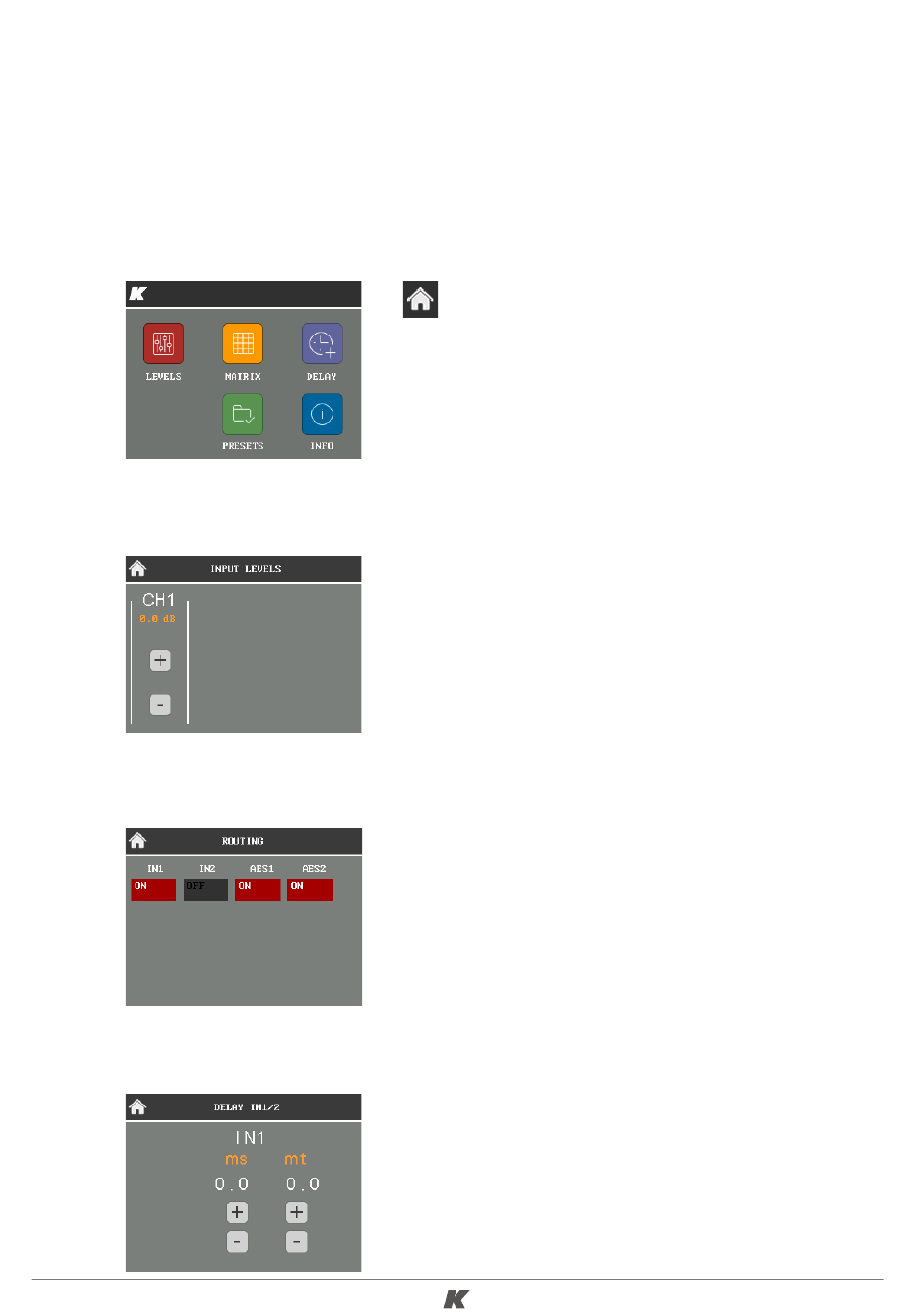

HOME PAGE
LEVELS
MATRIX
DELAY
To reach the Home page from any of the pages,
touch the Home button.
The Levels page allows users to manage the amplitude of
the input signal (whether analog or digital).
The Matrix page allows users to switch on/off the four
inputs channels independently. IN1 and IN2 are the two
analog inputs, AES1 and AES2 are the two channels of the
AES/EBU digital input.
The Delay page allows users to delay the audio signal sent
to the unit. Users can set the delay in milliseconds (ms) or
meters (mt).
