7.5 TOUCH SCREEN FUNCTIONS

14
HOME PAGE
INPUT PAGE
OUTPUT PAGE
ROUTING PAGES
PRESET PAGES
INFO PAGE
DELAY PAGE

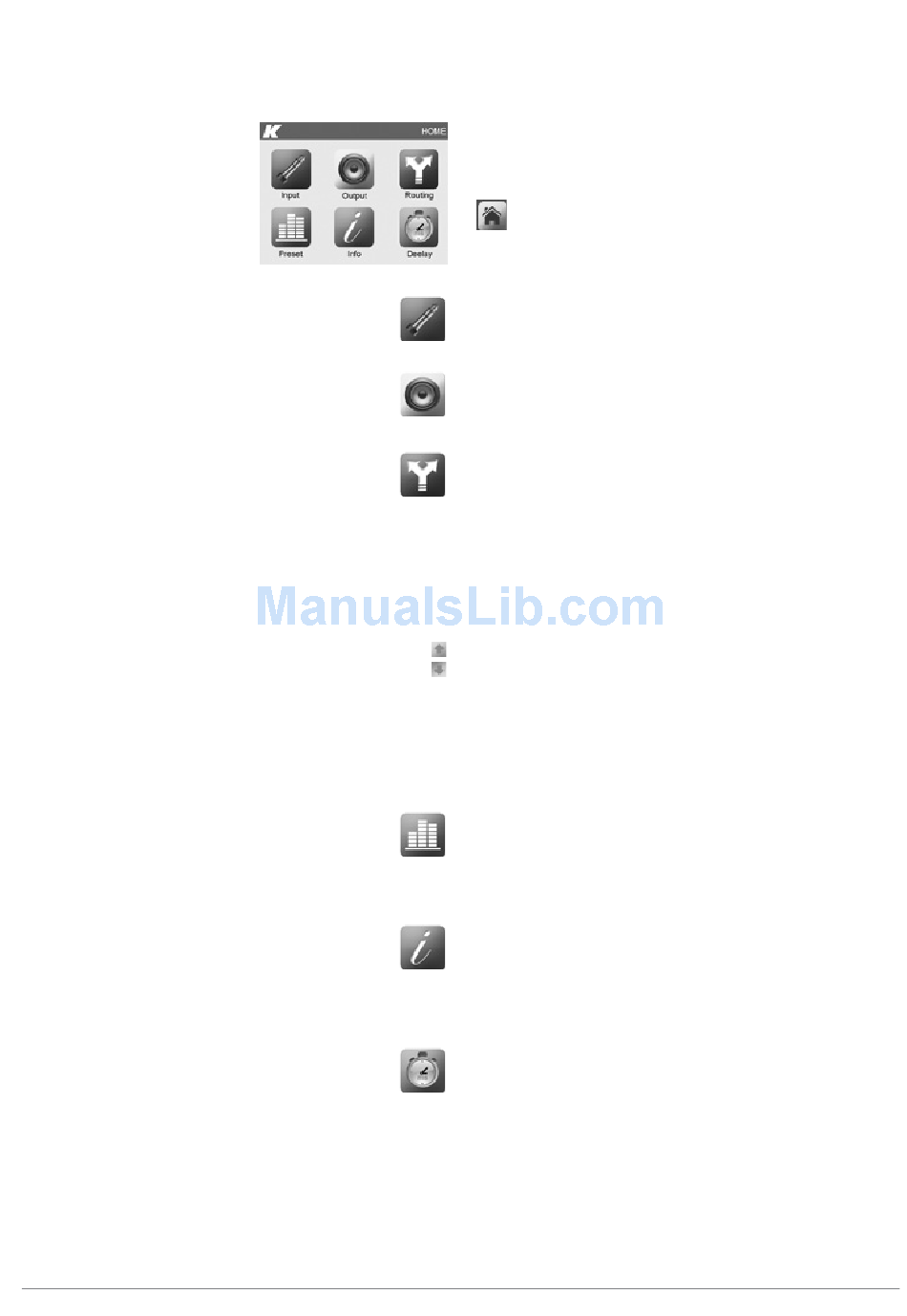

The main functions of the onboard DSP can be managed with the
integrated touch screen. Functions are grouped into six pages,
shown as icons on the Home page.
To reach the Home page from any other page, touch the
Home button.
The Input page allows users to independently manage the
amplitude of all the four input channels.
The Output page allows users to independently control the
amplitude of the signal routed to the Subwoofer, the Speaker
Output and the XLR DSP Output.
Three Routing pages allow users to manage the routing of the four
input channels to the three outputs (Subwoofer, Speaker Out and
XLR DSP Out) as well independently set output volume and delay
for each output.
The delay values set in the Routing pages are summed to the
global delay assigned on the Delay page.
The arrow buttons on the top right corner of the screen provide
access to individual Routing pages for the Subwoofer, Speaker Out
and XLR DSP Out.
Notes: The XLR DSP page does not provide control over delay for
this output.
Two Preset pages allow users to load presets stored on-board. The
arrow buttons on the top right corner of the screen provide access
to the Factory and User preset pages. The arrows are also used to
scroll through, select and load one of the available presets.
The Info page contains information about the current software and
firmware, and the Logical ID of the KMT module. The Logical ID
is automatically assigned to the KMT unit when connected to a
K-Framework network.
The Delay page allows users to independently set the delays for
the speaker system (Subwoofer and Speaker Out). This delay is
summed with the delays from the Routing pages of Subwoofer and
Speaker Out. The COARSE and FINE controls allow users to change
the delay in larger and smaller steps.
Notes: The delay control does not affect the XLR DSP out. Delay
for this output line can only be managed through the K-Framework
dedicated controls.
