Smappee EV Wall Lite Quick Install Manual

Smappee
EV Wall Lite
Quick install guide

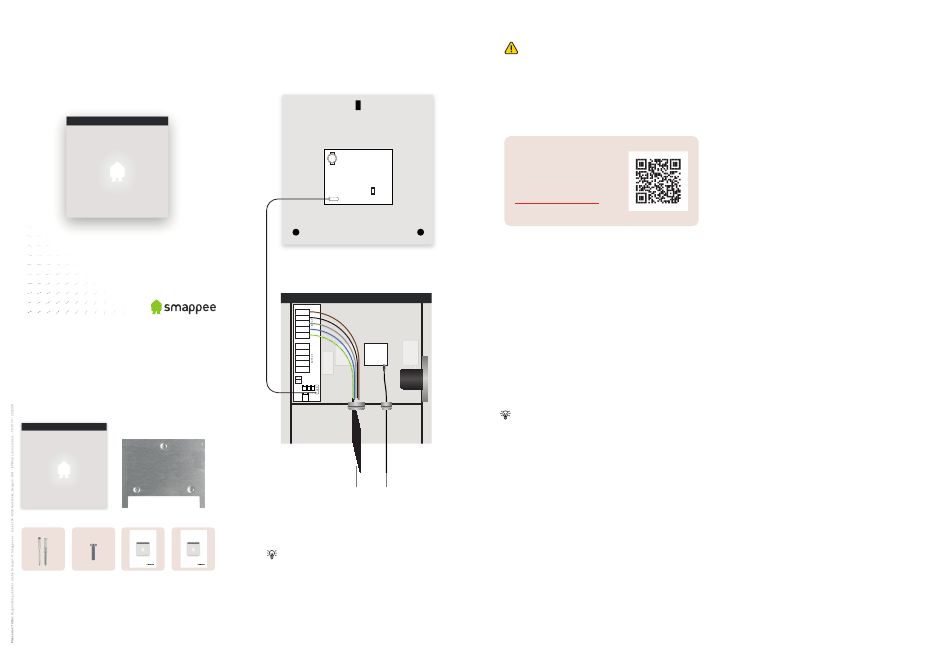

What's in the box?
EV Wall EV Wall mounting plate
3x 3x
Smappee Smappee
EV Wall Business EV Wall Business
Quick install guide Quick starter guide
Screw & plug Small screw Quick Install Quick Starter
Guide Guide
Smappee
EV Wall Lite
LED Board
Front panel
L1
L2
L3
N
PE
L1
Power
L2 Lock
Connect
Box
L3
Solid-
Core
N
CT
PE
CP
PP
A B B
A+B
Power Network
supply cable
cable
In case of 3-phase delta (3 x 230 V),
consult the full manual at
smappee.com/smappee-manuals
EN
Safety warning
Carrying out electrical work within the home or
workplace can be dangerous and must be conducted
according to the appropriate national safety
standards and executed by a certified electrician.
For safety purposes, it is also necessary to power off
the installation before proceeding with the physical
installation.
Read the installation manual
carefully before proceeding
as it contains all the safety
and installation instructions.
This manual is available at
smappee.com/downloads
or via the QR code.
Prepare the installation
When positioning the EV Wall, take into account that the
power supply cable and network cable are entering the
housing at the bottom through cable glands. The central
M32 cable gland is for the power supply, the M20 cable
gland for the network cable.
Installation and configuration
1. Fix the mounting plate to the wall with the provided
plugs and screws.
2. Attach the EV Wall housing to the EV Wall mounting
plate with the provided small screws.
3. Connect the power supply cable and network cable to
the EV Wall Lite. Connect the cable to the LED board on
the front panel, but do not close it yet.
See diagrams overleaf. In case of 3-phase delta
(3 x 230 V), please consult the full manual online.
4. Switch on the power using the circuit breaker.
5. Download the Smappee App and follow the instructions
to configure your Smappee charging station.
6. Close the EV Wall by attaching the front panel and
tightening the M4 nuts.
7. Use the Smappee app to send an invite to your
customer's email address to share the newly created
location with them. This user account will be used for
the Smappee App and dashboard. Lastly, hand over the
Quick Starter Guide.
