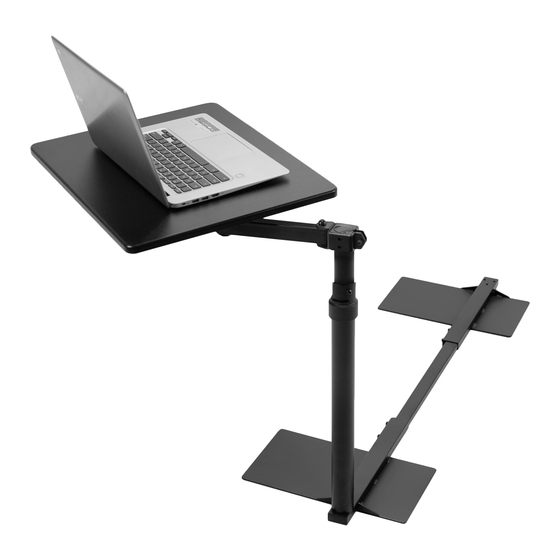

Black 20" x 15" Swivel Couch Desk
Instruction Manual
SKU: DESK-ST01C
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-st01c
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-ST01C
Summary of Contents for Vivo DESK-ST01C
- Page 1 Black 20” x 15” Swivel Couch Desk Instruction Manual SKU: DESK-ST01C Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-st01c GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual.
- Page 3 ASSEMBLY STEPS STEP 1 Slide Footing Set (E) onto Crossbar (D). Position Footing Set (E) the same distance apart as your furni- ture leg spacing and secure using M6x12mm Screws (S-A) using 4mm Allen Wrench (T-A).
- Page 4 STEP 2 Footing Set (E) can be installed on the inside or outside of the furniture legs as shown. Assemble Pole (B) to match the desired final setup. Make sure in the final setup the furniture legs are resting on the larger side of Footing Set (E).
- Page 5 STEP 3 Attach Arm (C) to Tray (A) using M5x12mm Screws (S-C) and 4mm Allen Wrench (T-A). NOTE: Tighten the tilt joint on Arm (C) using 5mm Allen Wrench (T-B) before use. Loosen or remove the screw using 4mm Allen wrench (T-A) to allow full rotation...
- Page 6 STEP 4 Adjust Pole (B) height by removing the M6x45mm Bolt (B1) and M6 Nut (B2) using 4mm Allen Wrench (T-A). Adjust Pole (B) to desired height using the 4 height settings. Reinsert M6x45mm Bolt (B1) and M6 Nut (B2). Retighten using 4mm Allen Wrench (T-A).
- Page 7 STEP 9 Slide Arm (C) onto Pole (B). Loosen the level on the Stop Collar by turning counterclockwise. Adjust to desired height and tighten by turning the lever clockwise. Secure Arm (C) to Pole (B) using the 5mm Allen Wrench (T-B). Adjust the tilt using 5mm Allen Wrench (T-B).
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
