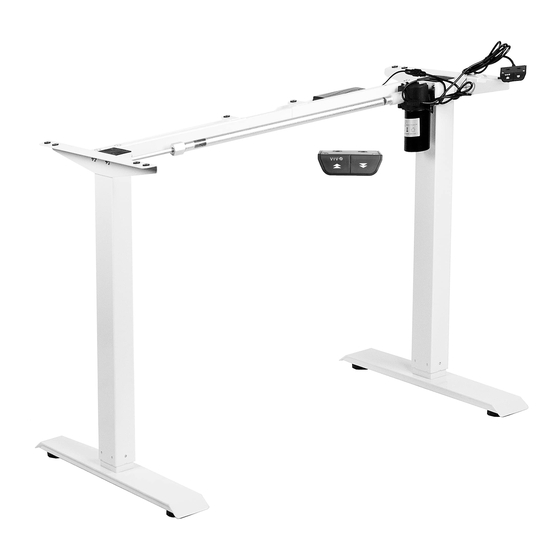

Black Electric Single Motor Desk Frame
SKU: DESK-V100EW
Instruction Manual
ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/desk-v100eb
help@vivo-us.com
www.vivo-us.com
309-278-5303
Advertisement
Table of Contents
Related Manuals for Vivo DESK-V100EW
Summary of Contents for Vivo DESK-V100EW
- Page 1 Black Electric Single Motor Desk Frame SKU: DESK-V100EW Instruction Manual ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/desk-v100eb www.vivo-us.com help@vivo-us.com 309-278-5303...
- Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...
-
Page 3: Electrical Warning
Returns | Product Didn’t Work Out? We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. -
Page 4: Package Contents
TOOLS NEEDED: DIFFICULTY LEVEL Phillips Screwdriver Drill PACKAGE CONTENTS Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us. A (x1) B (x1) C (x1) D (x2) Crossbar Motorized... -
Page 5: Assembly Steps
ASSEMBLY STEPS STEP 1: Mount Crossbar Loosen screws on Crossbar (A) using 5mm Allen Wrench (T-A), extend, and then re-tighten screws. Mount Crossbar (A) to Leg (B) and Motorized Leg (C) using M8x50 Screws (S-A) and 5mm Allen Wrench (T-A). A (x1) B (x1) C (x1) - Page 6 STEP 3: Install Side Brackets Assemble Side Brackets (E) to Leg (B) and Motorized Leg (C) using M8x12 Screws (S-B) and 5mm Allen Wrench (T-A). E (x2) S-B (x4) Side Bracket M8x12 STEP 4: Fit Desktop Place frame assembly upside down on the desktop. Slide Tray (F) under Crossbar (A).
- Page 7 STEP 5: Attach Frame to Desktop Secure frame assembly to the desktop with ST4.2x16 Screws (S-D) and a Phillips screwdriver. S-D (x12) ST4.2x16 Screw STEP 6: Install Sync Rod Loosen the knobs on Sync Rod (G). Insert the hex shaft into Leg (B) until it reaches the notch. While holding the hex shaft, extend Sync Rod (G) onto the hex shaft of Motorized Leg (C) until it reaches the retainer.
- Page 8 STEP 7: Install Monitors Mount Controller (H) to the desktop using ST4.2x16 Screws (S-D) and a Phillips screwdriver. Connect cables from Motorized Leg (C) and AC Adapter (I) to Controller (H). Connect Power Cable (J) to AC Adapter (I). H (x1) I (x1) J(x4) Controller...
- Page 9 STEP 8: Adjust Height Manage cables using Cable Management Clips (S-E). Insert Hooks (K) into Side Brackets (E). S-E (x5) J(x4) Cable Clip Power Cable STEP 9: Controller Plug Power Cable (J) into an AC outlet. Follow the reset process to initialize the desk (pg 10). The desk is now ready for use.
-
Page 10: Troubleshooting
Continue to hold the down arrow until the desk stops moving and the red light turns off. CHECK OUT OTHER GREAT PRODUCTS FROM EXPLORE MORE AT VIVO-US.COM We offer a wide array of home & office products to fit your needs. From height adjustable desks to... -
Page 11: Need Assistance
WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve you, our customer, to the best of our abilitiy. - Page 12 LOVE YOUR NEW VIVO SETUP? Ready to share that new amazing setup? Want to brag about that amazing new ergonomic solution? Tag us in your photo! VIVO-us @vivo_us FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM LAST UPDATED: 06/14/2022 REV1.1LF...
