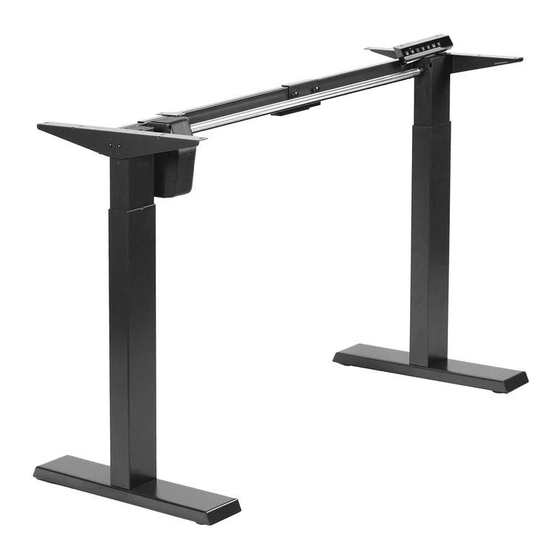

Black Compact Electric Single Motor Desk Frame
Instruction Manual
SKU: DESK-E151EB
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-e151eb
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vivo DESK-E151EB
Summary of Contents for Vivo DESK-E151EB
- Page 1 Black Compact Electric Single Motor Desk Frame Instruction Manual SKU: DESK-E151EB Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-e151eb GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
- Page 2 WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
- Page 3 ASSEMBLY STEPS STEP 1 Assemble Right Crossbar (D) to Motorized Leg (A), and Left Crossbar (C) to Leg (B), using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B). STEP 2 Attach one Side Bracket (G) to Leg (B) and Right Crossbar (D) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B), using the center and left screw holes of Side Bracket.
- Page 4 STEP 3 Place Feet (F) on leg assemblies and secure using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B). Connect leg assemblies by sliding Inner Crossbar (E) into Left and Right Crossbars (C, D). Secure Inner Crossbar (E) to Left and Right Crossbars (C, D) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B).
- Page 5 STEP 4 Flip assembly over. Loosen the knob on the Sync Rod (H) and extend the hex shaft. Insert hex shaft into Leg (B), making sure the metal retaining ring makes contact with the Leg (B). While holding the hex shaft with one hand, extend Sync Rod (H) onto the spline shaft of Motorized Leg (A).
- Page 6 STEP 5 Place the frame assembly upside down on the desktop in the desired location. Use a 3/32” (3mm) drill bit and drill holes to a depth of 3/8” (10mm), if needed. Secure the frame and Control Panel (I) to the desktop using M5x16mm Screws (S-B) and a Phillips screwdriver.
- Page 7 STEP 6 Connect cable from Motorized Leg (A) and Power Cable (J) to Control Panel (I). Install Cable Clips (L) to the underside of the desktop for cable management. CAUTION! Do not exceed desk Keep area of vertical Keep weight on desk Leave enough slack in weight limit.
- Page 8 AVG. RESPONSE TIME (within office hrs) - 23% within < 15m - 38% within < 30m - 61% within < 1hr - 83% within < 2hr - 92% within < 3hr FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
