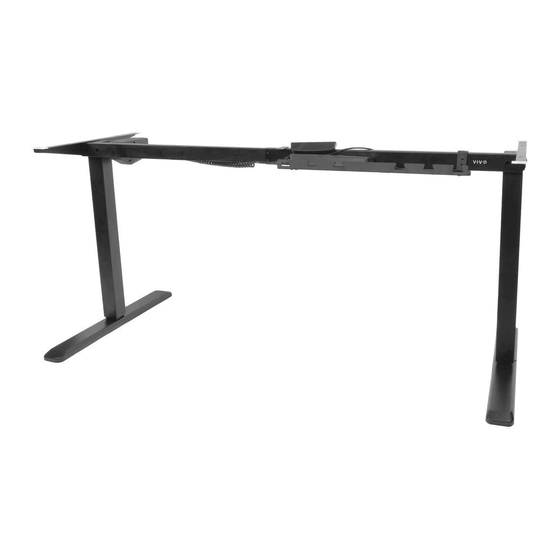

Black Electric Single Motor Desk Frame
SKU: DESK-V102E
Instruction Manual
ASSEMBLY VIDEO AVAILABLE:
Follow along step-by-step with our video walk through by scanning
the QR code with your mobile device or by following the product
link: vivo-us.com/products/desk-v102e
help@vivo-us.com
www.vivo-us.com
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V102E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vivo DESK-V102E

Summary of Contents for Vivo DESK-V102E

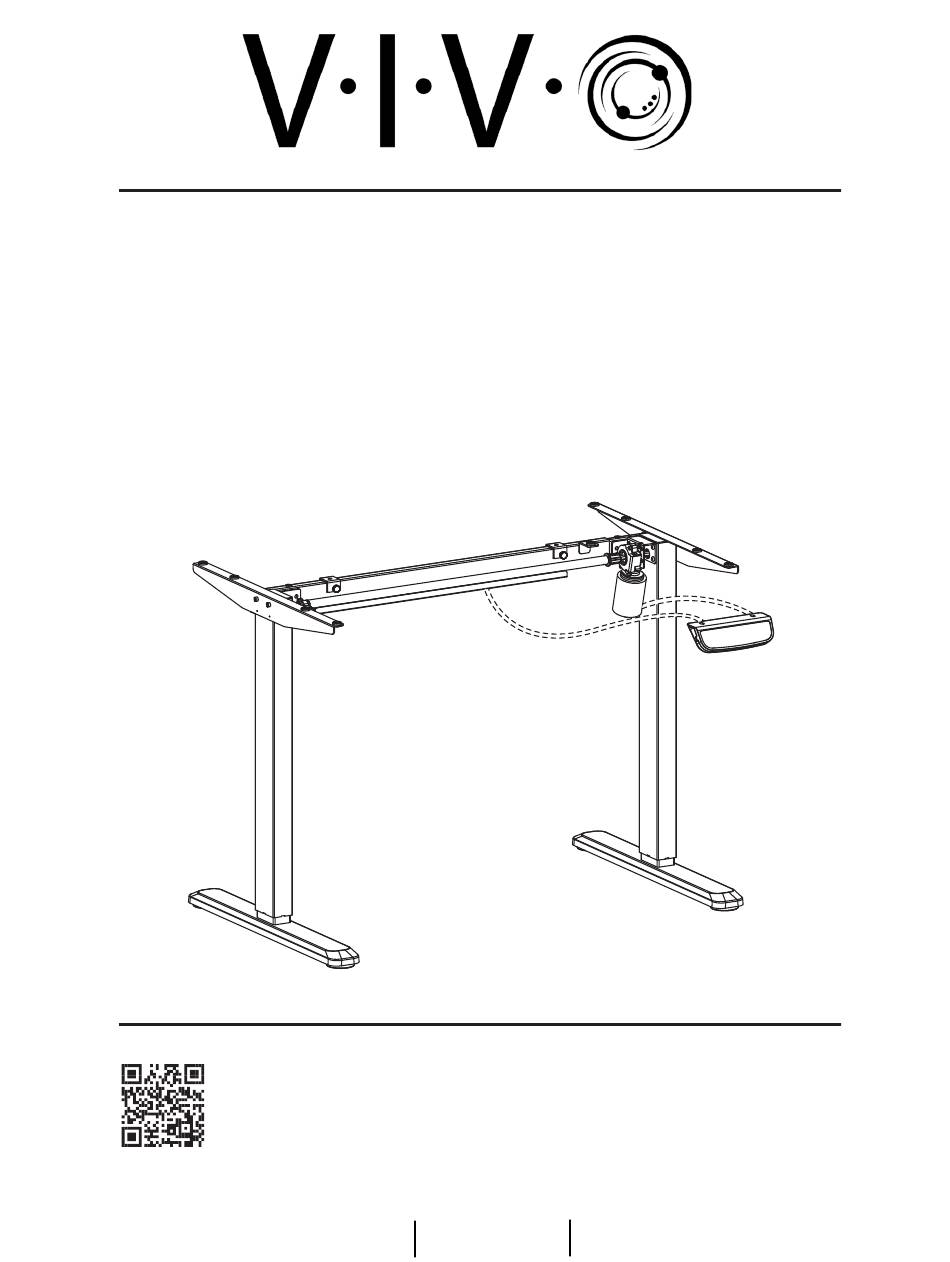

  • Page 1 Black Electric Single Motor Desk Frame SKU: DESK-V102E Instruction Manual ASSEMBLY VIDEO AVAILABLE: Follow along step-by-step with our video walk through by scanning the QR code with your mobile device or by following the product link: vivo-us.com/products/desk-v102e www.vivo-us.com help@vivo-us.com 309-278-5303...
  • Page 2 7AM - 7PM Monday-Friday Give us a Call: Chat Us: Email Us: 309-278-5303 www.vivo-us.com help@vivo-us.com We’re Here for You! Our customer-minded support team is here for YOU, Monday-Friday 7am-7pm CST. We offer immediate assistance with rapid response times from customer service agents and product techncians to...

  • Page 3: Weight Capacity

    Returns | Product Didn’t Work Out? We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense.

  • Page 4: Difficulty Level

    TOOLS NEEDED: DIFFICULTY LEVEL Level Drill Phillips Screwdriver PACKAGE CONTENTS Please consult the parts list below and ensure you have everything you need to assemble your product. If parts are missing or damaged, please contact us. A (x1) B (x1) C (x1) D (x2) E (x1)

  • Page 5: Assembly Steps

    Loosen set screw on Crossbar (A) to adjust length and re-tighten. Attach Crossbar (A) to Motorized Leg (B) with M6x50mm Screws (S-E) and M6x25mm Screws (S-C), as shown below. Crossbar Motorized Leg M6x50mmScrew M6x25mm Screw 4mm Allen Wrench Have a question? Give us a quick call / chat! 309-278-5303 or vivo-us.com...
  • Page 6 STEP 2: Attaching Side Brackets (S-B) Attach Side Brackets to Motorized Leg and Leg using M5x14mm Screws using 4mm Allen (T-A). Wrench M5x14mm Screw 4mm Allen Wrench Side Bracket STEP 3: Apply Anti-Vibration Pads (S-H) Apply Anti-Vibration Pads to top of Side Brackets , as shown below.
  • Page 7 Place intended desktop (not provided) upside down onto of a soft surface and then place desk frame assembly upside down on desktop. Adjust frame width to size of desktop, ensuring the that frace is centered on the desktop. Have a question? Give us a quick call / chat! 309-278-5303 or vivo-us.com...

  • Page 8: Step 7: Installing The Ac Adapter

    STEP 6: Installing the Sync Rod Loosen the knobs on the Sync Rod (E) and extend the hex shaft. Insert hex shaft into the Leg (C), making sure the metal retaining ring makes contact with the Leg. While holding the hex shaft with one hand, extend sync rod onto the spline shaft of Motorized Leg .
  • Page 9 STEP 8: Connect Frame to Desktop (S-G) Use ST4.2x16 Screw to secure desk frame to desktop with a drill. ST4.2x16Screw Have a question? Give us a quick call / chat! 309-278-5303 or vivo-us.com...

  • Page 10: Step 9: Connecting The Controller

    STEP 9: Connecting the Controller Connect cords from Controller (H) to cord from Motorized Leg and Power Adapter . Connect (G). Power Cable to Power Adapter H (x1) K (x1) Controller Power Cable...

  • Page 11: Step 10: Attaching The Controller

    STEP 10: Attaching the Controller Connect Controller (H) (S-F) to desktop using ST3.5x13 Screws and a drill. Add Cable Clips (S-F) desktop and secure with ST3.5x13 Screws and a drill. Cable Clip ST 3.5x13 Screw STEP 11: Level Desk Turn desk frame over and adjust using the leveling knobs under the desk feet, if needed. Perform Reset Process outlined on page 13 before using desk for first time.
  • Page 12 CONTROLLER OPERATING INSTRUCTIONS: When the system is powered on, you will hear a beep and the existing desktop height will be displayed on the control panel. Sleep Mode After resting for 1 minute, the screen will turn off to prevent accidental operation. Touch the screen to exit sleep mode and operate the desk.
  • Page 13 Collision Detection Mode To set the Collision Detection sensors, press and hold the “M” and “T” buttons for 5 seconds until you hear two beeps. This indicates you are in Collection Detection Settings Mode. The screen will display the current sensivitivy level (Level 3 by default). Press the “up” or “down” arrows to adjust to desired level.
  • Page 14 WHO WE ARE VIVO is more than a brand of ergonomic office furniture. We are a team of creative and innovative indivuduals working together to offer high quality, affordable ergonomic solutions. We think and work outside of the box to serve...

  • Page 15: Need Assistance

    Call Us: 309-278-5303 Average Resolution Time: 5m 4s Chat Us: www.vivo-us.com Average Resolution Time: < 15m Email Us: help@vivo-us.com Average Resolution Time: 1HR 8M 23% within < 15m 38% within <...
  • Page 16 LOVE YOUR NEW VIVO SETUP? Ready to share that new amazing setup? Want to brag about that amazing new ergonomic solution? Tag us in your photo! VIVO-us @vivo_us FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM LAST UPDATED: 07/16/2022 REV7.5LF...
