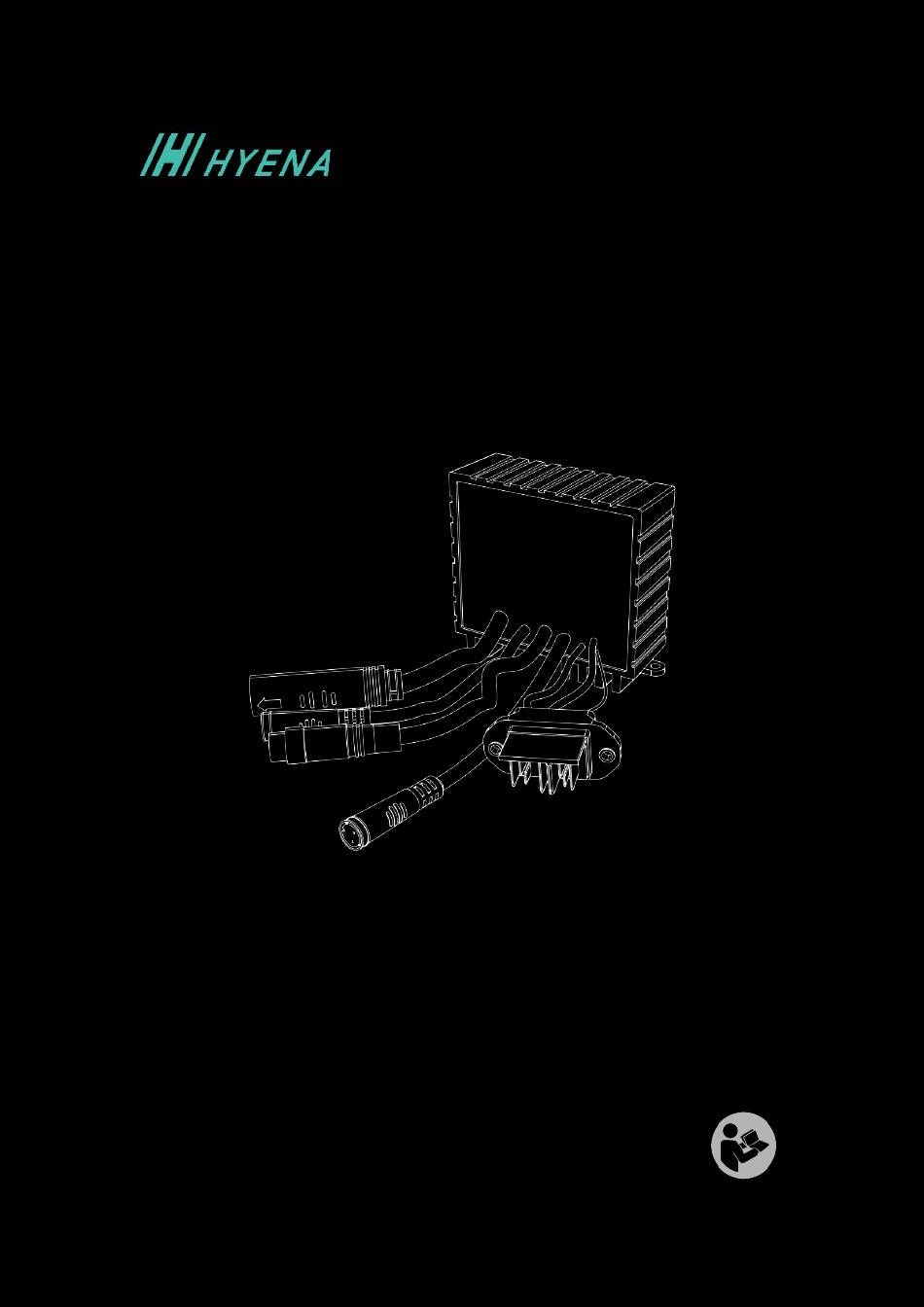

- Page 1 Product Manual DC-A250+ Original Instruction Version 221018 Copyright © 2022 HYENA INC. All Right Reserved.
-
Page 2: Table Of Contents
Table of Contents Introduction Product Features Product Description .................. 1 Parts Description ..................1 Product Dimension ................... 2 Pin Definition ..................... 3 Technical Data Characteristic .................... 6 Certification ....................6 Protection....................6 Software Standard Function ..............7 Mounting Tool List ....................8 Accessory List ................... -
Page 3: Introduction
Introduction This manual is intended primarily for the trained technician to install, disassemble, or maintain the Hyena e-bike system only. Please read all the safety warnings and instructions carefully. Failure to follow the warnings and instructions may result in death or severe injuries. Save this manual for future reference. -
Page 4: Product Dimension
Length: 190±20 mm Length: 640±10 mm C. Motor Connector D. HMI Connector Cable OD: Ø 6.3 mm Cable OD: Ø 5 mm Outer Diameter: Ø 14 mm Outer Diameter: Ø 10.5 mm Length: 220±10 mm Length: 135±10 mm HYENA E-BIKE SYSTEMS... -
Page 5: Pin Definition
Front Light- Output 6.8V headlight ground Input 12V HMI/Display ground CANL Bidirectional CAN Low VCC+ Output 12V HMI/Display power CANH Bidirectional CAN High Front Light+ Output 6.8V headlight power, also supply power to horn. Throttle Input Throttle signal HYENA E-BIKE SYSTEMS... - Page 6 Hall signal of phase U Hall V Input Hall signal of phase V Sensor Name Direction Description Remark Torque Input Torque signal. Analog signal. Output 5V sensor ground Output 5V sensor power Cadence Cnk1 Input Cadence signal Null Reserved Null Reserved HYENA E-BIKE SYSTEMS...
- Page 7 Rear Light Name Direction Description Remark Output Rear light power Bidirectional Rear light ground HYENA E-BIKE SYSTEMS...
-
Page 8: Technical Data Characteristic
Short circuit of tail light in introduces no Tail light short circuit protection Optional permanent damage. Controller stops assist when voltage < Under voltage protection 28.0V for 10 seconds Controller stops assist when voltage > Over voltage protection 45.0V for 10 seconds HYENA E-BIKE SYSTEMS... -
Page 9: Software Standard Function
Motor phase Battery protocol Hyena proprietary protocol Parameter table Parameter 2.0 Error code table Hyena proprietary error code table Walk assistance Up to 4 km/hr Support level Standard 3 modes, Maximum 4 modes Level 1: 10±1 A Level 2: 12±1 A Current limit Level 3: 15±1 A... -
Page 10: Mounting Tool List
• Use the proper bicycle tools during the installation or removal process. • Carefully install this product is necessary, do not strike it with any tool such as a hammer or wrenches. Exploded View of Assembly HYENA E-BIKE SYSTEMS... -
Page 11: Safety Instructions
Maintenance • All the component leads shall use original Hyena • Do NOT clean the product or any e-system component components. with detergent or organic solvent. Only clean the product •... - Page 12 Hyena Inc. Tel: +886 4 23598810 Fax: +886 4 23598610 www.hyena-ebike.com Address: No.25, Jingke N. Rd., Nantun Dist., Taichung City 408, Taiwan (R.O.C.) HYENA E-BIKE SYSTEMS...
