QUICK START GUIDE
FEATURES:
• 1/3" 4.0 Megapixel CMOS Image Sensor
• NDAA Compliant
• Up to 30fps live view @ 4 MegaPixel (2592x1520)
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 165' IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Gen. IV Advanced Analytics: Regional Entrance / Exit Detection, Line
Crossing, Target Counting [All by Human / Motor Vehicle Classification]
Face Detection, Object Abandoned / Missing, Heat Map, Video Blur, Video
Color Cast Detection, Abnormal Video
• H.265+/H.265/H.264+/H.264/MJPEG
• 1 Ch. Audio In*
• Remote Viewing via CMS, Internet Explorer, iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (256GB)
• IP67 Weather Resistance
• Wall Mount Included & Junction Boxes (VT-TJB08) Available
(see pg. 9 for additional mounting options)
• 12VDC & PoE (Power over Ethernet) Operation
*Please research local, state and federal laws regarding the implementation of audio surveillance.

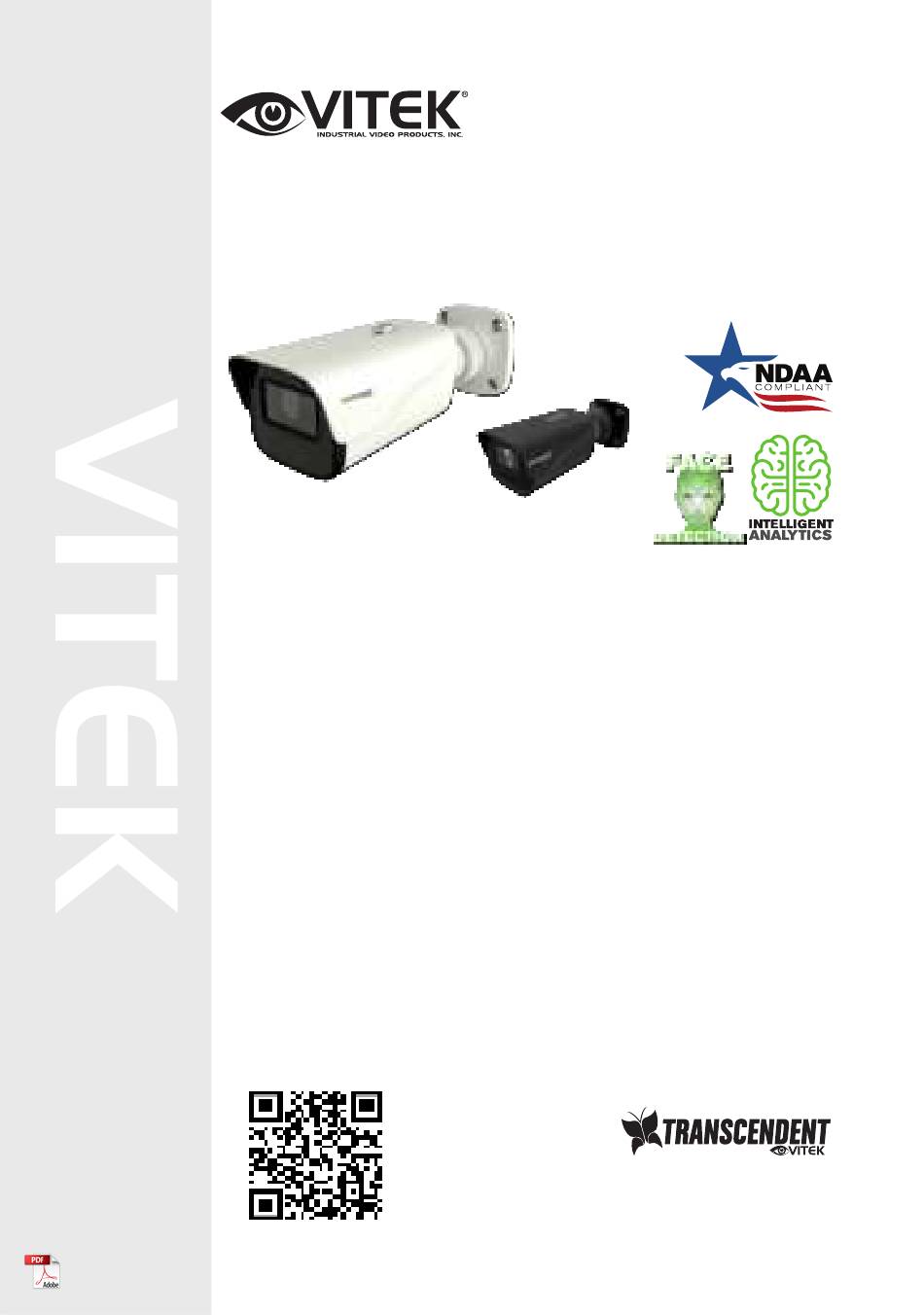

VTC-TNB4RMA4
Transcendent Series 4 MegaPixel
Motorized IP Bullet Camera
Also Available in Charcoal,
VTC-TNB4RMA4B
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Gen. IV Advanced A.I.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTC-TNB4RMA4B
Summary of Contents for Vitek VTC-TNB4RMA4B
- Page 1 Transcendent Series 4 MegaPixel Gen. IV Advanced A.I. Motorized IP Bullet Camera QUICK START GUIDE Also Available in Charcoal, VTC-TNB4RMA4B FEATURES: • 1/3” 4.0 Megapixel CMOS Image Sensor • NDAA Compliant • Up to 30fps live view @ 4 MegaPixel (2592x1520) •...
-
Page 2: Components And Accessories
Components and Accessories Camera Quick start guide 4 tapping screws PA 4×2 Rubber plug × 4 Plastic plug Allen Key Drill template Overview Fixed Ring Power connector* Mounting Base Micro SD card slot Network connector* Reset Audio Input Sunshield Connect the Weather Resistant Cap to an Ethernet patch cable. Connect the cameras ethernet adaptor. -
Page 3: Installation
Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera. - Page 4 1. Attach the drill template to the place where you want to install the camera, then drill 3 screw holes and 1 cable hole (if routing the cables through the mounting base) according to the drill template 2. Route the cables and connect the power & video cables, use the rubber plug to fill the gap of the mounting base, then secure the mounting base to the ceiling or wall with screws.
-
Page 5: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 8 VTC-TNB4RMA4 Detailed Specifications Image Sensor 1/3” 4.0 Megapixel CMOS Image Sensor Image Size 4 MegaPixel (2592 × 1520) Resolution 4 MP(2592 × 1520) / 3 MP(2304 × 1296) / 1080P(1920 × 1080) / 720P(1280 × 720) / D1 / CIF(480 × 240) Min.
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNB4RMA4 VT-TJB08 Optional Junction Box VT-TPLMT VT-TCNMT Transcendent Universal Transcendent Universal Corner Mount (reqs. VT-TJB08) Pole Mount (reqs. VT-TJB08) 6.43” 8.47”...
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS UPDATED UPDATED NEWLY NEWLY NVRs Transcendent A Standalone Solution with Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression •...
- Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
