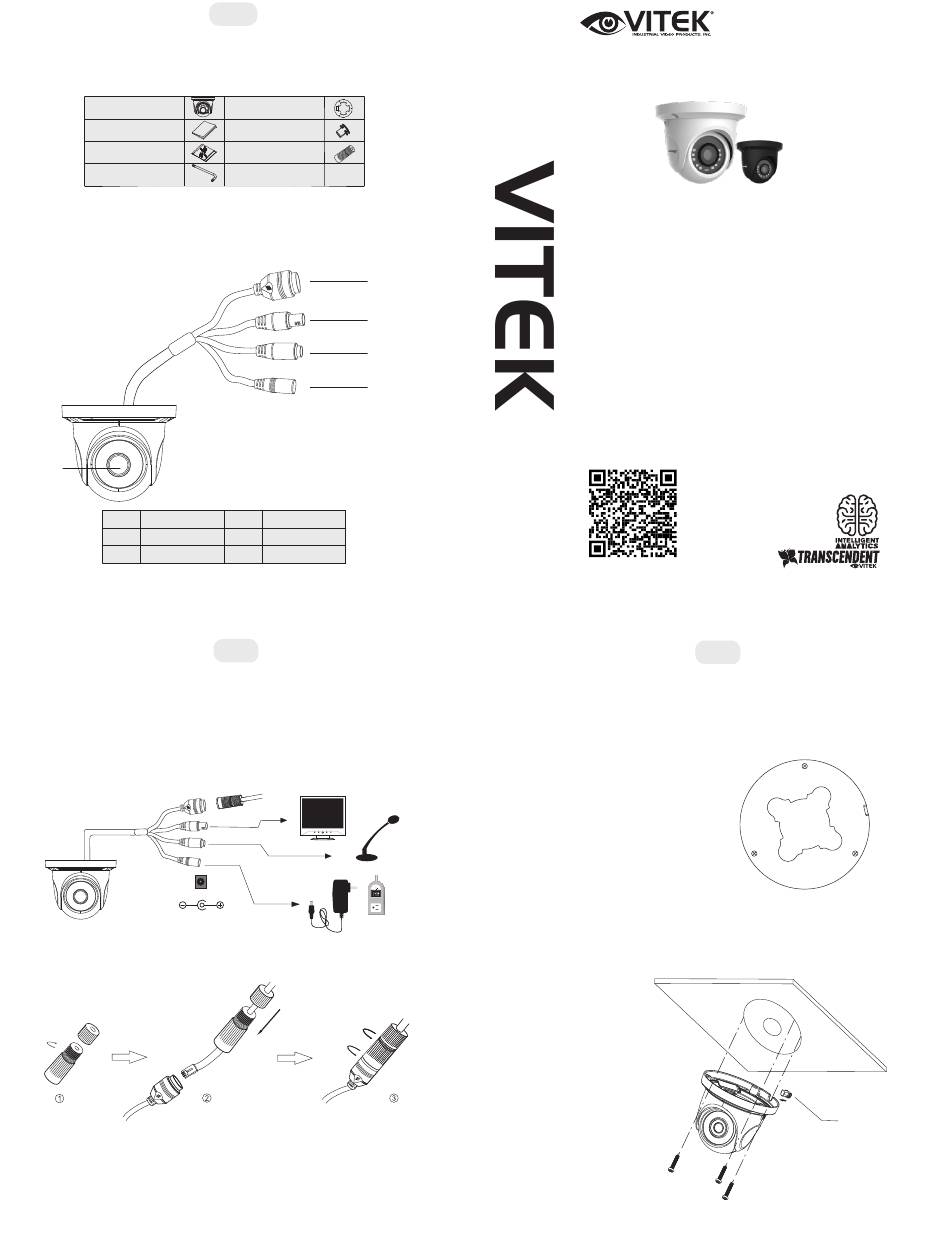

Vitek VTC-TNT5RFS Quick Start Manual

Components and Accessories
Camera
Quick Guide
Screws
Hex Wrench
Overview
1
1 Lens
2 RJ-45 Ethernet
3 CVBS Output
Network Cable & Power Connections
First connect the Waterproof Cap to an Ethernet patch cable, then
connect the cameras ethernet adaptor. If not powering the camera with
PoE, also connect the power Cable to an approved 12VDC Power
Supply.
Network Cable
12VDC
Optional 12VDC
Power Connection.
Not needed with PoE
Weather Resistant Network Coupler
1. Loosen the nut from the Weather Resistant Network Coupler,
2. Run ethernet cable through coupler, then attach a RJ-45 connector.
3. Tighten the nut and coupler for a weather resistant seal.
1
Drill Template
Rubber Plug
Waterproof Cap
2
3
4
5
4 Audio Input
5 Power Input
2
Outdoor WDR IP Turret Camera with
10 HP IR LED (3.6mm), 14 HP IP LED (2.8mm)
QUICK START GUIDE
FEATURES
• 1/2.5" 5.0 Megapixel Progressive Scan CMOS image sensor
• Up to 30fps live view @ 5 MegaPixel (2592×1944)
• 3.6mm or 2.8mm Fixed Iris Lens
• 10 IR LEDs (3.6mm), 14 LEDs (2.8mm), with a 65' IR Range
• 120dB Super Wide Dynamic Range (WDR)
• True Mechanical Day/Night function by ICR
• XD-DNR (2D-DNR & 3D-DNR) Noise Reduction
• Fully Programmable Intelligent Analytics including Face Detection,
Object Removal/Museum Search, Exception, Line Crossing, Area
Intrusion, People Counting, People Intrusion, Crowd Density Monitoring
• H.265/H.264/MJPEG Triple Streaming
• Secondary Video Output (CVBS)
• Remote Viewing via CMS, Internet Explorer, and iOS & Android Apps
• ONVIF Compliant
• IP66 Weather Resistance
• Optional Junction Box Mount Available (VT-TJB01/B)
and Wall Mount (VT-TWMT3/B)
• 12VDC & PoE (Power over Ethernet) Operation
• Optional Charcoal Finish, use # VTC-TNT5RFSB or TNT5RFSB-2
FOR FULL PRODUCT MANUAL
SCAN THE QR CODE BELOW
3
Installation
Before beginning installation, make sure that the wall or ceiling is
strong enough to withstand 3 times the weight of the camera. The
mounting steps are as follows:
1. Attach the drill template to
the place where you want to
install the camera, then drill
3 screw holes and 1 cable
hole (if you want to route the
cables through the mounting
base) according to the drill
template
2. Route the cables and connect the power & video cables, use the
rubber plug to fill the gap of the mounting base. then secure the
mounting base to the ceiling or wall with screws.
3. Loosen the lock screws,
then adjust the camera
to obtain the optimium
viewing angle. Confirm
the correct viewing
angle with a monitor.
(See next page for
location of lock screw)
VTC-TNT5RFS/-2
Transcendent Series
5 Megapixel H.265 Indoor/
Rubber Plug
