IP65 Stainless Resistive
15"/ 17"/ 19"/ 21.5" Panel PC
5th Gen. Intel® Core™ i5-7200U Kaby Lake 2.5 GHz (turbo to 3.1 GHz)
Quick Start Guide
Version 1.1
Document Part No.91521110100R
Please read this instructions before operating the device and retain them for future reference.
Model No.R15IK3S-65C3
R17IK3S-65A1
R19IK3S-65M1
W22IK3S-65A3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Winmate R15IK3S-65C3
Summary of Contents for Winmate R15IK3S-65C3
- Page 1 IP65 Stainless Resistive 15”/ 17”/ 19”/ 21.5” Panel PC 5th Gen. Intel® Core™ i5-7200U Kaby Lake 2.5 GHz (turbo to 3.1 GHz) Model No.R15IK3S-65C3 R17IK3S-65A1 R19IK3S-65M1 W22IK3S-65A3 Quick Start Guide Version 1.1 Document Part No.91521110100R Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
2.3 Mounting 2.3.1 VESA Mount 2.3.2 Yoke Mount Chapter 3: Getting Started 3.1 Turning On and Off Your Device 3.2 How to Enable Watchdog Appendix Appendix A: Hardware Specifications Appendix B: Winmate Software Development Kit Appendix C: Cleaning the Monitor... - Page 3 Chapter 1: Introduction FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class "B"...
- Page 4 Warranty Winmate Inc. warranty guarantees that each of its products will be free from material and workmanship defects for a period of one year from the invoice date. If the customer discovers a defect, we will, at his/her option, repair or replace the defective product at no charge to the customer, provide it is returned during the warranty period of one year, with transportation charges prepaid.
- Page 5 Chapter 1: Introduction Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. The following is an example of each type of advisory. Note: A note is used to emphasize helpful information Important:...
-
Page 6: Chapter 1: Introduction

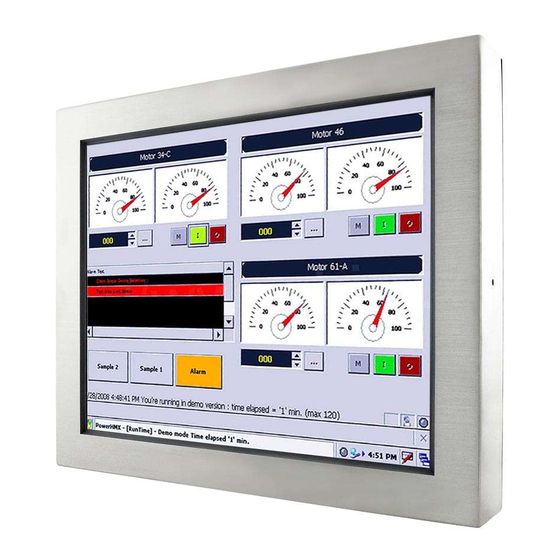

Chapter 1: Introduction Congratulations on purchasing Winmate® IP65 Stainless Resistive Panel PC. Winmate flat stainless steel PCAP panel PCs and display are designed for applications with high hygienic requirements. IP65 series is completely waterproof with IP65 level of protection. The IP65 stainless series work well in food, beverage industry, including food processing operations and packaging, chemical manufacturing and other industrial applications. -
Page 7: Package Content
Chapter 1: Introduction 1.2 Package Content Carefully remove the box and unpack your device. Please check if all the items listed below are inside your package. If any of these items are missing or damaged contact us immediately. Standard shipment list: Quick Start Guide Driver CD &... -
Page 8: Product Overview
IP65 Stainless Resistive Panel PC Quick Start Guide 1.3 Product Overview This section contains mechanical drawing of the Panel PC. Notice that this is a simplified drawing and some components are not marked in detail. 1.3.1 Dimensions 15" Unit: mm Dimensions : 384 x 311 x 61 1.3.2 Dimensions 17”... -
Page 9: Dimensions 19
Chapter 1: Introduction 1.3.3 Dimensions 19” Unit: mm Dimensions : 460 x 385 x 63 1.3.4 Dimensions 21.5” Unit: mm Dimensions : 550 x 340x 64.8... -
Page 10: Physical Buttons And Led Indicators
IP65 Stainless Resistive Panel PC Quick Start Guide 1.4 Physical Buttons and LED Indicators Physical buttons and LED indicators located on the rear side of the Panel PC. Physical Buttons Icon Button Description Reset Press to reset the system Power On/ Off Press to power on or power off the device LED Indicators LED Type... -
Page 11: Chapter 2: Hardware Installation
Chapter 2: Hardware Installation Chapter 2: Hardware Installation 2.1 Wiring Requirements The following safety precautions should be observed before installing any electronic device: • Strive to use separate, non-intersecting paths to route power and networking wires. If power wiring and device wiring paths must cross make sure the wires are perpendicular at the intersection point. -
Page 12: Serial Cable
IP65 Stainless Resistive Panel PC Quick Start Guide 2.2.2 Serial Cable The IP65 Stainless Resistive Panel PC has one waterproof serial port connector. Use serial cable to connect serial interfaces. 2.2.3 Ethernet Cable The IP65 Stainless Resistive Panel PC has one waterproof Ethernet connector. Use Ethernet cable to connect the Panel PC to the Internet. -
Page 13: Usb 2.0 Cable
Chapter 2: Hardware Installation 2.2.4 USB 2.0 Cable The IP65 Stainless Resistive Panel PC has one waterproof USB 2.0 connector. Use USB 2.0 cable to connect external devices such as mouse or keyboard to the Panel PC. -
Page 14: Mounting
2.3.1 VESA Mount The Panel PC has VESA mount holes on the rear side. Follow instructions below to mount the unit with VESA Mount bracket (not supplied by Winmate). Size VESA Plate... -
Page 15: Yoke Mount
Chapter 2: Hardware Installation 2.3.2 Yoke Mount Yoke Mount solution allows installing the Panel PC with the bracket (not supplied by Winmate). Mounting instruction: 1. Place the Panel PC on the bracket stand, aiming screw holes for each other. 2. Secure screws to fix the device upon the bracket stand. -
Page 16: Chapter 3: Getting Started
IP65 Stainless Resistive Panel PC Quick Start Guide Chapter 3: Getting Started 3.1 Turning On and Off Your Device To turn on your device: 1. Connect the AC adapter to the DC-in jack connector located on the back side of the Panel PC. -
Page 17: How To Enable Watchdog
3.2 How to Enable Watchdog To enable Watchdog, you need to download Winmate Watchdog utility. Find more information on Watchdog in “Watchdog Guide” that you can download from Winmate Download Center or File Share. Refer to the User Manual for more details. -
Page 18: Appendix
IP65 Stainless Resistive Panel PC Quick Start Guide Appendix Appendix A: Hardware Specifications Model Name R15IK3S-65C3 R17IK3S-65A1 R19IK3S-65M1 W22IK3S-65A3 Display Size 15” 17” 19” 21.5” 250 ����/�� 350 ����/�� 250 ����/�� 250 ����/�� Resolution 1024 x 768 1280 x 1024... -
Page 19: Appendix B: Winmate Software Development Kit
Certification CE, FCC, RoHs CE, FCC, RoHs CE, FCC, RoHs CE, FCC, RoHs Appendix B: Winmate Software Development Kit Winmate provides the following SDK and Utilities for the IP65 Stainless Resistive Panel PC. Item File Type Description Watchdog SDK Utility... - Page 20 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
