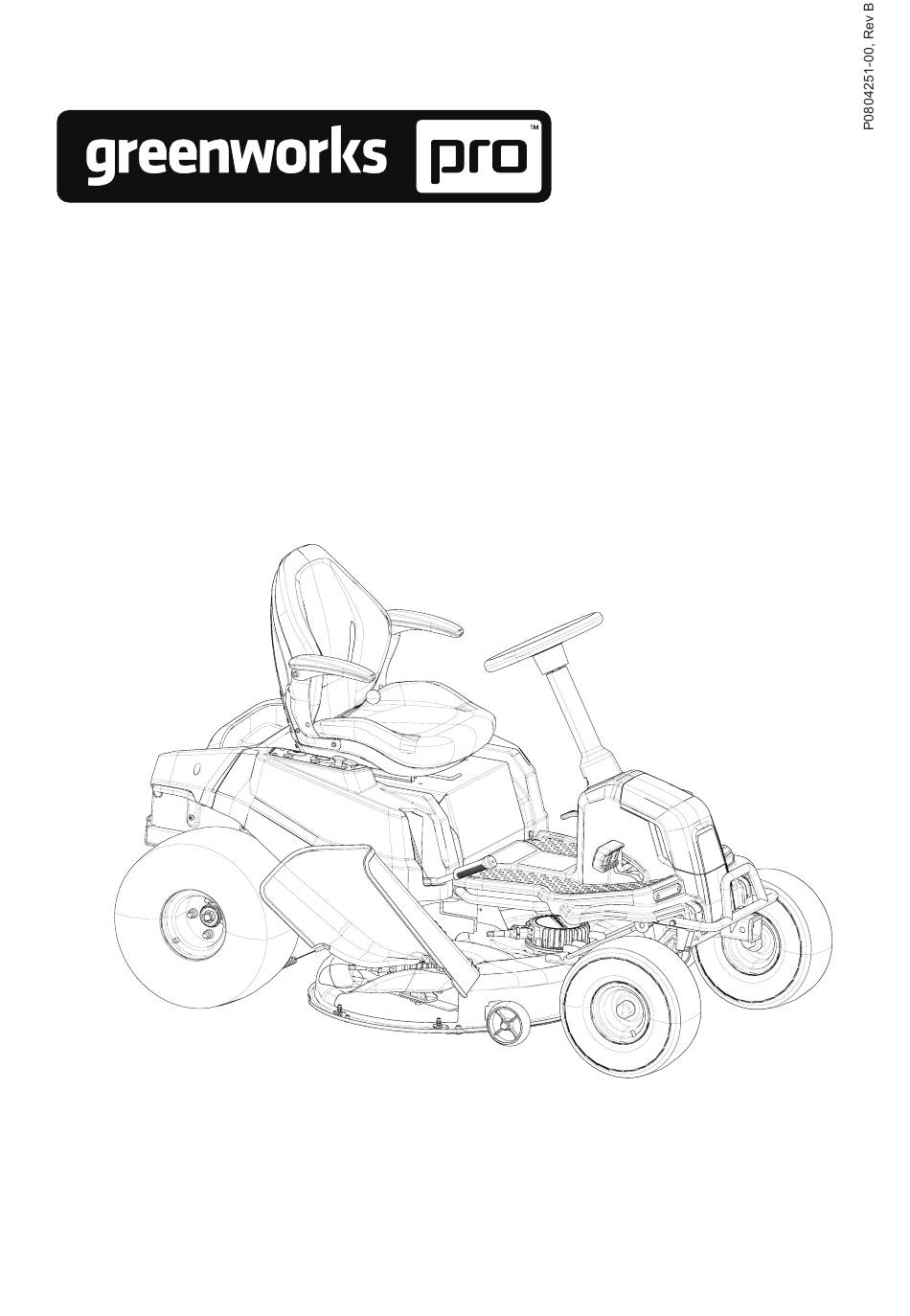

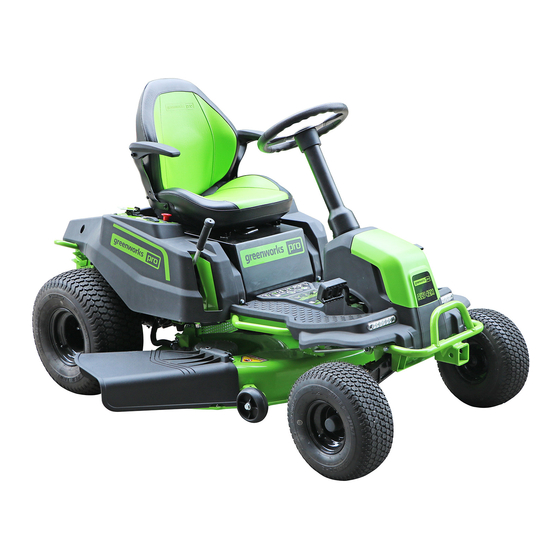

  • Page 1 7400707AU CRT426 LAWN VEHICLE OPERATOR MANUAL www.greenworksaustralia.com support@greenworksaustralia.com...
  • Page 3 QR CODE 42” CrossoverT Tractor www. Multi-Battery 6-in-Parallel greenworksaustralia. 7400707AU 7400707AU CRT426 60-volt Kitted 60V • WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference.
  • Page 4 HELPLINE: For the contact, support@greenworksaustralia.com TRANSPORTATION CHARGES: Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the purchaser. It is the purchaser’s responsibility to pay transportation chares for any part submitted for replacement under this warranty unless such return is requested in writing by Greenworks.

  • Page 5: Table Of Contents

    English Registration and Login........14 Risk levels...........2 Add a device............ 16 Read all instructions......2 GPS function............17 Operator............. 2 Fault code......... 20 Machine............. 2 10 Maintenance........27 Mowing area............3 Mowing..............3 10.1 Tires..............27 Servicing............3 10.2 Mower blade maintenance.......27 Child safety............3 10.3 Replace the headlight........28 Use a ramp............

  • Page 6: Risk Levels

    English RISK LEVELS WARNING • Carefully read all instructions on the mower and in the The following signal words and meanings are intended to manual before attempting to assemble and operate the explain the levels of risk associated with this product. mower.

  • Page 7: Mowing Area

    English • Follow daily and weekly checklists, making sure • Slow down before turning. electrical connections are secured and bolts are tightened. • Do not mow in reverse unless absolutely necessary. • Replace damaged parts immediately. • When moving in reverse, SLOWLY pull right and left •...

  • Page 8: Use A Ramp

    English • Use extreme care when approaching blind corners, • Use appliances only with specifically designated battery doorways, shrubs, trees, or other objects that may obscure packs. Use of any other battery packs may create a risk of your view of a child who may run into the path of the injury and fire.

  • Page 9: Environmentally Safe Battery Disposal

    English ENVIRONMENTALLY SAFE Symbol Name Explanation BATTERY DISPOSAL Precautions that involve Safety Alert your safety. Ingress Pro- Protection from splashing IPX4 tection De- water. gree Read Opera- To reduce the risk of injury, tor’s Manual user must read and under- stand operator’s manual be- The toxic and corrosive materials below are in the batteries fore using this product.

  • Page 10: Overview

    English OVERVIEW 5.3.1 CONTROL PANEL Name Function Power The power switch is used to turn the switch with mower on and off. The start key must be start key inserted before the switch can be operat- Digital dis- This display shows important electrical play system information.

  • Page 11: Unpack The Machine

    English 2. Connect the seat plug to the machine. WARNING 3. Install the washers and nuts and tighten securely. Do not put in the safety key or the battery pack until you finalised the assembly of all the parts. 4. Attach the sleeve to the nut. 5.

  • Page 12: Install The Accessories

    English 6.4.1 INSTALL THE MULCH COVER Model cover plate Bolt Washer Bolt Bolt Steering wheel Mulch cover Bearing ring Bracket Washer Bracket Steering column Bolt Bolt The mower is configured for side discharge when shipped. If mulching is desired: Slot 1.

  • Page 13: Operate The Machine

    English WARNING Be sure the seat is locked into place before operating the Battery mower. A seat that is not secure can cause the operator to Battery Seat shift and lose control of the mower and result in possible latch death or serious personal injury.
  • Page 14 English WARNING Do not attempt to change the direction of operation while the mower is in motion. Always come to a complete stop before changing the mower direction. WARNING Steering control levers will spring back towards neutral position if you release them, but you still need to control them manually to reach neutral position.
  • Page 15 English 7.2.5 REVERSE MODE OPERATION: 7.2.6 SAFETY INTERLOCK SYSTEM This mower features a Safety Interlock System to protect the operator by shutting off the blades if the operator leaves the • Depress the brake pedal and bring the mower to a seat with the blades running.
  • Page 16 English WARNING NOTE Never use headphones or any electronic device, such as a Always stop mower, allow blades to completely stop, smart phone or tablet, while operating the mower. and remove the start key before cleaning underneath the Distracted operation can result in an accident that could mower.

  • Page 17: App Operation Tips

    English 7.2.10 DIGITAL DISPLAY The function of the digital display, located on the control panel, is to provide electrical system information to the operator. It gives detailed information in the form of pattern, codes and number. 7.2.10. DIGITAL DISPLAY Name Meaning Battery remaining capacity Time signal...

  • Page 18: Registration And Login

    English Serial number Pairing code QR code REGISTRATION AND LOGIN Scan the QR code and download the app and login in. Step 2. Fill in the registration information (with * is required), Step 1. Create an account and then log in. and then click the "next“...
  • Page 19 English Confirm End User License Agreement. Step 3. Confirm User Rights. Step 4.1. Activate the account email, click "Continue". Step 4.2. Open the email and click "Click here" to get to the log in interface.

  • Page 20: Add A Device

    English Step 5. Log in. ADD A DEVICE Step 2. Find category of vehicle according to your device type, Step 1. Add a device of Greenworks tools. then click button “Pair” (Vehicle).

  • Page 21: Gps Function

    English Step 3. Paring by entering serial number + Paring code (Own- Step 4. When you select option “pair manually”, just manually er). input Serial Number + Paring Code Step 5. Review device license agreement and sign it. GPS FUNCTION 1.
  • Page 22 English 2. GPS The machine is equipped with GPS function, you can connect your mobile phone to the machine by the APP. It is convenient to locate your machine and achieve anti-theft effect.
  • Page 23 English This icon shows the position where the vehicle was last con- When click vehicle icon, it will show the device’s name, latest nected on map. latitude and longitude. Click the copy icon to copy the value of latitude and longitude. WARNING The 4G &...

  • Page 24: Fault Code

    English FAULT CODE Display Description Status code Cause Solution CAN communica- tion of left blade CAN communica- Contact the service controller is abnor- tion failure. center for help. mal. The communica- tion module of the The left blade con- Contact the service left blade controller troller fails.
  • Page 25 English Display Description Status code Cause Solution After the vehicle self-inspection After the vehicle function, the seat self-check function, switch is not work- the seat switch is ing (when the per- not working (when Activate the PTO son is not in the the operator is not switch.
  • Page 26 English Display Description Status code Cause Solution "A high-voltage Wrong battery pack Check the battery battery pack is in- applied. Check the pack. serted in the PMU." battery pack. A low-voltage bat- Wrong battery pack tery pack is inser- applied. Check the ted in the PMU.
  • Page 27 English Display Description Status code Cause Solution Poor contact of seat Contact the service Seat switch fails. switch. center for help. A high-voltage bat- tery pack is inser- Battery pack is not Check the battery ML11 ted in the battery applicable.
  • Page 28 English Display Description Status code Cause Solution The left mowing Increase the deck motor is overloa- height and reduce ded. the drive speed. The inside of the Motor stall protec- deck header is MR13/MR14 tion Clear the deck blocked by grass and debris.
  • Page 29 English Display Description Status code Cause Solution The PCBA that Contact the service controls the left ML16、ML18 PCBA failure center for help. blade motor fails. The PCBA that Contact the service controls the right MR16、MR18 PCBA failure center for help. blade motor fails.
  • Page 30 English Display Description Status code Cause Solution The right blade mo- Motor failure tor fails. The 6pin connector Contact the service MR22 between the right center for help. blade motor and the Loose connector left blade controller is loose. The temperature of Power off the ma- the left blade motor ML23...

  • Page 31: Maintenance

    English MAINTENANCE DANGER The blade adapter will come off when the blade cap screw Regular maintenance is the best prevention for costly is removed. Touch-up sharpening can be done with a file. downtime or expensive, premature repair. The following Check the blades for balance following grinding. A pages contain suggested maintenance information and commercial balancing tool is available through most schedules which the operator should follow on a routine...

  • Page 32: Replace The Headlight

    English 4. Loosen the blade nut by turning it counterclockwise (as Contact your Greenworks dealer to replace the lubrication. viewed from bottom of mower) using a 16 mm wrench or NOTE socket (not provided). 5. Remove the blade nut, spacer, blade insulator, and blade. Replace the gearbox oil after you operate the machine for 50 hours for the first time, then replace the oil every 200 6.

  • Page 33: Battery Compartment Filter Maintenance

    English • Charge batteries indoors in a well-ventilated and dry • Clean battery compartment, drive motor compartment, location away from sparks or flames. Never expose mower deck, seat, etc., of all dirt and debris. To clean, use charger to rain, vapor or liquid. only compressed air.

  • Page 34: Transportation

    English TRANSPORTATION WARNING Use extra care when loading or unloading the machine into a trailer. Press the low speed drive button and carefully move the drive levers as needed to control the speed. Always back onto the trailer when loading. When loading or unloading the mower, do not exceed the maximum recommended operation angle of 15°.

  • Page 35: Store The Machine

    English • Remove quick-coupler from garden hose and store for future use. • Turn off the mower completely. See section "STOPPING THE ELECTRIC ZERO TURN MOWER". 12.2 STORE THE MACHINE The following steps should be taken in order to prepare the machine for storage.
  • Page 36 English Problem Cause Solution Sudden break- 1. The battery is out of power. 1. Make sure at least one Greenwoks designed bat- down during tery pack is inserted in the battery compartment. 2. The seat switch is disconnected on rugged or driving.
  • Page 37 English Problem Cause Solution The machine vi- 1. The blade is loose. 1. Grind the blade according to the manual. brates too much. 2. The blade is bent. 2. Replace the bent blade, replace the blade accord- ing to the instructions in the manual, and wear 3.
  • Page 38 English Problem Cause Solution Wheel steering 1. The transmission gear is worn for a long time. Check if the nut is loose. If the nut is tight, adjust the fails. nut until the wheel steers correctly. (See figure be- 2. The steering ball joint bolts are loose. low) Nut M8 Nut M8...

  • Page 39: Technical Data

    English TECHNICAL DATA Model No. CRT426 Voltage 60 V Gross vehicle weight 207kg (456lbs) Length 1890mm (74.4in) Height 1334mm (52.5in) Width (with discharge) 1113mm (43.8in) Deck width 1143mm (45in) Forward speed 13km/h (8mph) Reverse speed 4.8km/h (3mph) Cutting height range 38.1~114.3mm (1.5~4.5in) Bucket capacity 91kg (200lbs)

  • Page 40: Greenworks Product Registration

    English under this warranty unless such return is requested in writing by Greenworks. JAK Max address： JAK Max 380 Foleys Road Derrimut VIC 3026 GREENWORKS PRODUCT REGISTRATION: NAME: ADDRESS: CITY： STATE： ZIP CODE： COUNTRY： HOME PHONE: MOBILE PHONE: PURCHASE DATE: PURCHASED FROM:...

  • Page 41: Serial Number(S)

    English SERIAL NUMBER(S) Please list Serial Number(s) below along with Model Information: DESCRIPTION MODEL # PART # SERIAL # DATE PUR- CHASED...
